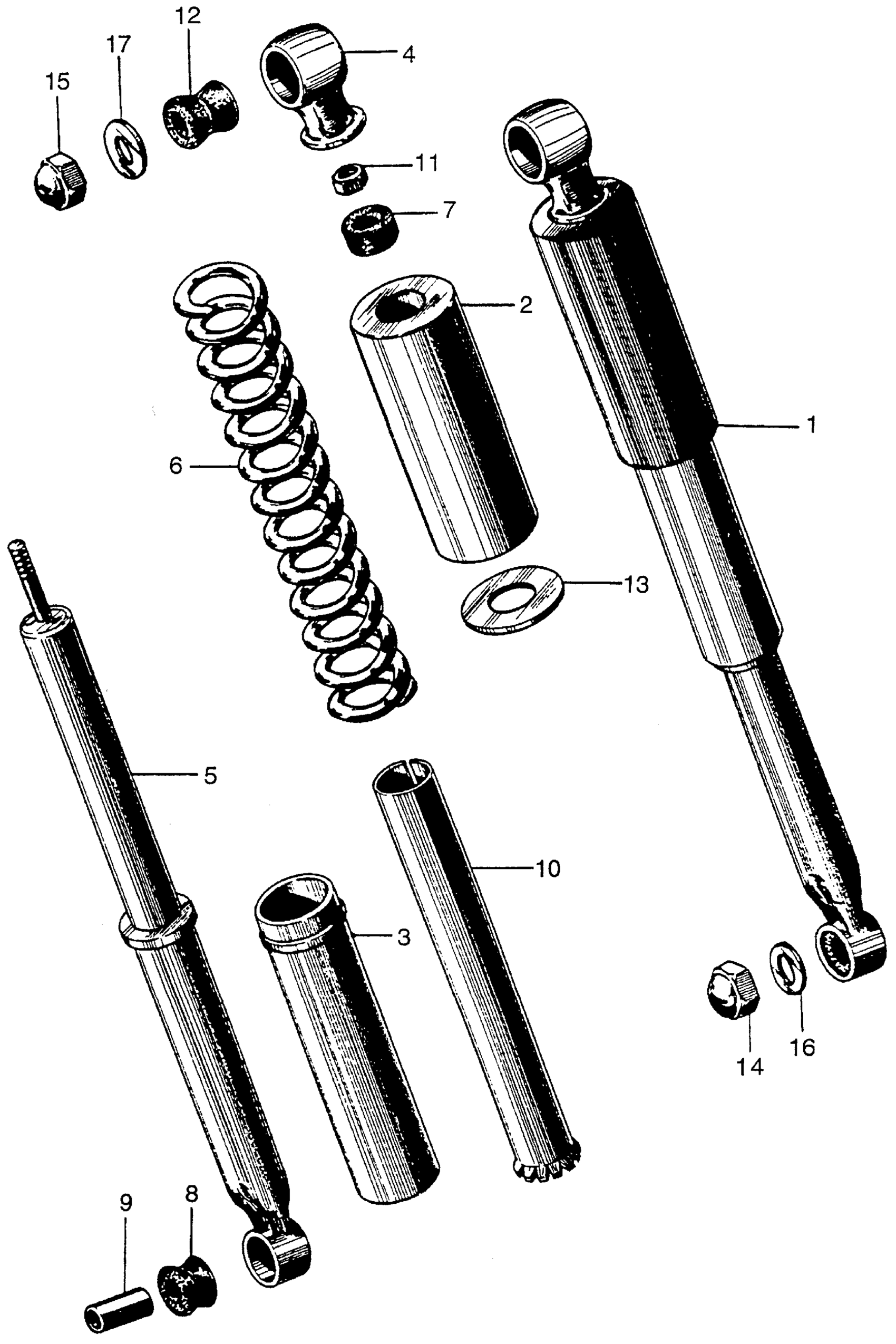

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. *NH1L* (BLACK) (NOT AVAILABLE)

52400-034-000A

Unavailable

1

SHOCK ABSORBER ASSY., RR. *NH1* (BLACK)

52400-034-000B

Unavailable

1

SHOCK ABSORBER ASSY., RR. *R2* (SCARLET) (NOT AVAILABLE)

52400-034-000C

Unavailable

2

CASE, RR. SHOCK ABSORBER (UPPER) *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

52410-034-000A

Unavailable

2

CASE, RR. SHOCK ABSORBER (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

52410-034-000B

Unavailable

2

CASE, RR. SHOCK ABSORBER (UPPER) *R2* (SCARLET) (NOT AVAILABLE)

52410-034-000C

Unavailable

3

CASE, RR. SHOCK ABSORBER (LOWER) (NOT AVAILABLE)

52465-001-040

Unavailable

4

METAL, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52410-033-000

Unavailable

5

METAL, SHOCK ABSORBER (LOWER) (NOT AVAILABLE)

52420-033-000

Unavailable

6

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-034-000

Unavailable

7

RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)

52475-011-000

Unavailable

8

BUSH, RR. SHOCK ABSORBER RUBBER

52476-001-020

$4.92

9

COLLAR, SWINGARM RUBBER BUSH

52486-001-000

$4.85

10

GUIDE, RR. SHOCK ABSORBER SPRING

52409-011-000

Unavailable

11

NUT, RR. SHOCK ABSORBER LOCK (UPPER) (NOT AVAILABLE)

52481-033-000

Unavailable

12

BUSH, SHOCK RUBBER This part replaces 52485-001-010.

52495-098-000

Unavailable

12

BUSH, SHOCK RUBBER

52495-098-000

Unavailable

13

WASHER (24MM) (NOT AVAILABLE)

52492-011-000

Unavailable

14

NUT, CAP (10MM) This part replaces 94021-10020.

94021-10020-0S

$2.08

14

NUT, CAP (10MM)

94021-10020-0S

$2.08

15

NUT, CAP (12MM) (NOT AVAILABLE)

94021-12020

Unavailable

16

WASHER, PLAIN (10MM)

94101-10000

$1.49

17

WASHER, PLAIN (12MM)

94101-12000

$1.49
