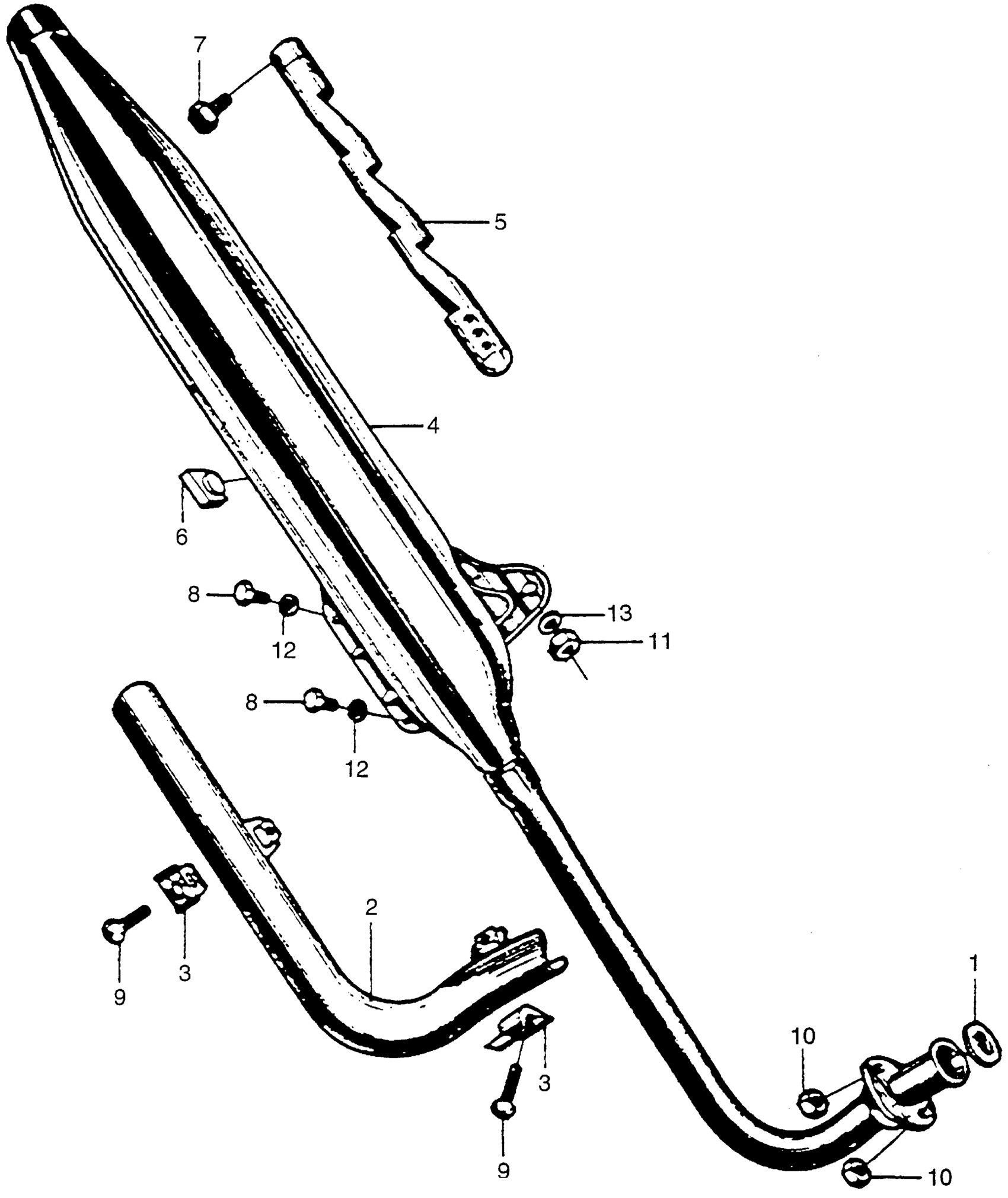

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-028-000.

18291-028-306

$7.30

1

GASKET, EX. PIPE

18291-028-306

$7.30

1

GASKET, MUFFLER (NOT AVAILABLE) | Use up to Frame SN 102448

18391-034-000

Unavailable

2

COVER, EX. | Use up to Frame SN 102448 This part replaces 18240-046-000.

18240-121-730

Unavailable

2

COVER, EX. This part replaces 18240-046-010.

18240-121-730

Unavailable

2

COVER, EX. This part replaces 18240-046-020.

18240-121-730

Unavailable

2

COVER, EX.

18240-121-730

Unavailable

3

BAND B, EX. COVER MOUNT

18272-220-000

Unavailable

4

MUFFLER (NOT AVAILABLE) | Use up to Frame SN 102448 This part replaces 18300-046-000.

18300-046-017

Unavailable

4

MUFFLER (NOT AVAILABLE) This part replaces 18300-046-010.

18300-046-017

Unavailable

4

MUFFLER (NOT AVAILABLE) | Use up to Frame SN 102448

18300-046-017

Unavailable

5

PIPE, EX. DIFFUSER (NOT AVAILABLE)

18301-046-000

Unavailable

6

RUBBER A, STAND STOPPER This part replaces 50524-001-000.

95011-61000

$1.49

6

RUBBER A, STAND STOPPER

95011-61000

$1.49

7

BOLT, HEX. (5X8) This part replaces 92000-05008.

92101-05008-0A

$1.49

7

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

7

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

7

BOLT, HEX. (5X8) This part replaces 92200-05008.

92101-05008-0A

$1.49

7

BOLT, HEX. (5X8) This part replaces 92200-05008-0A.

92101-05008-0A

$1.49

8

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

8

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

8

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

9

SCREW, PAN (5X16) (NOT AVAILABLE)

93500-05016

Unavailable

9

SCREW, PAN (5X16)

93500-05016-0A

$1.49

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

11

NUT, CAP (8MM) This part replaces 94021-08020.

94021-08020-0S

$1.82

11

NUT, CAP (8MM)

94021-08020-0S

$1.82

11

NUT, CAP (8MM) This part replaces 94021-08060-0S.

94021-08020-0S

$1.82

11

NUT, CAP (8MM) This part replaces 94021-08090-0S.

94021-08020-0S

$1.82

11

NUT, CAP (8MM) This part replaces 94022-08020-0S.

94021-08020-0S

$1.82

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

13

WASHER, SPRING (8MM)

94111-08000

$1.49
