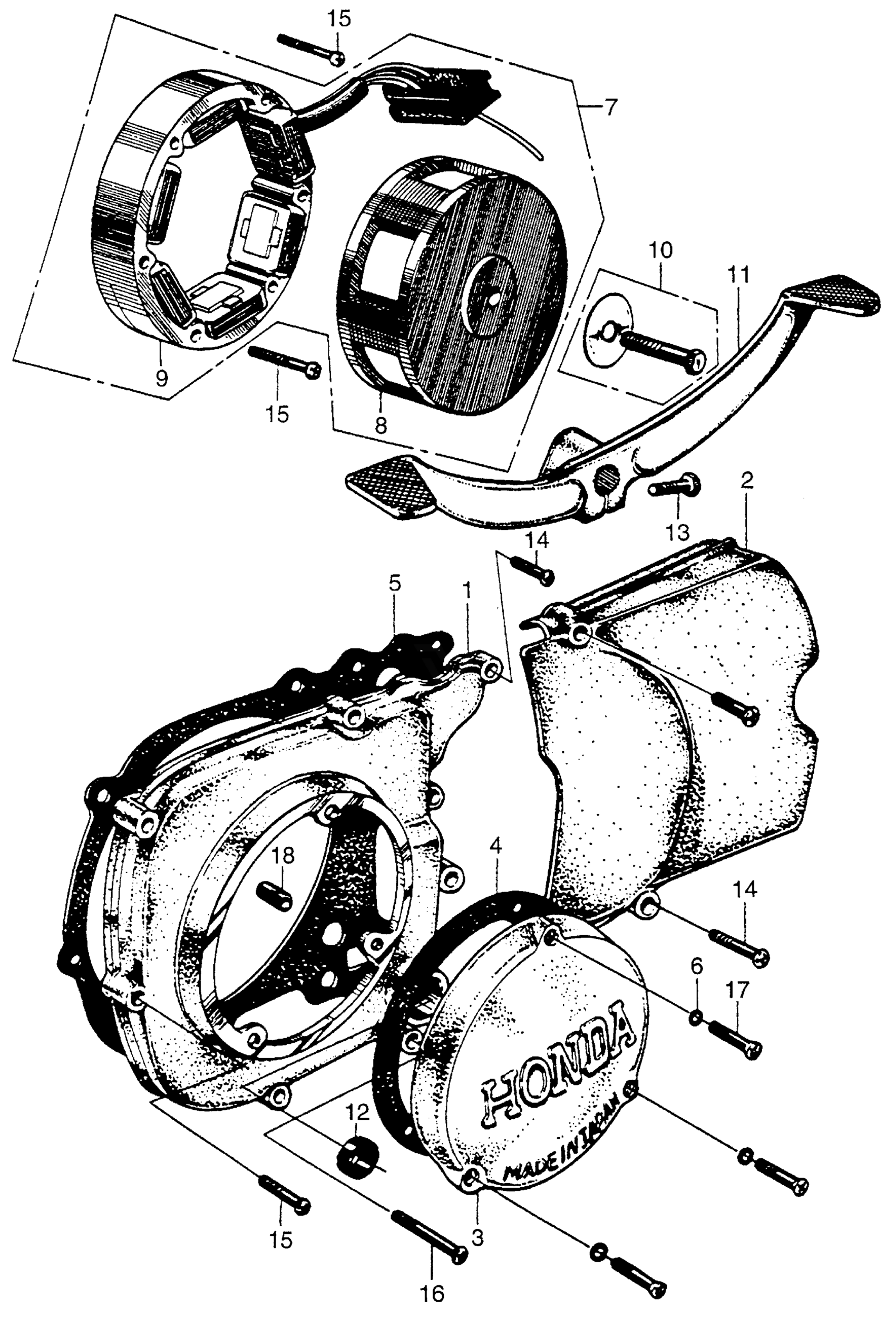

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-052-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-046-000

Unavailable

3

COVER, ALTERNATOR (NOT AVAILABLE)

11431-028-000

Unavailable

4

GASKET, ALTERNATOR COVER This part replaces 11691-028-000.

11691-028-306

Unavailable

4

GASKET, ALTERNATOR COVER

11691-028-306

Unavailable

5

GASKET, L. This part replaces 11394-028-020.

11394-028-307

Unavailable

6

O-RING (5.5X1.5)

91301-216-000

$2.38

7

ALTERNATOR

31100-046-004

Unavailable

8

ROTOR (NOT AVAILABLE)

31101-028-004

Unavailable

8

ROTOR

31101-052-003

Unavailable

9

STATOR ASSY. (NOT AVAILABLE)

31102-046-003

Unavailable

9

STATOR ASSY. (NOT AVAILABLE) This part replaces 31102-046-004.

31102-046-014

Unavailable

9

STATOR ASSY. (NOT AVAILABLE)

31102-046-014

Unavailable

10

BOLT A1, ROTOR This part replaces 31104-028-000.

95015-11100

Unavailable

10

BOLT A1, ROTOR

95015-11100

Unavailable

11

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24701-046-000.

24701-046-010

Unavailable

11

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-046-010

Unavailable

12

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

12

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

12

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

12

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

12

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

13

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

13

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

13

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

14

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

14

SCREW, PAN (6X20)

93500-06020-0A

$1.49

15

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

16

SCREW, PAN (6X35)

93500-06035-0A

$1.49

16

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

17

SCREW, OVAL (6X18) (NOT AVAILABLE)

93700-06018-02

Unavailable

18

PIN A, DOWEL (10X14)

94301-10140

$2.28
