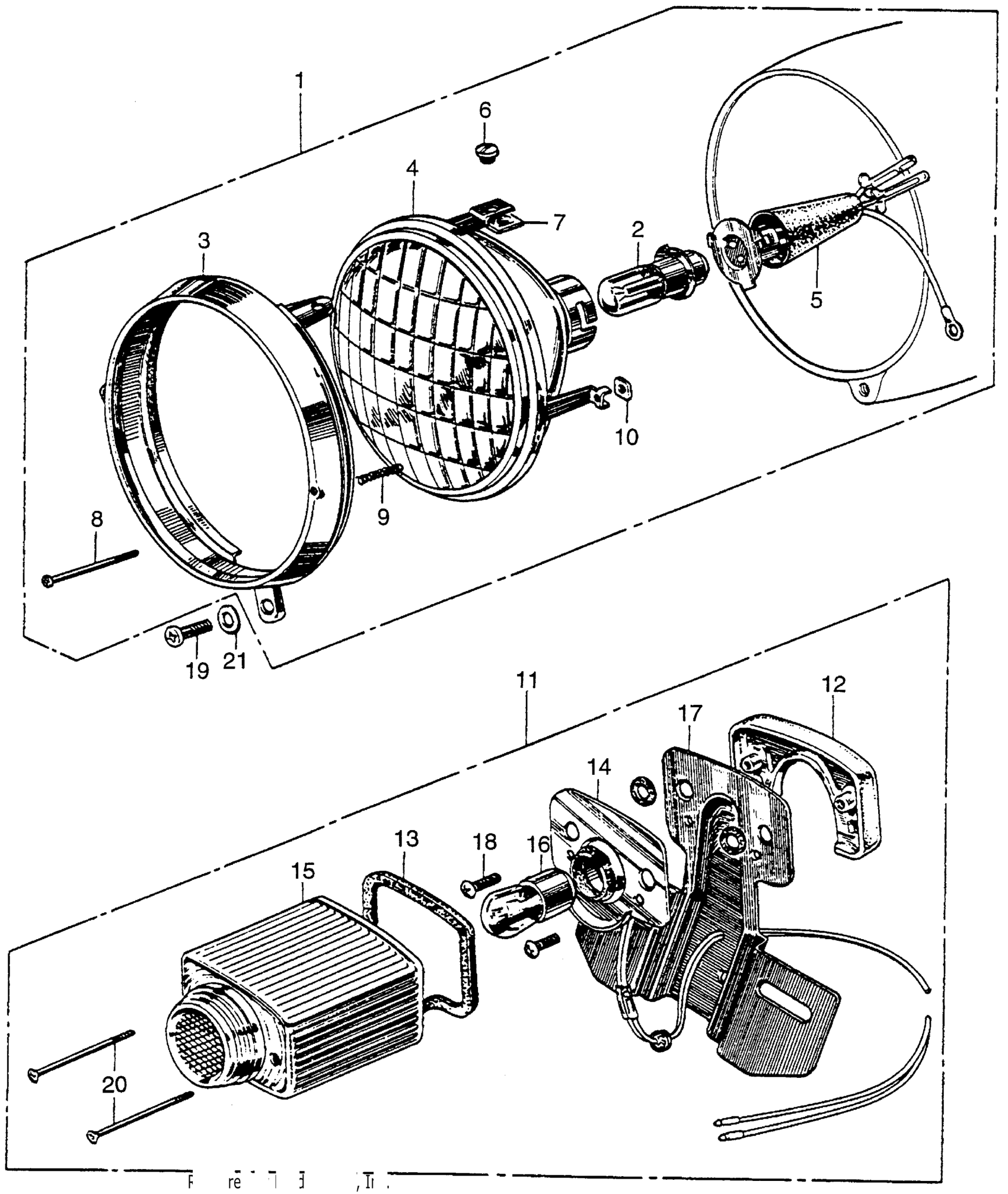

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 HEADLIGHT + TAILLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-034-811

Unavailable

2

BULB, HEADLIGHT (6V25/25W) (STANLEY) This part replaces 34901-030-000.

34901-030-003

$9.57

2

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

2

BULB, HEADLIGHT (6V25/25W) (STANLEY) This part replaces 34901-030-671.

34901-030-003

$9.57

2

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

3

RIM, HEADLIGHT (NOT AVAILABLE) This part replaces 33101-030-000.

33101-030-810

Unavailable

3

RIM, HEADLIGHT (NOT AVAILABLE)

33101-030-810

Unavailable

4

HEADLIGHT UNIT (NOT AVAILABLE) This part replaces 33120-030-000.

33120-030-810

Unavailable

4

HEADLIGHT UNIT (NOT AVAILABLE)

33120-030-810

Unavailable

5

SOCKET, HEADLIGHT (N/A: SEE ASSEMBLY)

33130-028-670

Unavailable

6

SCREW, HEADLIGHT (NOT AVAILABLE)

33125-200-030

Unavailable

7

NUT, UNIT HOLDER This part replaces 33128-200-030.

33128-292-670

$2.94

7

NUT, UNIT HOLDER

33128-292-670

$2.94

8

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE)

33102-001-003

Unavailable

9

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE) This part replaces 33107-001-003.

33107-001-020

Unavailable

9

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-001-020

Unavailable

9

SPRING, HEADLIGHT SETTING This part replaces 33107-030-000.

33107-030-003

$2.54

9

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

10

NUT, HEADLIGHT BEAM ADJ.

33117-001-003

Unavailable

11

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-030-810

Unavailable

13

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33709-030-000

Unavailable

14

SOCKET ASSY., TAILLIGHT (NOT AVAILABLE)

33710-033-000

Unavailable

15

LENS, TAILLIGHT (NOT AVAILABLE)

33701-030-000

Unavailable

16

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

17

BRACKET, NUMBER (NOT AVAILABLE)

84701-030-810

Unavailable

18

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$1.49

18

SCREW, PAN (4X10)

93500-04010-0A

$1.49

18

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

19

SCREW, PAN (5X12)

93500-05012-0B

$1.49

19

SCREW, PAN (5X12) This part replaces 93500-05012-02.

93500-05012-0B

$1.49

20

SCREW, OVAL (3X60) This part replaces 93700-03060.

93700-03060-0A

$0.98

20

SCREW, OVAL (3X60)

93700-03060-0A

$0.98

20

SCREW, OVAL (3X60) This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

20

SCREW, OVAL (3X60) This part replaces 93700-03060-02.

93700-03060-0A

$0.98

21

WASHER, PLAIN (5MM)

94101-05000

$1.49
