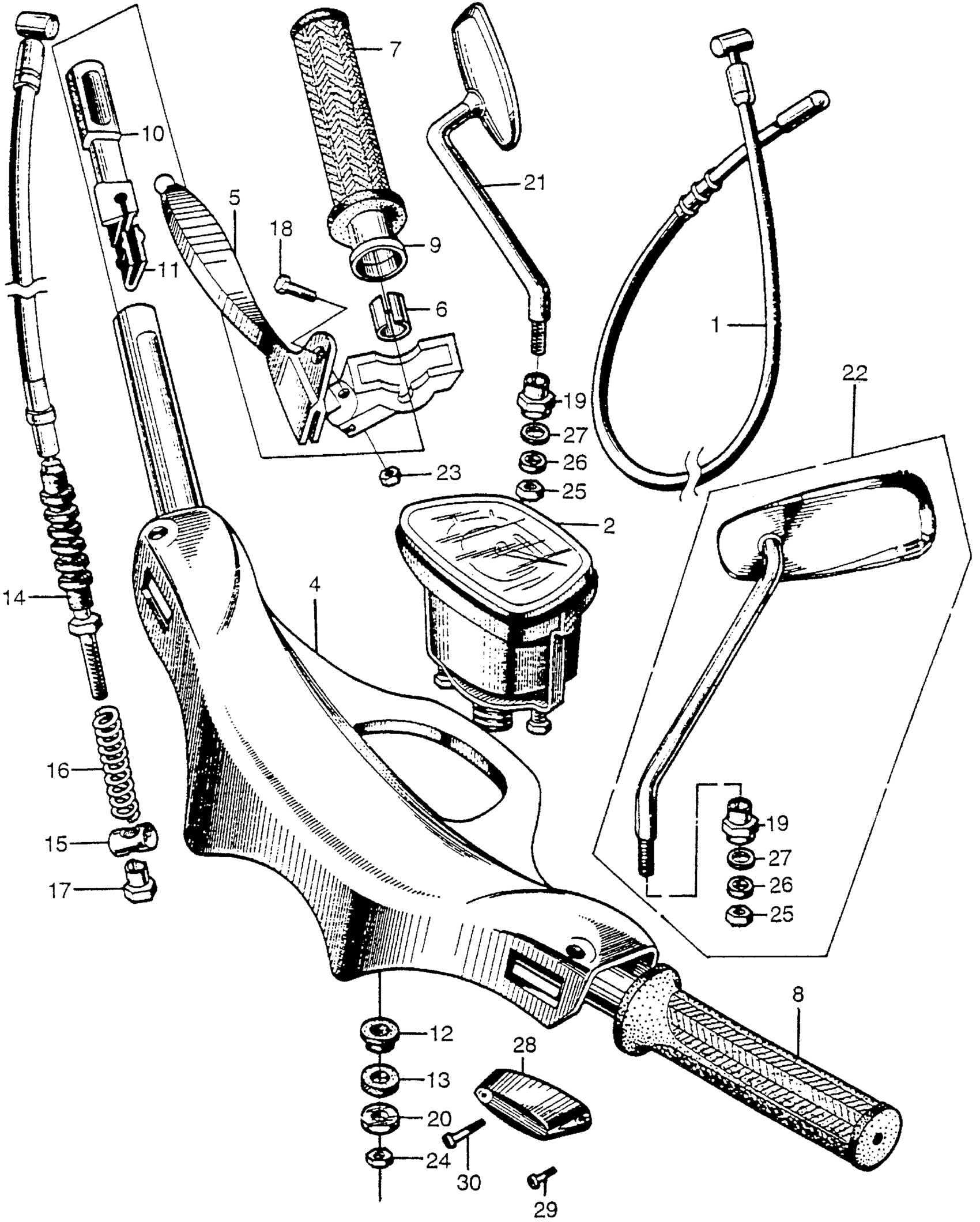

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 HANDLEBAR Diagram

#

Description
Price

1

WIRE, THROTTLE (NOT AVAILABLE)

17910-045-030

Unavailable

1

WIRE, THROTTLE (NOT AVAILABLE) This part replaces 17910-046-000.

17910-045-030

Unavailable

2

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-034-810

Unavailable

3

BULB, SPEEDOMETER (6V1.5W) (STANLEY)

34908-001-000

$5.57

4

HANDLEBAR This part replaces 53100-001-050Z.

53100-040-000Z

Unavailable

4

HANDLEBAR

53100-040-000Z

Unavailable

4

HANDLEBAR

53100-046-000Z

Unavailable

5

LEVER, R. HANDLEBAR (NOT AVAILABLE) This part replaces 53175-001-000.

53175-087-760

Unavailable

5

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-087-760

Unavailable

6

ADJUSTER, THROTTLE GRIP

53163-001-000

Unavailable

7

RUBBER, R. GRIP This part replaces 53165-040-000.

53165-041-000

Unavailable

7

RUBBER, R. GRIP

53165-041-000

Unavailable

8

RUBBER, L. GRIP This part replaces 53166-040-000.

53166-041-000

Unavailable

8

RUBBER, L. GRIP

53166-041-000

Unavailable

9

PIPE, THROTTLE GRIP

53141-034-000

$13.74

10

HINGE, THROTTLE CABLE

53161-033-000

Unavailable

11

HOLDER, THROTTLE CABLE (NOT AVAILABLE)

53162-011-000

Unavailable

12

RUBBER A, CLUTCH CABLE ADJUST (NOT AVAILABLE)

53133-001-000

Unavailable

13

RUBBER B, HANDLE (NOT AVAILABLE)

53134-001-000

Unavailable

14

CABLE FR BRAKE This part replaces 45450-028-000.

45450-107-P00

Unavailable

14

CABLE FR BRAKE This part replaces 45450-034-000.

45450-107-P00

Unavailable

14

CABLE FR BRAKE This part replaces 45450-035-670.

45450-107-P00

Unavailable

14

CABLE FR BRAKE This part replaces 45450-105-000.

45450-107-P00

Unavailable

15

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

15

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

15

JOINT A, BRAKE ARM

95015-31001

$1.53

16

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

17

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-001-000.

95015-41000

$1.49

17

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

17

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

18

SCREW, HANDLE LEVER PIVOT

90114-001-000

Unavailable

19

NUT, BACK MIRROR (NOT AVAILABLE) This part replaces 90314-200-010.

90315-200-000

Unavailable

19

NUT, BACK MIRROR (NOT AVAILABLE)

90315-200-000

Unavailable

20

WASHER, PLAIN (10MM) This part replaces 90518-001-000.

94101-10000

$1.49

20

WASHER, PLAIN (10MM)

94101-10000

$1.49

21

MIRROR, R. This part replaces 88110-001-000.

88110-001-305

Unavailable

21

MIRROR, R.

88110-001-305

Unavailable

21

MIRROR, R. This part replaces 88120-001-810.

88110-001-305

Unavailable

21

MIRROR, R. This part replaces 88120-011-810.

88110-001-305

Unavailable

22

MIRROR, R.

88110-001-305

Unavailable

22

MIRROR, R. This part replaces 88120-001-810.

88110-001-305

Unavailable

22

MIRROR, R. This part replaces 88120-011-810.

88110-001-305

Unavailable

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

24

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

25

NUT, HEX. (8MM) This part replaces 94001-08020.

94001-08020-0S

$1.49

25

NUT, HEX. (8MM)

94001-08020-0S

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

LENS, FR. TURN SIGNAL (NOT AVAILABLE)

33405-005-010

Unavailable

29

SCREW, OVAL (3X10) (NOT AVAILABLE)

93700-03010

Unavailable

30

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

30

SCREW, OVAL (3X25) This part replaces 93700-03025-02.

93700-03025-0B

$1.49
