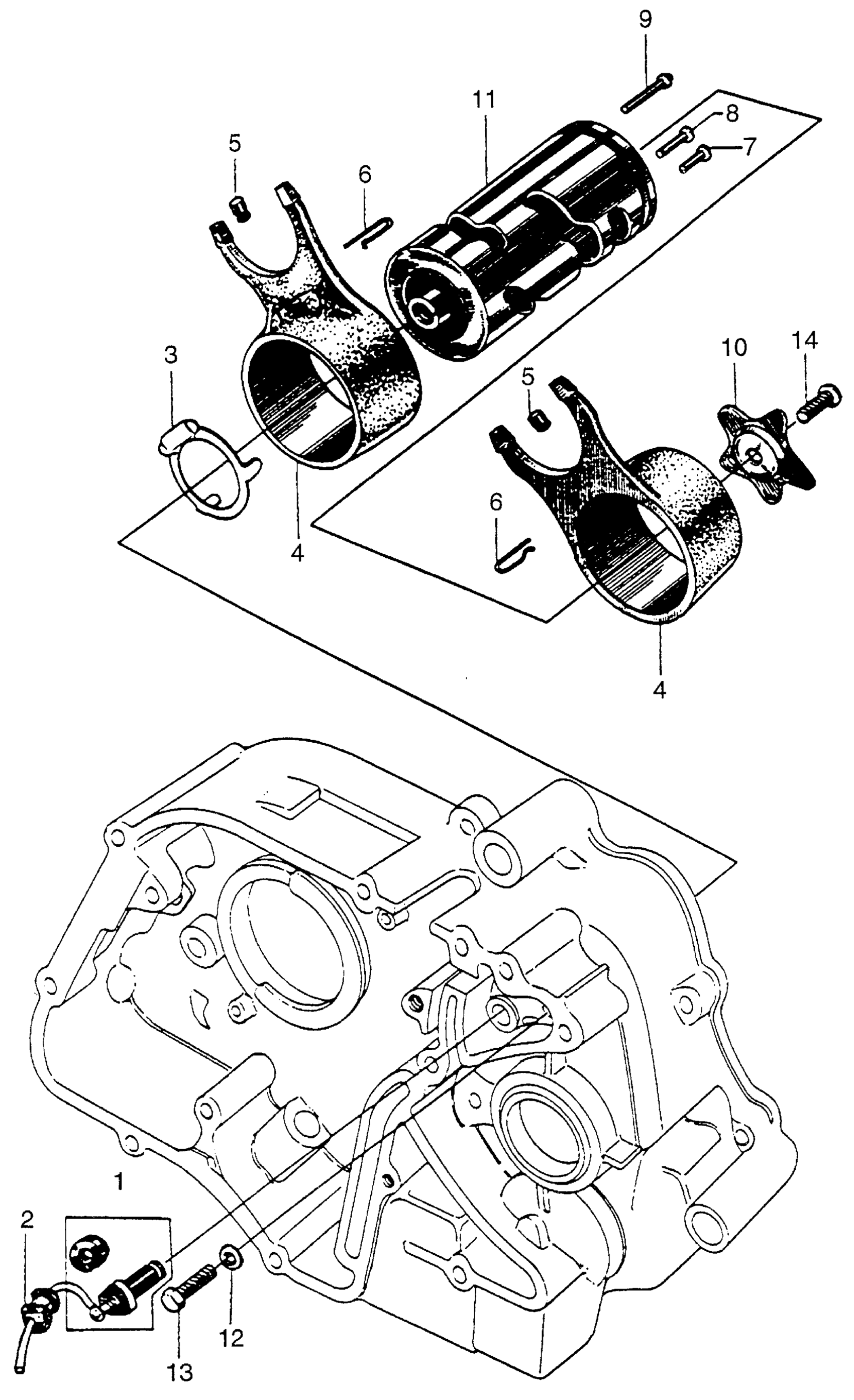

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 GEARSHIFT Diagram

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32981-028-010

Unavailable

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE) This part replaces 35753-028-010.

35753-028-600

Unavailable

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-028-600

Unavailable

FORK, GEARSHIFT (NOT AVAILABLE)

24211-046-000

Unavailable

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-000.

24261-121-742

$2.33

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

PIN, GEARSHIFT FORK GUIDE

24261-121-742

$2.33

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

PIN B, GEARSHIFT DRUM (NOT AVAILABLE)

24422-001-000

Unavailable

PIN A, GEARSHIFT DRUM (NOT AVAILABLE)

24421-001-010

Unavailable

PIN, SHIFT DRUM (NOT AVAILABLE)

24423-028-000

Unavailable

PLATE, GEARSHIFT DRUM SIDE (NOT AVAILABLE)

24425-028-000

Unavailable

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-046-000

Unavailable

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49
