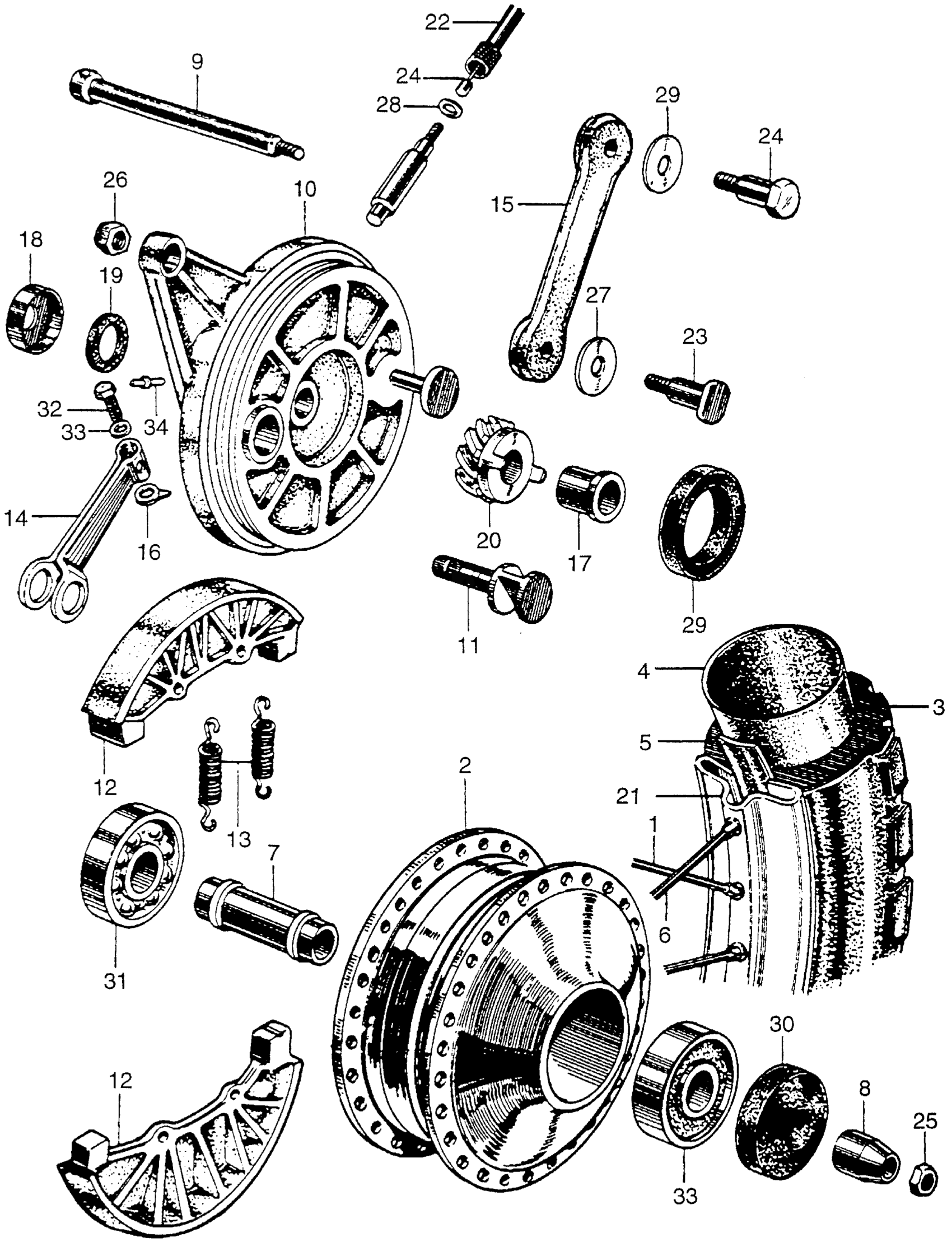

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE A, FR.

44618-001-020

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE)

44601-030-000

Unavailable

3

TIRE, FR. WHEEL (2.50-17) (NITTO) (NOT AVAILABLE)

44711-030-000

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

5

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

5

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

6

SPOKE A (12X162) This part replaces 44660-001-020.

97351-21164-10

$3.21

6

SPOKE A (12X162)

97351-21164-10

$3.21

6

SPOKE A (12X162) This part replaces 97351-21164-12.

97351-21164-10

$3.21

7

COLLAR, FR. AXLE DISTANCE

44620-030-000

Unavailable

8

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-030-000

Unavailable

9

AXLE, FR. WHEEL This part replaces 44301-030-000.

44301-096-650

Unavailable

9

AXLE, FR. WHEEL This part replaces 44301-046-010.

44301-096-650

Unavailable

9

AXLE, FR. WHEEL

44301-096-650

Unavailable

10

PANEL, FR. BRAKE

45100-030-000

Unavailable

11

CAM, FR. BRAKE (NOT AVAILABLE)

45131-030-000

Unavailable

12

SHOE, BRAKE (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

13

SPRING, BRAKE SHOE

45133-028-000

$2.03

14

ARM, FR. BRAKE This part replaces 45410-030-010.

45410-030-315

Unavailable

15

LINK, FR. BRAKE (NOT AVAILABLE)

45431-001-000

Unavailable

16

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

17

SPACER, FR. BRAKE PANEL (NOT AVAILABLE)

45141-030-000

Unavailable

18

CAP, FR. BRAKE PANEL DUST SEAL (NOT AVAILABLE)

45142-030-000

Unavailable

19

RING, FR. BRAKE PANEL FELT (NOT AVAILABLE)

45143-011-000

Unavailable

20

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-030-000

Unavailable

21

RIM, RR. WHEEL This part replaces 42701-030-003.

42701-102-794

$77.20

21

RIM, RR. WHEEL This part replaces 42701-030-006.

42701-102-794

$77.20

21

RIM, RR. WHEEL This part replaces 42701-102-791.

42701-102-794

$77.20

21

RIM, RR. WHEEL This part replaces 44701-030-000.

42701-102-794

$77.20

21

RIM, RR. WHEEL This part replaces 44701-030-003.

42701-102-794

$77.20

21

RIM, RR. WHEEL This part replaces 44701-102-791.

42701-102-794

$77.20

22

CABLE, SPEEDOMETER This part replaces 44830-034-000.

44830-041-000

Unavailable

22

CABLE, SPEEDOMETER

44830-041-000

Unavailable

22

CABLE, SPEEDOMETER This part replaces 44831-034-000.

44830-041-000

Unavailable

23

BOLT, FR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90104-011-000

Unavailable

24

BOLT, FR. BRAKE TORQUE (NOT AVAILABLE)

90126-030-010

Unavailable

25

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

26

NUT, SELF-LOCK (8MM)

90349-001-000

$2.83

27

WASHER (8.3MM)

90534-011-000

$1.49

28

WASHER, SPEEDOMETER PINION

90539-011-000

Unavailable

29

OIL SEAL (47X58X7) This part replaces 91251-030-000.

91251-030-003

Unavailable

29

OIL SEAL (47X58X7)

91251-030-003

Unavailable

30

OIL SEAL (23X37X7) This part replaces 91252-030-000.

91252-030-003

Unavailable

30

OIL SEAL (23X37X7)

91252-030-003

Unavailable

30

OIL SEAL (23X37X7) This part replaces 91252-030-005.

91252-030-003

Unavailable

31

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

31

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

32

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

32

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

33

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

34

FITTING, GREASE (A.45)

96201-30001

$1.49
