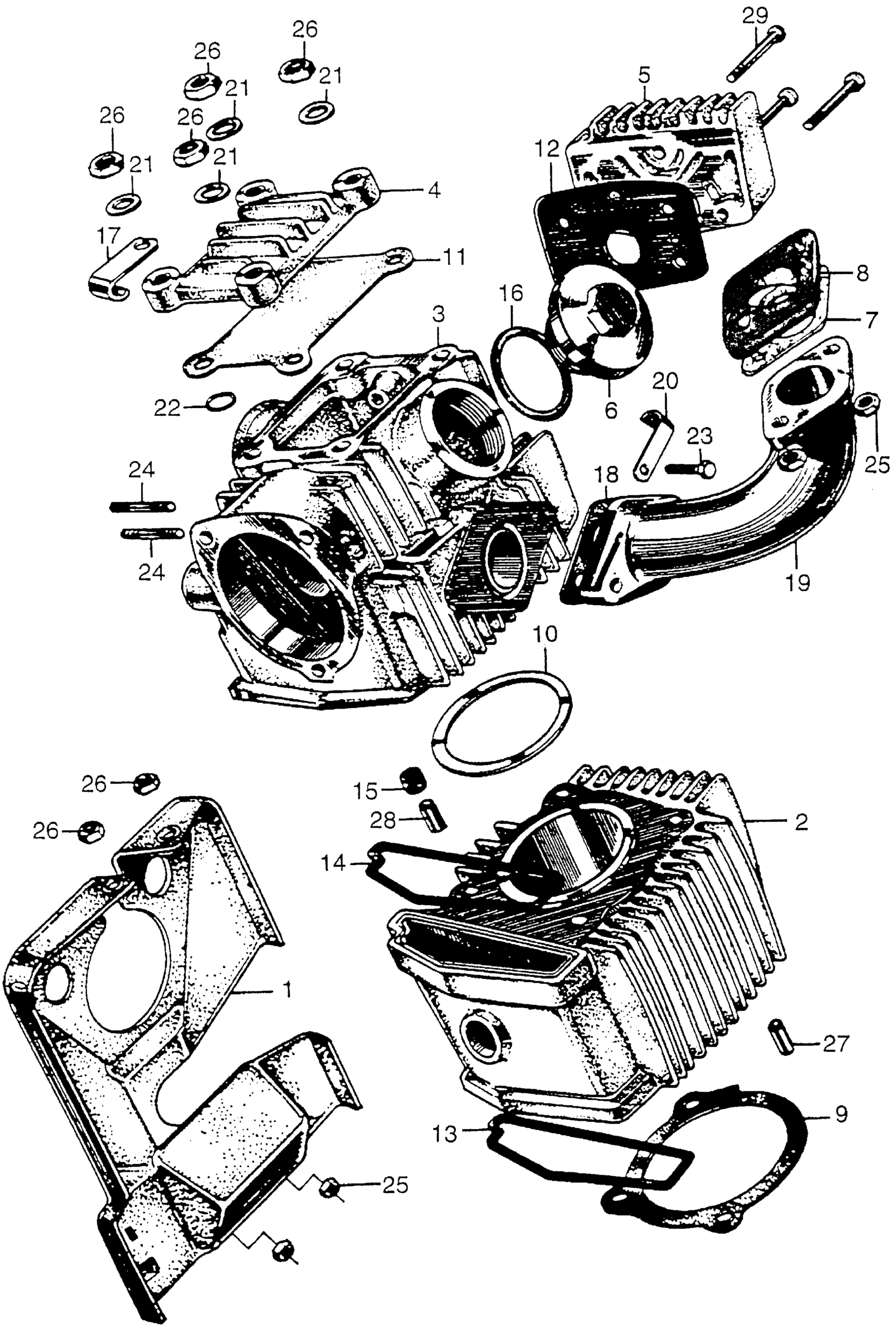

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUARD, DUST (NOT AVAILABLE)

11911-046-000

Unavailable

2

CYLINDER (NOT AVAILABLE) This part replaces 12100-028-120.

12100-028-150

Unavailable

2

CYLINDER (NOT AVAILABLE)

12100-028-150

Unavailable

2

CYLINDER (NOT AVAILABLE) This part replaces 12100-056-670.

12100-028-150

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-028-080.

12200-028-100

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-028-090.

12200-028-100

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-028-100

Unavailable

4

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12301-028-000.

12301-028-010

Unavailable

4

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-028-010

Unavailable

5

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-000.

12331-028-020

Unavailable

5

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-010.

12331-028-020

Unavailable

5

COVER, VALVE ROCKER ARM SIDE

12331-028-020

Unavailable

6

CAP, VALVE ADJ.

12361-028-000

$8.80

7

GASKET, CARBURETOR This part replaces 16201-046-000.

16201-046-306

$1.80

8

INSULATOR, CARBURETOR (NOT AVAILABLE) This part replaces 16211-046-000.

16211-046-306

Unavailable

8

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-046-306

Unavailable

9

GASKET, CYLINDER This part replaces 12191-028-020.

12191-121-630

$7.16

9

GASKET, CYLINDER This part replaces 12191-028-306.

12191-121-630

$7.16

9

GASKET, CYLINDER

12191-121-630

$7.16

10

GASKET, CYLINDER HEAD (NOT AVAILABLE)

12251-028-010

Unavailable

10

GASKET, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12251-028-020.

12251-028-010

Unavailable

11

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-000.

12391-121-630

$5.23

11

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-306.

12391-121-630

$5.23

11

GASKET, CYLINDER HEAD COVER

12391-121-630

$5.23

12

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-010.

12394-121-630

$4.84

12

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-020.

12394-121-630

$4.84

12

GASKET, R. CYLINDER HEAD SIDE COVER

12394-121-630

$4.84

13

GASKET A, CAM CHAIN CHAMBER

12901-028-020

$3.77

14

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-028-020.

12902-121-710

$30.85

14

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-105-690.

12902-121-710

$30.85

14

GASKET B, CAM CHAIN CHAMBER

12902-121-710

$30.85

15

GASKET, CYLINDER STUD This part replaces 12261-028-000.

12261-105-690

$7.96

15

GASKET, CYLINDER STUD

12261-105-690

$7.96

16

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

16

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

16

O-RING (33.5X3.0)

91304-HB3-003

$7.70

17

CLIP, OVERFLOW TUBE (NOT AVAILABLE)

16245-046-000

Unavailable

18

GASKET, IN. PIPE This part replaces 17119-046-000.

17119-046-306

$5.04

18

GASKET, IN. PIPE

17119-046-306

$5.04

19

PIPE, INLET (NOT AVAILABLE)

17111-046-000

Unavailable

20

CLIP, COIL CABLE

32906-028-000

Unavailable

21

WASHER (8MM)

90483-028-000

$1.51

22

O-RING (7.3X2.2) (NOK) This part replaces 91301-PD6-003.

91301-P2F-A01

$2.97

22

O-RING (7.3X2.2) (NOK) This part replaces 91301-PM7-003.

91301-P2F-A01

$2.97

22

O-RING (7.3X2.2) (NOK) This part replaces 91305-028-000.

91301-P2F-A01

$2.97

23

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

24

BOLT, STUD (6X18)

92900-06018-0B

$1.55

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

26

NUT, HEX. (8MM)

94030-08000

$1.49

26

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

27

PIN A, DOWEL (10X14)

94301-10140

$2.28

28

PIN A, DOWEL (10X20)

94301-10200

$2.35

29

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

29

SCREW, PAN (6X20)

93500-06020-0A

$1.49
