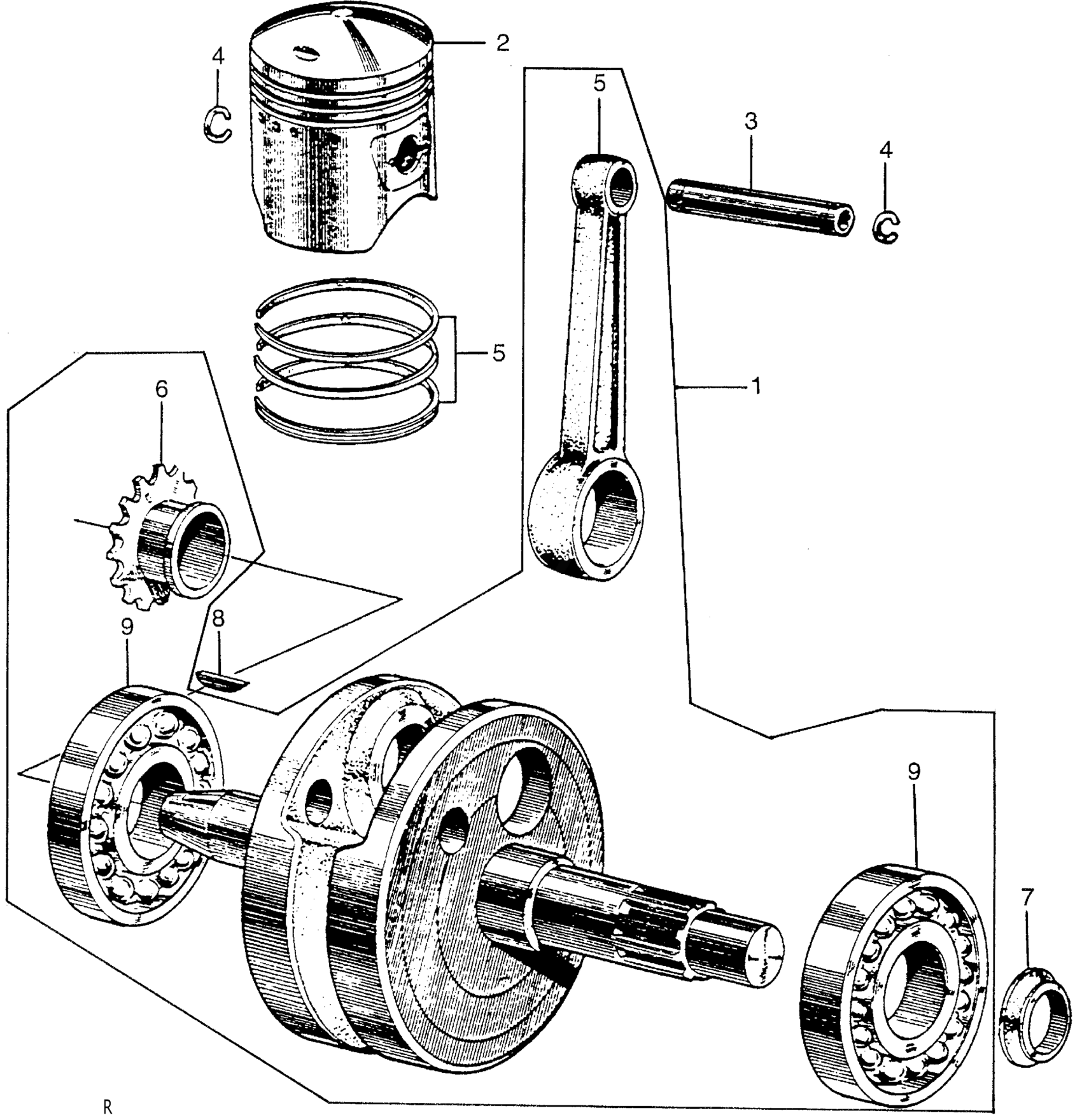

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY.

13000-028-030

Unavailable

2

PISTON (STD) | Use up to Engine SN 166055 This part replaces 13101-028-040.

13101-028-070

Unavailable

2

PISTON (STD) This part replaces 13101-028-050.

13101-028-070

Unavailable

2

PISTON (STD)

13101-028-070

Unavailable

2

PISTON (STD) | Use up to Engine SN 130215 This part replaces 13101-028-323.

13101-028-070

Unavailable

2

PISTON (OS 0.25) | Use up to Engine SN 166055 This part replaces 13102-028-040.

13102-028-070

$37.74

2

PISTON (OS 0.25) This part replaces 13102-028-050.

13102-028-070

$37.74

2

PISTON (OS 0.25)

13102-028-070

$37.74

2

PISTON (OS 0.25) | Use up to Engine SN 130215 This part replaces 13102-028-323.

13102-028-070

$37.74

2

PISTON (OS 0.50) | Use up to Engine SN 166055 This part replaces 13103-028-040.

13103-028-070

Unavailable

2

PISTON (OS 0.50) This part replaces 13103-028-050.

13103-028-070

Unavailable

2

PISTON (OS 0.50)

13103-028-070

Unavailable

2

PISTON (OS 0.50) | Use up to Engine SN 130215 This part replaces 13103-028-323.

13103-028-070

Unavailable

2

PISTON (0.75) | Use up to Engine SN 166055 This part replaces 13104-028-040.

13104-028-070

Unavailable

2

PISTON (0.75) This part replaces 13104-028-050.

13104-028-070

Unavailable

2

PISTON (0.75)

13104-028-070

Unavailable

2

PISTON (0.75) | Use up to Engine SN 130215 This part replaces 13104-028-323.

13104-028-070

Unavailable

2

PISTON (1.00) | Use up to Engine SN 166055 This part replaces 13105-028-040.

13105-028-070

Unavailable

2

PISTON (1.00) This part replaces 13105-028-050.

13105-028-070

Unavailable

2

PISTON (1.00)

13105-028-070

Unavailable

2

PISTON (1.00) | Use up to Engine SN 130215 This part replaces 13105-028-323.

13105-028-070

Unavailable

3

PIN, PISTON

13111-028-000

$11.08

3

PIN, PISTON This part replaces 13111-221-000.

13111-028-000

$11.08

4

CLIP, PISTON PIN

13115-200-000

$1.49

4

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

5

RING SET, PISTON (OS 0.25) | Use from Engine SN 130216

130A1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216

130B1-121-762

Unavailable

5

RING SET, PISTON (0.75) | Use from Engine SN 130216

130C1-121-762

Unavailable

5

RING SET, PISTON (1.00) | Use from Engine SN 130216

130D1-121-762

Unavailable

5

RING SET, PISTON | Use from Engine SN 130216 This part replaces 13010-028-020.

13011-121-762

$23.12

5

RING SET, PISTON | Use from Engine SN 130216 This part replaces 13010-028-025.

13011-121-762

$23.12

5

RING SET, PISTON | Use from Engine SN 130216 This part replaces 13010-028-035.

13011-121-762

$23.12

5

RING SET, PISTON | Use from Engine SN 130216 This part replaces 13010-121-732.

13011-121-762

$23.12

5

RING SET, PISTON | Use from Engine SN 130216

13011-121-762

$23.12

5

RING SET, PISTON (OS 0.25) | Use from Engine SN 130216 This part replaces 13020-028-020.

130A1-121-762

Unavailable

5

RING SET, PISTON (OS 0.25) | Use from Engine SN 130216 This part replaces 13020-028-025.

130A1-121-762

Unavailable

5

RING SET, PISTON (OS 0.25) | Use from Engine SN 130216 This part replaces 13020-028-035.

130A1-121-762

Unavailable

5

RING SET, PISTON (OS 0.25) | Use from Engine SN 130216 This part replaces 13020-121-732.

130A1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216 This part replaces 13030-028-020.

130B1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216 This part replaces 13030-028-025.

130B1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216 This part replaces 13030-028-035.

130B1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216 This part replaces 13030-121-732.

130B1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216 This part replaces 13031-028-005.

130B1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216 This part replaces 13031-102-732.

130B1-121-762

Unavailable

5

RING SET, PISTON (OS 0.50) | Use from Engine SN 130216 This part replaces 13031-102-733.

130B1-121-762

Unavailable

5

RING SET, PISTON (0.75) | Use from Engine SN 130216 This part replaces 13040-028-020.

130C1-121-762

Unavailable

5

RING SET, PISTON (0.75) | Use from Engine SN 130216 This part replaces 13040-028-025.

130C1-121-762

Unavailable

5

RING SET, PISTON (0.75) | Use from Engine SN 130216 This part replaces 13040-028-035.

130C1-121-762

Unavailable

5

RING SET, PISTON (0.75) | Use from Engine SN 130216 This part replaces 13040-121-732.

130C1-121-762

Unavailable

5

RING SET, PISTON (1.00) | Use from Engine SN 130216 This part replaces 13050-028-020.

130D1-121-762

Unavailable

5

RING SET, PISTON (1.00) | Use from Engine SN 130216 This part replaces 13050-028-025.

130D1-121-762

Unavailable

5

RING SET, PISTON (1.00) | Use from Engine SN 130216 This part replaces 13050-028-035.

130D1-121-762

Unavailable

5

RING SET, PISTON (1.00) | Use from Engine SN 130216 This part replaces 13050-121-732.

130D1-121-762

Unavailable

6

SPROCKET, TIMING (15T) (NOT AVAILABLE)

14311-028-010

Unavailable

7

COLLAR (20MM) (NOT AVAILABLE)

22911-046-000

Unavailable

8

KEY, WOODRUFF

90741-253-000

Unavailable

9

BEARING, RADIAL BALL (6305) This part replaces 96100-63050.

96100-63050-00

$15.27

9

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
