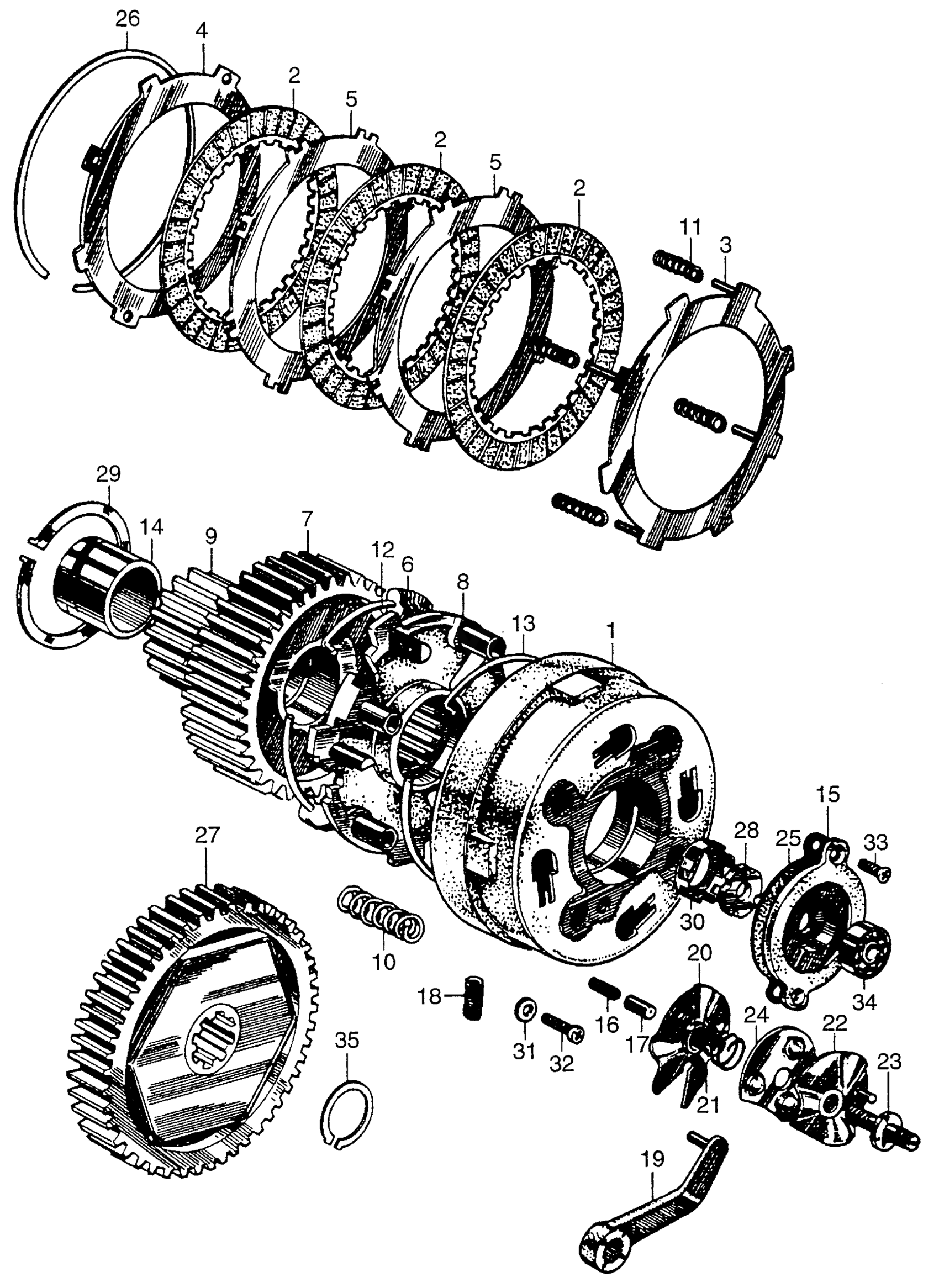

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 121047 This part replaces 22101-046-000.

22101-046-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 162675

22101-046-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 162676 This part replaces 22101-046-020.

22101-046-040

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 162676 This part replaces 22101-046-030.

22101-046-040

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 162676

22101-046-040

Unavailable

2

DISK, CLUTCH FRICTION This part replaces 22201-033-010.

22201-121-631

$17.82

2

DISK, CLUTCH FRICTION This part replaces 22201-046-000.

22201-121-631

$17.82

2

DISK, CLUTCH FRICTION This part replaces 22201-096-000.

22201-121-631

$17.82

2

DISK, CLUTCH FRICTION This part replaces 22201-121-306.

22201-121-631

$17.82

2

DISK, CLUTCH FRICTION

22201-121-631

$17.82

2

DISK, CLUTCH FRICTION This part replaces 22201-121-690.

22201-121-631

$17.82

3

PLATE A, CLUTCH (NOT AVAILABLE) This part replaces 22310-033-000.

22311-046-000

Unavailable

3

PLATE A, CLUTCH (NOT AVAILABLE)

22311-046-000

Unavailable

4

PLATE B, CLUTCH This part replaces 22321-033-000.

22321-046-020

$9.83

4

PLATE B, CLUTCH This part replaces 22321-046-010.

22321-046-020

$9.83

4

PLATE B, CLUTCH

22321-046-020

$9.83

5

PLATE C, CLUTCH This part replaces 22331-033-000.

22331-046-000

$9.37

5

PLATE C, CLUTCH

22331-046-000

$9.37

6

WEIGHT, CLUTCH This part replaces 22531-033-010.

22531-033-020

Unavailable

6

WEIGHT, CLUTCH

22531-033-020

Unavailable

7

CENTER, CLUTCH (NOT AVAILABLE)

22012-046-305

Unavailable

7

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-033-000.

22012-046-305

Unavailable

7

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-046-000.

22012-046-305

Unavailable

8

PLATE, DRIVE (NOT AVAILABLE)

22511-033-010

Unavailable

9

CENTER, CLUTCH (NOT AVAILABLE)

22012-046-305

Unavailable

9

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-033-000.

22012-046-305

Unavailable

9

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-046-000.

22012-046-305

Unavailable

9

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 23111-033-000.

22012-046-305

Unavailable

9

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 23111-046-000.

22012-046-305

Unavailable

10

SPRING, CLUTCH This part replaces 22401-033-020.

22401-046-000

Unavailable

10

SPRING, CLUTCH

22401-046-000

Unavailable

11

SPRING, CLUTCH FREE (NOT AVAILABLE) This part replaces 22411-034-000.

22411-046-000

$3.10

11

SPRING, CLUTCH FREE (NOT AVAILABLE)

22411-046-000

$3.10

12

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.56

13

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.56

14

GUIDE, CLUTCH CENTER This part replaces 22131-028-000.

22131-121-690

Unavailable

14

GUIDE, CLUTCH CENTER

22131-121-690

Unavailable

15

COVER, CLUTCH (OUTER) | Use up to Engine SN 121047 This part replaces 22111-028-000.

22111-028-010

Unavailable

15

COVER, CLUTCH (OUTER)

22111-028-010

Unavailable

16

GUIDE, OIL (NOT AVAILABLE)

25551-033-000

Unavailable

17

THROUGH, OIL This part replaces 25551-040-007.

25551-GEL-A80

$6.02

17

THROUGH, OIL This part replaces 25551-046-000.

25551-GEL-A80

$6.02

17

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

18

SPRING, CLUTCH DAMPER This part replaces 22421-001-000.

22421-035-000

$4.15

18

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

19

LEVER, CLUTCH

22811-046-000

$22.26

20

PLATE, CLUTCH CAM This part replaces 22820-046-000.

22820-046-010

Unavailable

20

PLATE, CLUTCH CAM

22820-046-010

Unavailable

21

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

22

PLATE, CLUTCH LIFTER

22830-046-000

$10.64

23

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22846-046-000

Unavailable

24

RETAINER, CLUTCH BALL This part replaces 22860-041-000.

22860-046-000

$7.04

24

RETAINER, CLUTCH BALL

22860-046-000

$7.04

25

GASKET, CLUTCH COVER This part replaces 22112-028-000.

22112-121-632

$3.60

25

GASKET, CLUTCH COVER This part replaces 22112-028-306.

22112-121-632

$3.60

25

GASKET, CLUTCH COVER This part replaces 22112-121-630.

22112-121-632

$3.60

26

SET-RING (101.5MM) | Use up to Engine SN 162675

22901-001-000

$4.02

26

SET-RING (102.5MM) | Use from Engine SN 162676 This part replaces 22901-028-000.

22901-102-700

Unavailable

26

SET-RING (101.5MM) | Use from Engine SN 135178 to 162675 This part replaces 22901-035-000.

22901-001-000

$4.02

26

SET-RING (102.5MM) | Use from Engine SN 162676

22901-102-700

Unavailable

27

GEAR, PRIMARY DRIVEN (67T)

23110-028-000

Unavailable

28

NUT, LOCK (16MM) This part replaces 90231-023-000.

90231-KCS-651

$4.21

28

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

28

NUT, LOCK (16MM) This part replaces 90231-030-000.

90231-KCS-651

$4.21

28

NUT, LOCK (16MM) This part replaces 90231-200-000.

90231-KCS-651

$4.21

29

CIRCLIP (39MM) (NOT AVAILABLE)

90603-703-010

Unavailable

30

WASHER, LOCKING (16MM) (NOT AVAILABLE)

90431-030-000

Unavailable

31

WASHER, STOPPER This part replaces 90483-001-000.

90483-041-000

$1.92

31

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

31

WASHER, STOPPER

90483-041-000

$1.92

32

BOLT, HEX. (5X8) This part replaces 92000-05008.

92101-05008-0A

$1.49

32

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

32

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

33

SCREW, FLAT (5X12) (NOT AVAILABLE)

93600-05012

Unavailable

34

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

34

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13

35

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49
