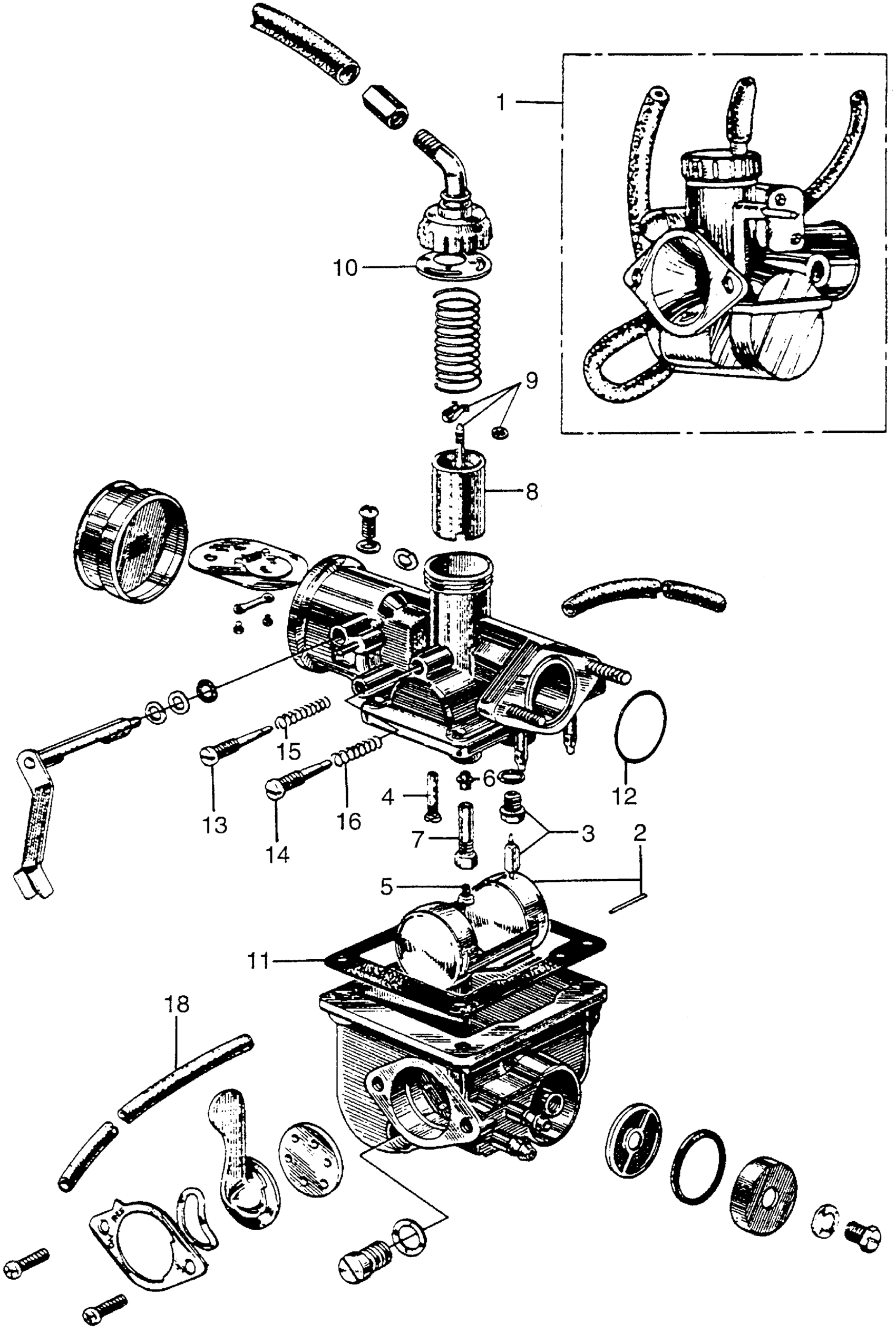

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-046-004.

16100-046-305

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-046-305

Unavailable

2

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

2

FLOAT SET

16013-116-700

$28.61

2

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

2

FLOAT SET This part replaces 16122-201-004.

16013-116-700

$28.61

3

VALVE SET, FLOAT

16011-051-004

$16.40

3

VALVE SET, FLOAT This part replaces 16011-098-004.

16011-051-004

$16.40

3

VALVE SET, FLOAT This part replaces 16011-134-004.

16011-051-004

$16.40

3

VALVE SET, FLOAT This part replaces 16123-011-014.

16011-051-004

$16.40

4

JET, SLOW (#38) (NOT AVAILABLE)

99130-03814

Unavailable

5

JET, MAIN (#72) (NOT AVAILABLE)

99101-07204

Unavailable

6

NEEDLE, JET (NOT AVAILABLE) This part replaces 16133-028-004.

16133-202-004

Unavailable

6

NEEDLE, JET (NOT AVAILABLE)

16133-202-004

Unavailable

7

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-046-004

Unavailable

8

VALVE, THROTTLE (NOT AVAILABLE)

16141-046-004

Unavailable

9

NEEDLE SET, JET (NOT AVAILABLE)

16151-046-004

Unavailable

10

WASHER, TOP (NOT AVAILABLE)

16171-046-004

Unavailable

11

WASHER, FLOAT CHAMBER

16172-046-004

Unavailable

12

O-RING (23X2.4)

16176-001-004

Unavailable

13

SCREW, AIR (NOT AVAILABLE)

16162-107-004

Unavailable

13

SCREW, AIR (NOT AVAILABLE)

16162-202-004

Unavailable

14

SCREW, THROTTLE STOP (NOT AVAILABLE) This part replaces 16163-011-004.

16163-217-004

Unavailable

14

SCREW, THROTTLE STOP

16163-217-004

Unavailable

15

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

16

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

18

TUBE, FUEL (NOT AVAILABLE)

95001-35000-90

Unavailable
