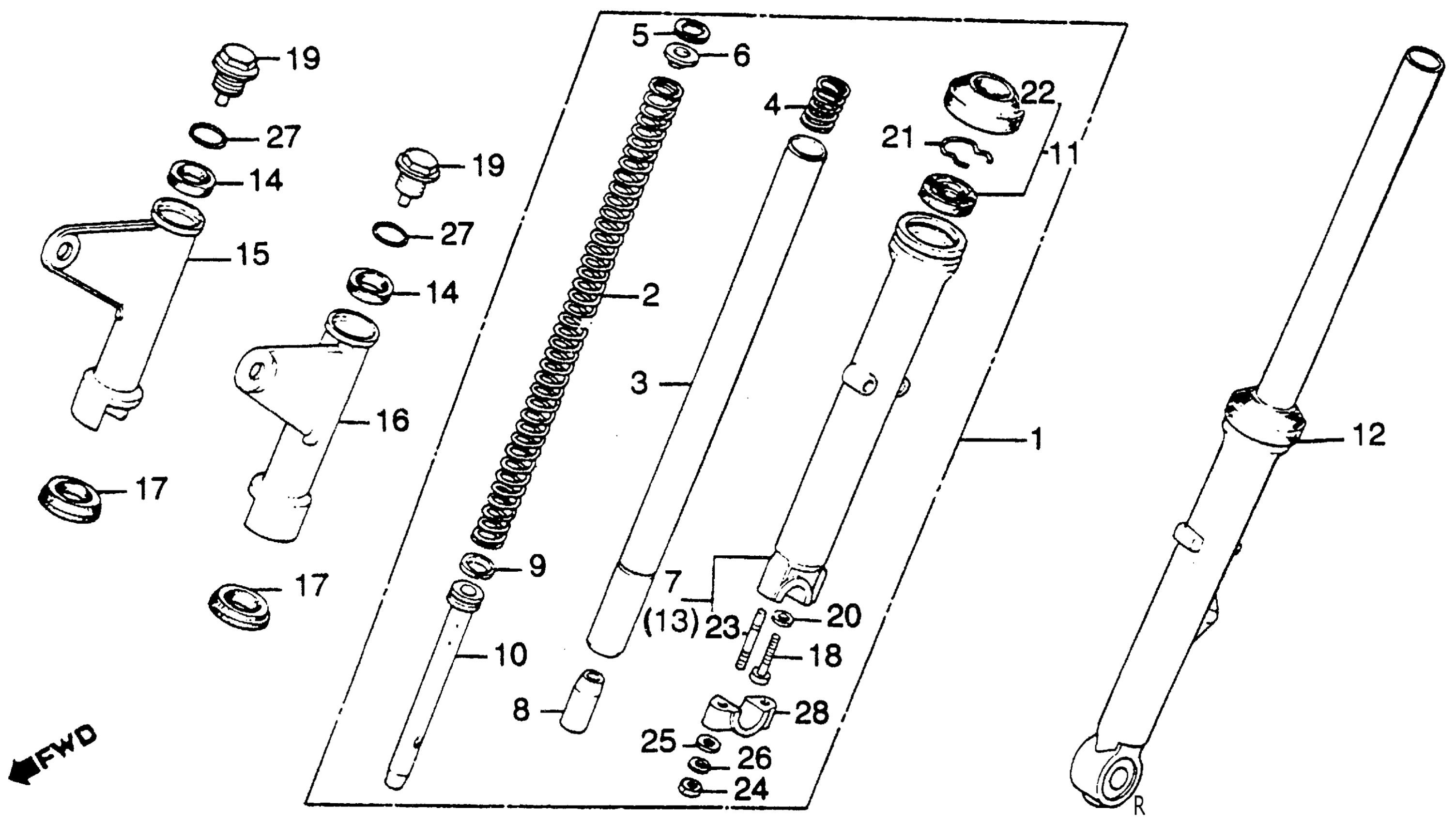

Honda CM450EA (83) MOTORCYCLE, JPN, VIN# JH2PC053-DM100001 TO JH2PC053-DM103228 CM450E FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-442-613

Unavailable

2

SPRING, FR. FORK

51401-443-610

Unavailable

3

PIPE, FR. FORK

51410-413-013

Unavailable

4

SPRING, FR. FORK REBOUND

51412-369-000

$4.94

5

BOLT, FR. FORK (INNER) (NOT AVAILABLE)

51415-413-003

Unavailable

6

SEAT, SPRING (NOT AVAILABLE)

51416-413-013

Unavailable

7

CASE, R. (LOWER) (NOT AVAILABLE)

51421-413-023

Unavailable

8

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

8

PIECE, OIL LOCKING

51432-447-731

$27.42

9

RING, PISTON

51437-413-003

$7.96

10

PIPE, SEAT

51470-443-610

Unavailable

11

SEAL SET, FR. FORK

51490-413-305

Unavailable

12

SHOCK ABSORBER ASSY., L. FR.

51500-447-672

Unavailable

13

CASE, L. (LOWER)

51521-447-672

Unavailable

14

CUSHION, FORK COVER (UPPER) (NOT AVAILABLE)

51601-413-000

Unavailable

15

COVER, R. FR. FORK (NOT AVAILABLE)

51602-413-010

Unavailable

16

COVER, L. FR. FORK (NOT AVAILABLE)

51606-413-010

Unavailable

17

RUBBER B, FR. FORK COVER

51622-317-700

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

19

BOLT, FR. FORK (NOT AVAILABLE)

90123-413-000

Unavailable

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

21

RING, OIL SEAL STOPPER

90601-369-000

$3.47

22

DUST SEAL, FR. FORK

91254-413-881

$25.92

23

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

23

BOLT, STUD (8X50)

92900-08028-3B

$1.59

24

NUT, HEX. (8MM)

94030-08000

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

O-RING (23X2.4)

94608-30000

$1.49

28

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
