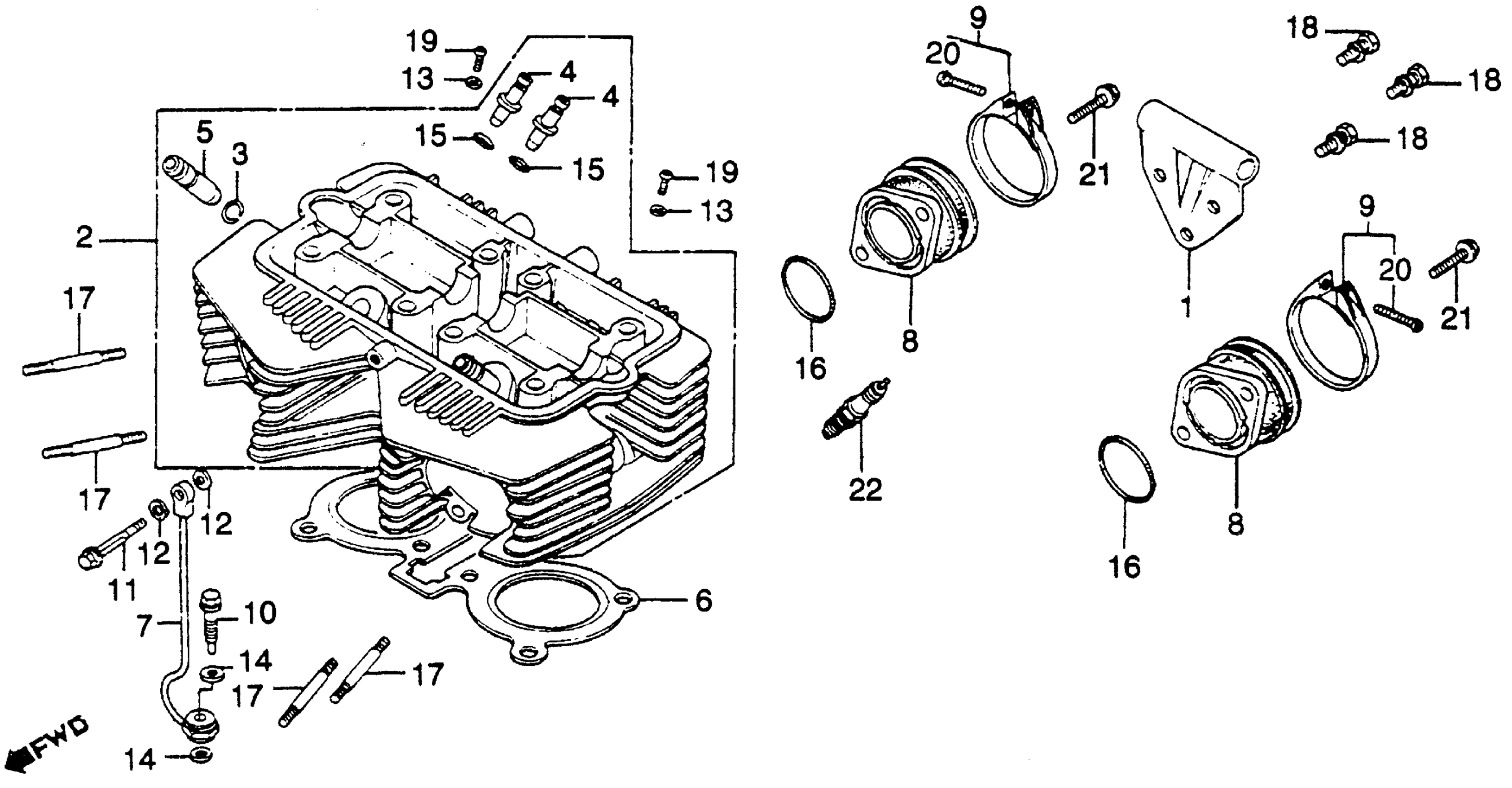

Honda CM450EA (82) MOTORCYCLE, JPN, VIN# JH2PC053-CM000001 TO JH2PC053-CM012034 CYLINDER HEAD Diagram

PLATE, ENGINE HANGER (NOT AVAILABLE)

11851-413-000

Unavailable

CYLINDER HEAD

12200-MC2-000

Unavailable

CLIP, VALVE GUIDE

12211-250-310

$4.39

GUIDE, VALVE This part replaces 12021-426-405.

12204-KW1-405

$11.52

GUIDE, VALVE This part replaces 12231-413-305.

12204-KW1-405

$11.52

GUIDE, EX. VALVE

12241-413-305

Unavailable

GASKET, CYLINDER HEAD This part replaces 12251-MC0-000.

12251-MC0-405

Unavailable

GASKET, CYLINDER HEAD

12251-MC0-405

Unavailable

PIPE B, OIL

15520-MC0-000

Unavailable

INSULATOR, CARBURETOR

16211-447-670

$55.48

BAND, INSULATOR

16219-ME9-000

$10.37

BAND, INSULATOR This part replaces 16223-413-000.

16219-ME9-000

$10.37

BOLT, OIL CONTROL (NOT AVAILABLE)

90045-MC0-000

Unavailable

BOLT, SPECIAL (6X44)

90130-MC0-000

Unavailable

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

WASHER, SEALING (5MM)

90452-323-000

$1.59

WASHER, OIL BOLT (10.2X15X1.4)

90545-MC0-000

$3.39

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (10X1.6)

91301-200-000

$3.01

O-RING (40X2.4)

91325-413-830

$8.72

BOLT, STUD (6X65)

92700-06065-0B

$1.49

BOLT-WASHER (8X20)

93482-08020-08

$2.07

SCREW, PAN (5X8)

93500-05008-0H

$1.49

SCREW, PAN (5X20)

93500-05020-0G

$1.49

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

SPARK PLUG (DR7ES) (NGK) This part replaces 98069-57716.

98069-57719

$2.44

SPARK PLUG (DR7ES) (NGK)

98069-57719

$2.44

SPARK PLUG (X22ESR-U) (DENSO)

98069-57726

$2.44

SPARK PLUG (DR8ES) (NGK) This part replaces 98069-58716.

98069-58719

$2.50

SPARK PLUG (DR8ES) (NGK)

98069-58719

$2.50

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

SPARK PLUG (X27ESR-U) (DENSO)

98069-59726

$2.54
