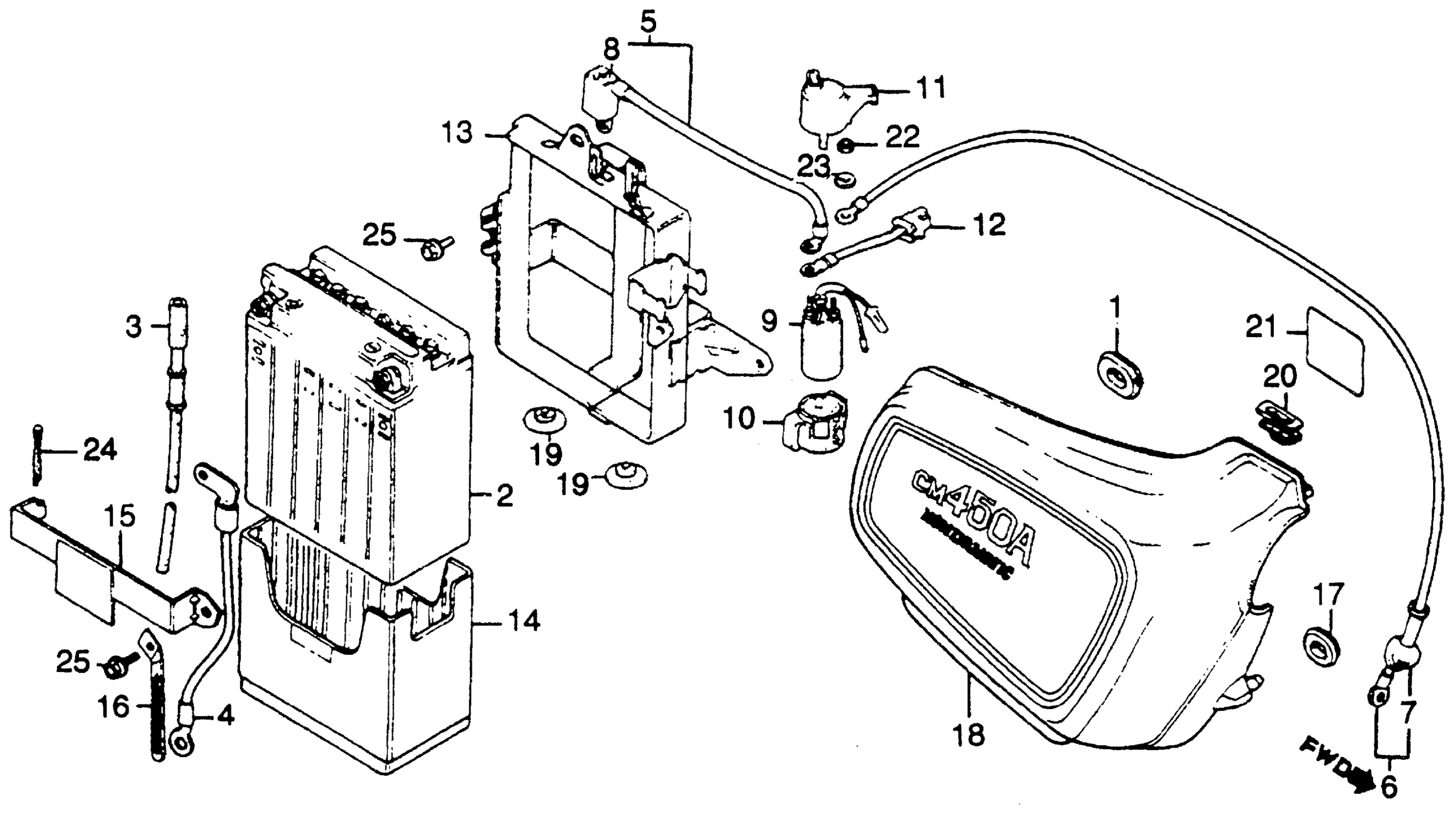

Honda CM450CA (82) CUSTOM, JPN, VIN# JH2PC051-CM000001 TO JH2PC051-CM011076 RIGHT SIDE COVER + BATTERY Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

BATTERY (12V12)

31500-MN2-672

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-601.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-721.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-722.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-941.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-413-942.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-426-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-447-771.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-671.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 31500-460-677.

31500-460-672AH

Unavailable

2

BATTERY (12V12) This part replaces 35100-MN2-673.

31500-460-672AH

Unavailable

3

TUBE BAT,BREATHER This part replaces 31502-473-000.

31502-KG4-405

Unavailable

4

CABLE ASSY., GROUND (NOT AVAILABLE)

32350-447-000

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-447-000

Unavailable

6

CABLE, STARTER MOTOR (NOT AVAILABLE) This part replaces 32410-413-000.

32410-MC9-830

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

8

COVER, TERMINAL (NOT AVAILABLE)

32412-447-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-431-007

Unavailable

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

11

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-413-007

Unavailable

12

CABLE, MAGNETIC SUB (NOT AVAILABLE)

35858-413-000

Unavailable

13

TRAY, BATTERY

50325-MC9-740

Unavailable

13

TRAY, BATTERY This part replaces 50325-447-730.

50325-MC9-740

Unavailable

14

RUBBER, BATTERY (NOT AVAILABLE)

50326-447-000

Unavailable

15

BAND, BATTERY (NOT AVAILABLE)

50327-447-730

Unavailable

17

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

18

COVER, R. SIDE *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

836A4-MC0-670ZA

Unavailable

18

COVER, R. SIDE *PB117CU* (CANDY EMPIRE BLUE) (NOT AVAILABLE)

836A4-MC0-670ZB

Unavailable

19

RUBBER, BATTERY BOX

83618-323-000

$2.47

20

GROMMET, SIDE COVER SETTING

83705-447-000

Unavailable

21

LABEL, BATTERY CAUTION

87506-447-730

Unavailable

22

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

22

NUT, HEX. (6MM)

94002-06080-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

23

WASHER, SPRING (6MM)

94111-06800

$1.49

24

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

24

PIN, COTTER (3.0X45)

94201-30450

$1.49

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
