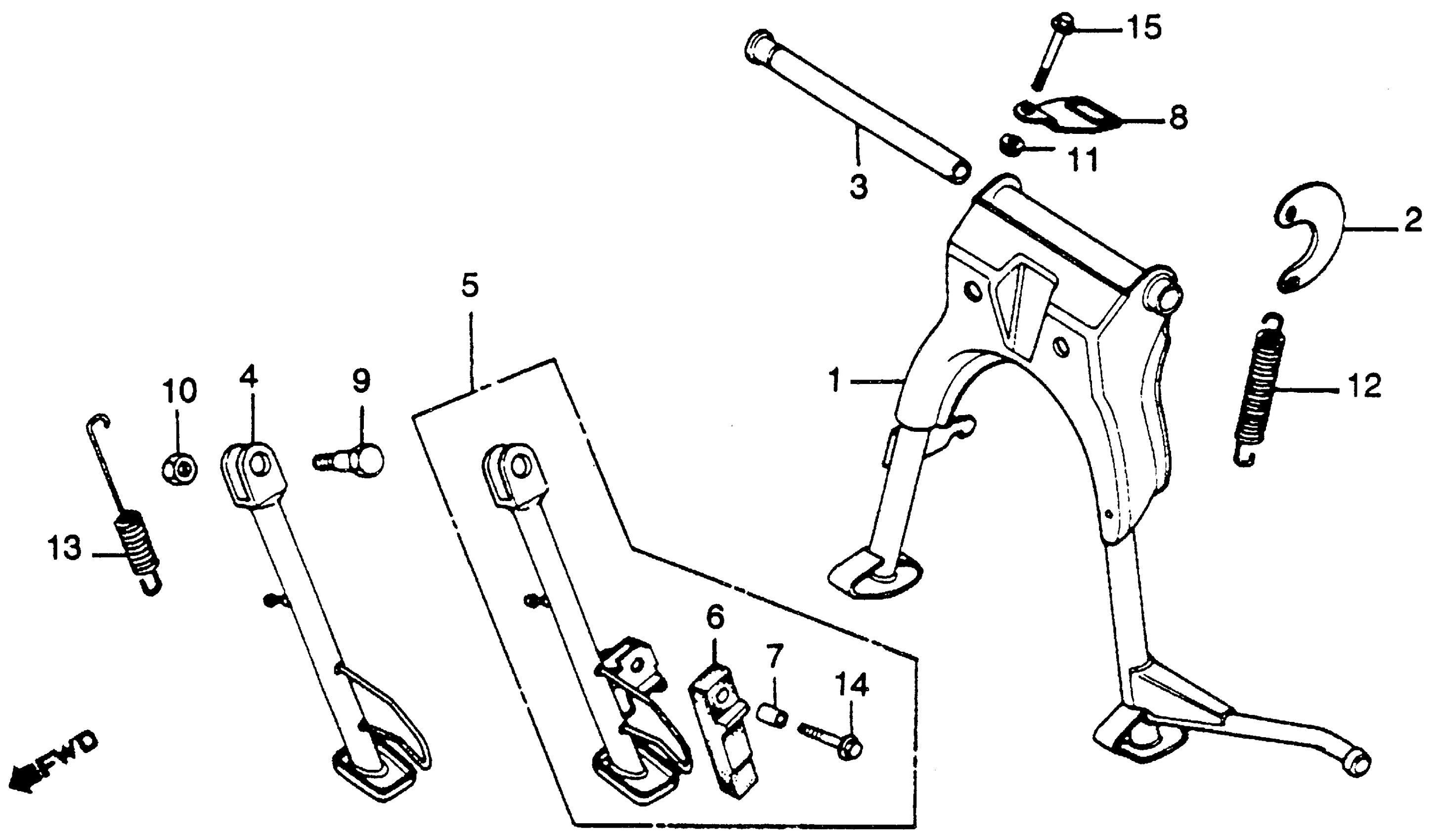

Honda CM450CA (82) CUSTOM, JPN, VIN# JH2PC051-CM000001 TO JH2PC051-CM011076 MAIN STAND + SIDE STAND Diagram

STAND, MAIN (NOT AVAILABLE)

50500-MC0-670

Unavailable

PLATE, MAIN STAND SPRING

50523-413-000

Unavailable

SHAFT, MAIN STAND PIVOT (NOT AVAILABLE)

50526-413-000

Unavailable

STAND ASSY., SIDE (NOT AVAILABLE)

50540-MC0-670

Unavailable

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

GUIDE, OVERFLOW TUBE (LOWER) (NOT AVAILABLE)

50730-414-000

Unavailable

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

NUT, HEX. (10MM)

94031-10000

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

SPRING D, SIDE STAND

95014-72402

$2.92

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
