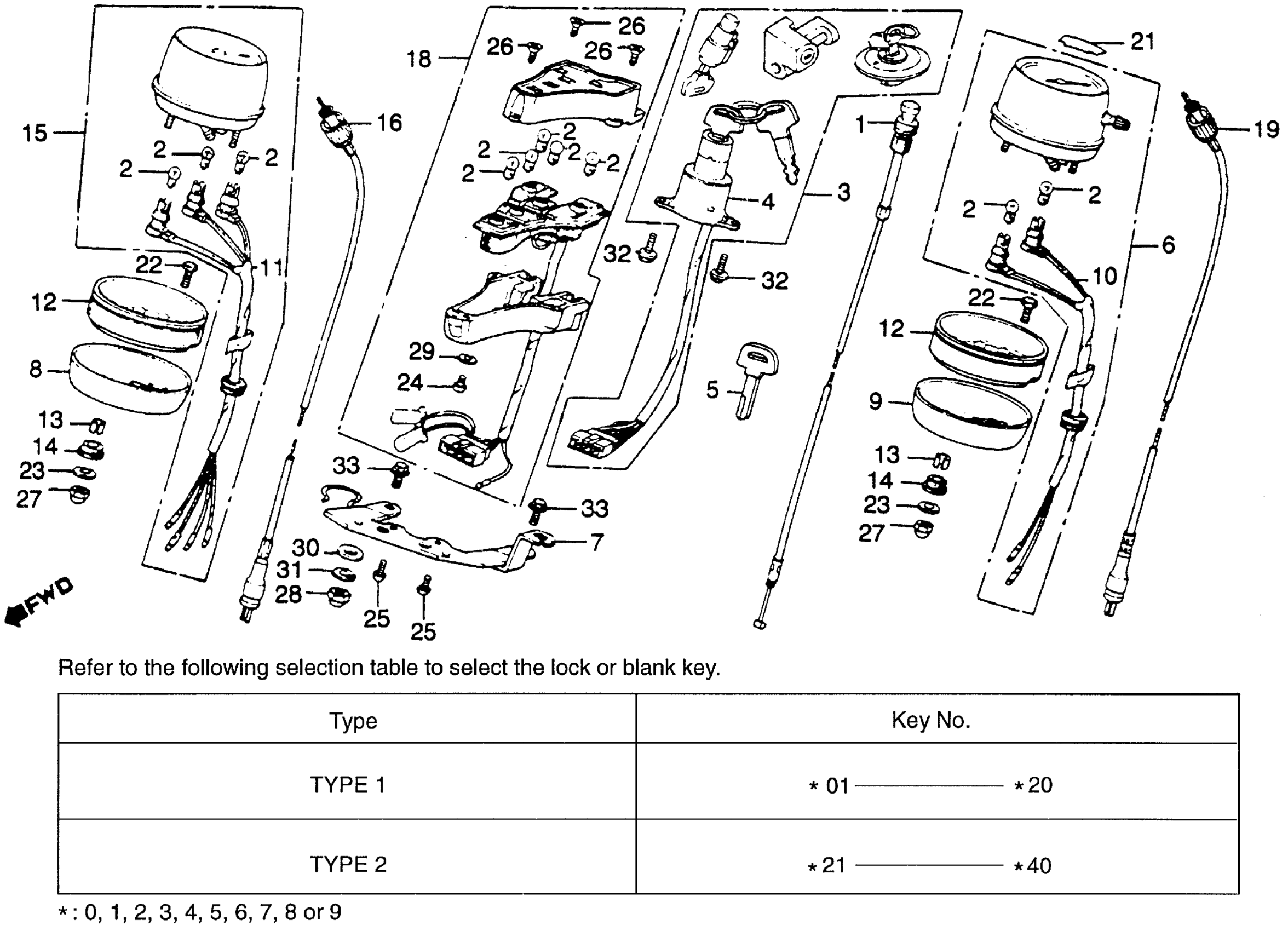

Honda CM450CA (82) CUSTOM, JPN, VIN# JH2PC051-CM000001 TO JH2PC051-CM011076 CM450C INSTRUMENT + KEY SET Diagram

#

Description
Price

1

CABLE, CHOKE This part replaces 17950-447-000.

17950-448-000

Unavailable

1

CABLE, CHOKE

17950-448-000

Unavailable

2

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

2

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

3

LOCK SET (NOT AVAILABLE)

35010-MC0-673

Unavailable

4

SWITCH ASSY., COMBINATION

35100-413-007

Unavailable

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35111-MA6-007.

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-390-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-413-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-413-811.

35122-KW3-771

$10.10

6

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-MC0-670

Unavailable

7

BRACKET, INSTRUMENT (NOT AVAILABLE)

37211-447-000

Unavailable

8

RING, R. METER SETTING

37212-447-000

$39.25

9

RING, L. METER SETTING

37213-447-000

$38.89

10

SOCKET (NOT AVAILABLE)

37223-MC0-670

Unavailable

11

SOCKET (NOT AVAILABLE)

37224-MC0-670

Unavailable

12

RUBBER, METER

37242-323-701

$17.26

13

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

14

RUBBER, METER SETTING

37244-307-670

$2.67

15

TACHOMETER ASSY. (NOT AVAILABLE)

37250-MC0-670

Unavailable

16

CABLE ASSY., TACHOMETER This part replaces 37260-MC9-830.

37260-MC9-860

Unavailable

16

CABLE ASSY., TACHOMETER

37260-MC9-860

Unavailable

16

CABLE ASSY., TACHOMETER This part replaces 37260-413-000.

37260-MC9-860

Unavailable

18

PILOT ASSY., COMBINATION (NOT AVAILABLE)

37600-MC0-670

Unavailable

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-MA1-730.

44830-426-830

$25.47

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-MC0-670.

44830-426-830

$25.47

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-300-672.

44830-426-830

$25.47

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-000.

44830-426-830

$25.47

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-392-000.

44830-426-830

$25.47

19

CABLE ASSY., SPEEDOMETER

44830-426-830

$25.47

21

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

22

BOLT, METER SETTING

90159-356-000

$4.58

23

WASHER (6.5X18)

90545-323-700

$1.89

24

SCREW, PAN (5X6)

93500-05006-0G

$1.49

25

SCREW, PAN (5X10)

93500-05010-0G

$1.49

26

SCREW, TAPPING (4X10)

93902-24280

Unavailable

27

NUT, CAP (6MM)

94021-06020

$1.73

28

NUT, CAP (8MM)

94021-08020-0S

$1.82

29

WASHER, FLAT (5MM)

94101-05700

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

WASHER, SPRING (8MM)

94111-08000

$1.49

32

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

32

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

33

BOLT, FLANGE (8X14) This part replaces 95700-08014-07.

95701-08014-07

$1.49

33

BOLT, FLANGE (8X14)

95701-08014-07

$1.49
