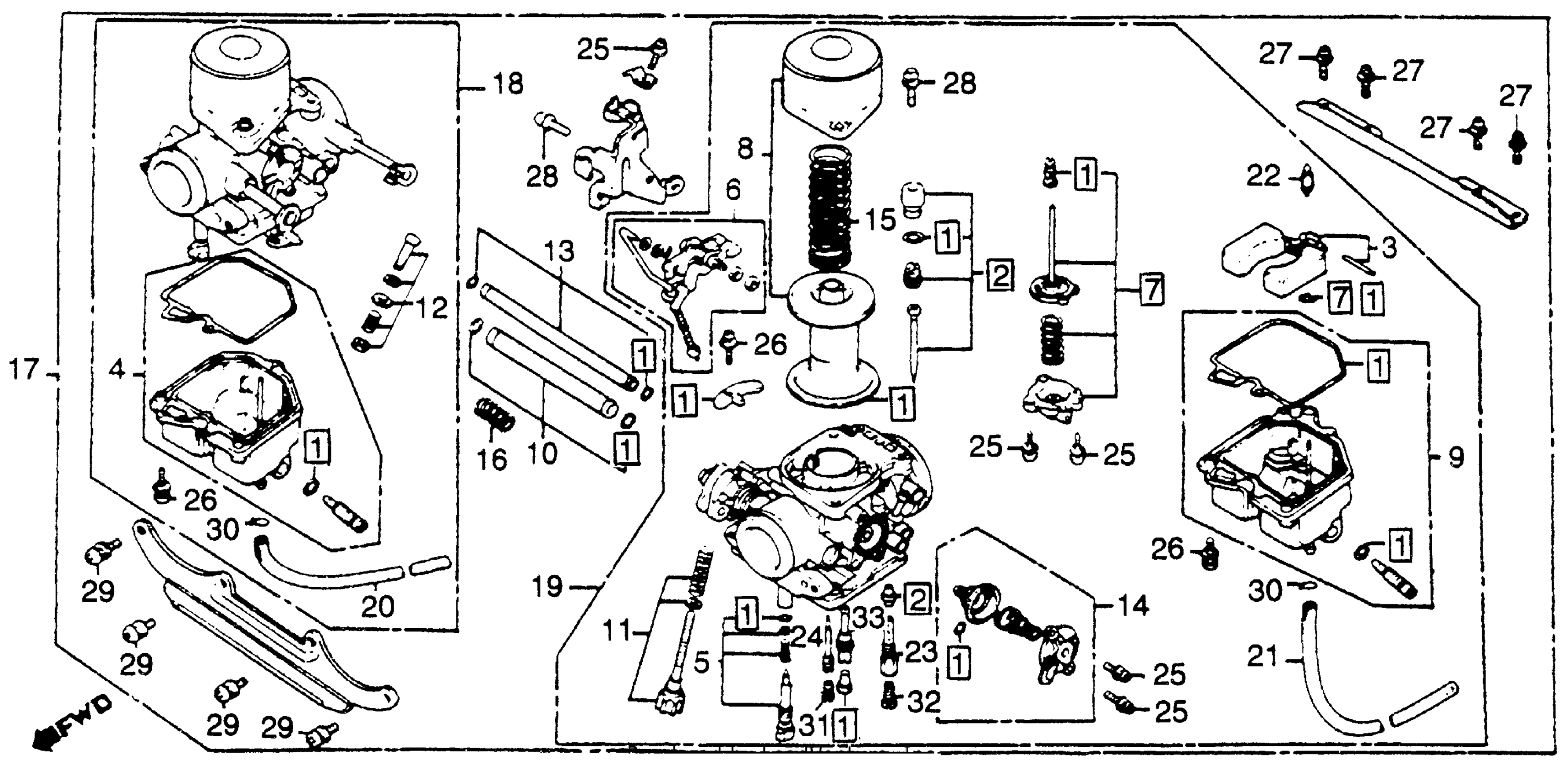

Honda CM450CA (82) CUSTOM, JPN, VIN# JH2PC051-CM000001 TO JH2PC051-CM011076 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-413-405

$57.50

1

GASKET SET This part replaces 16010-413-752.

16010-413-405

$57.50

2

NEEDLE SET, JET

16012-413-751

Unavailable

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

4

CHAMBER SET, FLOAT

16015-425-871

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP

16019-413-751

$50.74

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-438-671

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-413-891.

16022-425-871

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE)

16022-425-871

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-425-671.

16023-425-871

Unavailable

10

JOINT SET, FUEL (NOT AVAILABLE)

16026-413-004

Unavailable

11

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

12

SCREW SET C

16029-PC6-005

Unavailable

12

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

13

JOINT SET, FUEL This part replaces 16037-413-751.

16037-443-851

Unavailable

14

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

15

SPRING, VACUUM PISTON

16050-448-004

Unavailable

16

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

17

CARBURETOR ASSY. (NOT AVAILABLE)

16100-MC0-004

Unavailable

18

CARBURETOR ASSY., R. (NOT AVAILABLE) This part replaces 16101-MC0-004.

16101-MC2-004

Unavailable

19

CARBURETOR ASSY., L.

16102-MC0-004

Unavailable

20

TUBE, FUEL This part replaces 16143-413-751.

16199-KG4-405

$9.49

21

TUBE This part replaces 16144-413-751.

16199-MN5-405

$11.86

21

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

22

VALVE, FLOAT

16155-413-751

$32.50

23

HOLDER, NEEDLE JET

16165-417-004

$24.74

24

NOZZLE, MAIN

16166-447-671

Unavailable

25

SCREW-WASHER (4X12)

93892-04012-00

$1.49

26

SCREW-WASHER (4X16)

93892-04016-00

$1.49

27

SCREW-WASHER (5X12)

93892-05012-00

$1.49

28

SCREW-WASHER (5X16)

93892-05016-00

$1.49

29

SCREW-WASHER (6X14)

93892-06014-00

$1.49

30

CLIP, TUBE (B6.5)

95002-02650

$1.49

31

JET, PRIMARY MAIN (#72) This part replaces 99101-393-0720.

99101-443-0720

Unavailable

31

JET, PRIMARY MAIN (#72)

99101-443-0720

Unavailable

32

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.77

32

JET, SECONDARY MAIN (#115)

99101-MAZ-1150

$8.77

32

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.77

32

JET, MAIN (#115) This part replaces 99102-393-1150.

99101-MAZ-1150

$8.77

33

JET, SLOW (#38)

99103-420-0380

$10.80
