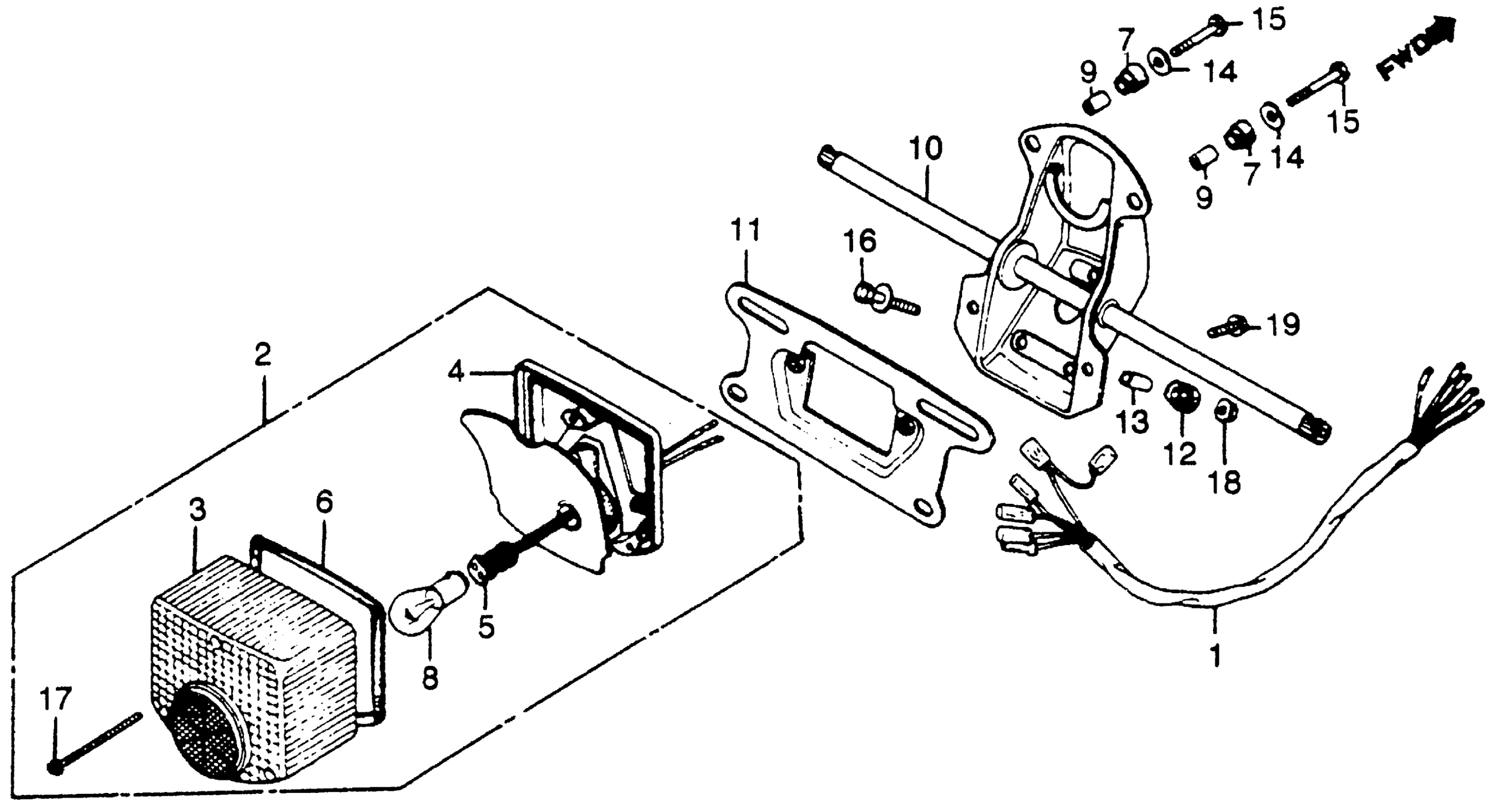

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 TAILLIGHT Diagram

#

Description
Price

1

SUB-WIRE HARNESS, TAILLIGHT (NOT AVAILABLE)

32200-447-000

Unavailable

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-388-670

Unavailable

3

LENS, TAILLIGHT

33702-329-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-388-670

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

7

GASKET B, TAILLIGHT BASE (NOT AVAILABLE)

33719-388-000

Unavailable

8

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

8

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

9

COLLAR, BATTERY BOX

50324-300-000

Unavailable

10

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-447-770

Unavailable

11

PLATE, NUMBER (NOT AVAILABLE)

84702-447-770

Unavailable

12

RUBBER, BRACKET

84905-118-000

$3.92

13

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

14

WASHER (20MM)

90581-310-000

$1.90

15

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

15

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

16

BOLT-WASHER (6X25)

93404-06025-00

$1.49

16

BOLT-WASHER (6X25) This part replaces 93494-06025-00.

93404-06025-00

$1.49

17

SCREW, PAN (4X55)

93500-04055-4J

$1.49

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
