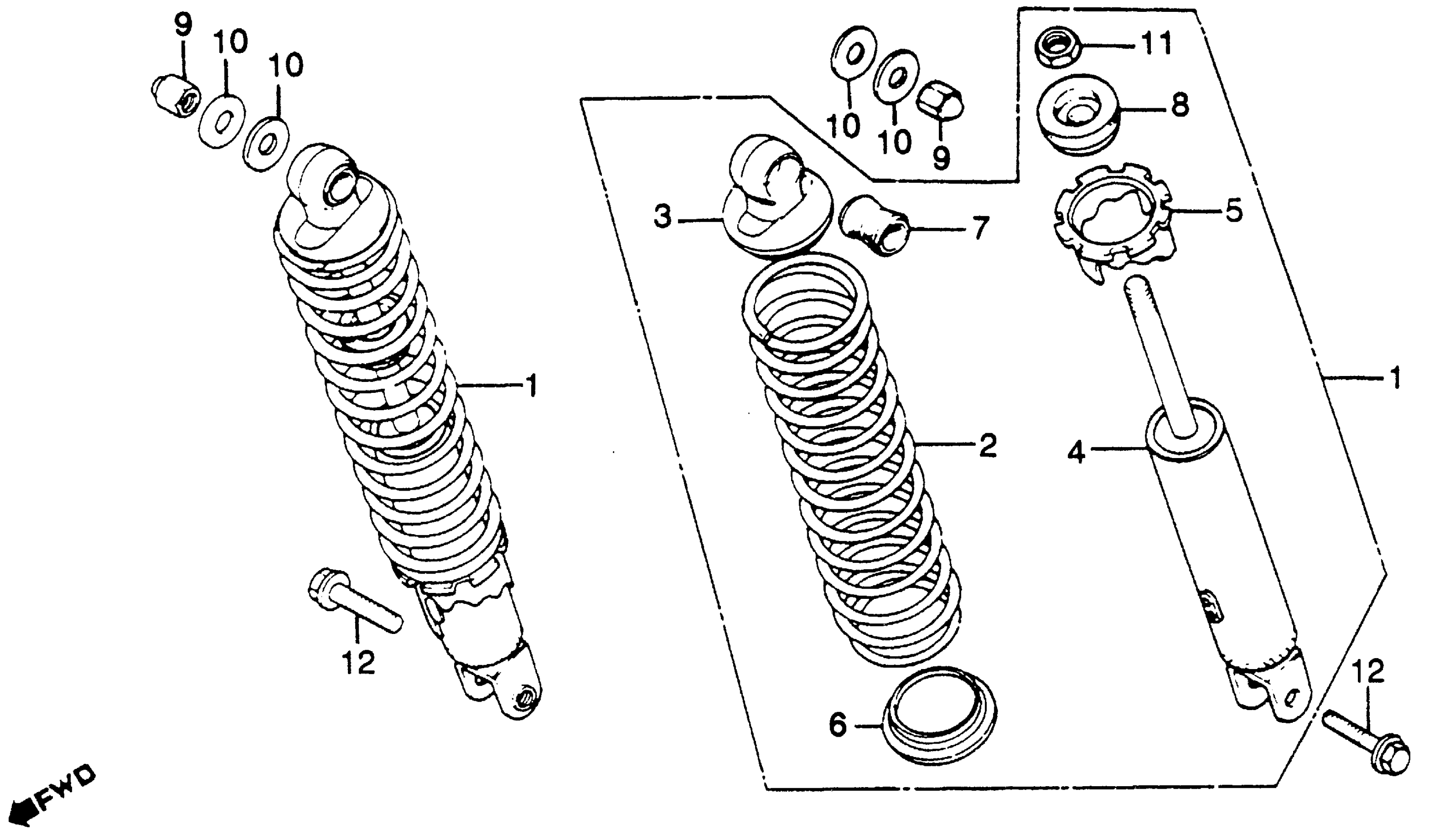

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER, RR. This part replaces 52400-447-733.

52400-447-405

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-413-013

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-425-003

Unavailable

4

DAMPER, RR. (NOT AVAILABLE)

52410-447-732

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE)

52422-404-003

$18.64

6

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-443-611

Unavailable

7

RUBBER, JOINT

52484-292-000

$5.87

8

RUBBER, STOPPER

52517-404-003

$5.70

9

NUT, FLANGE (10MM)

90309-315-000

$5.35

10

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

11

NUT, HEX. (10MM)

94002-10000-0S

$4.06

12

BOLT, FLANGE (10X32) This part replaces 95700-10032-00.

95701-10032-00

$1.49

12

BOLT, FLANGE (10X32)

95701-10032-00

$1.49
