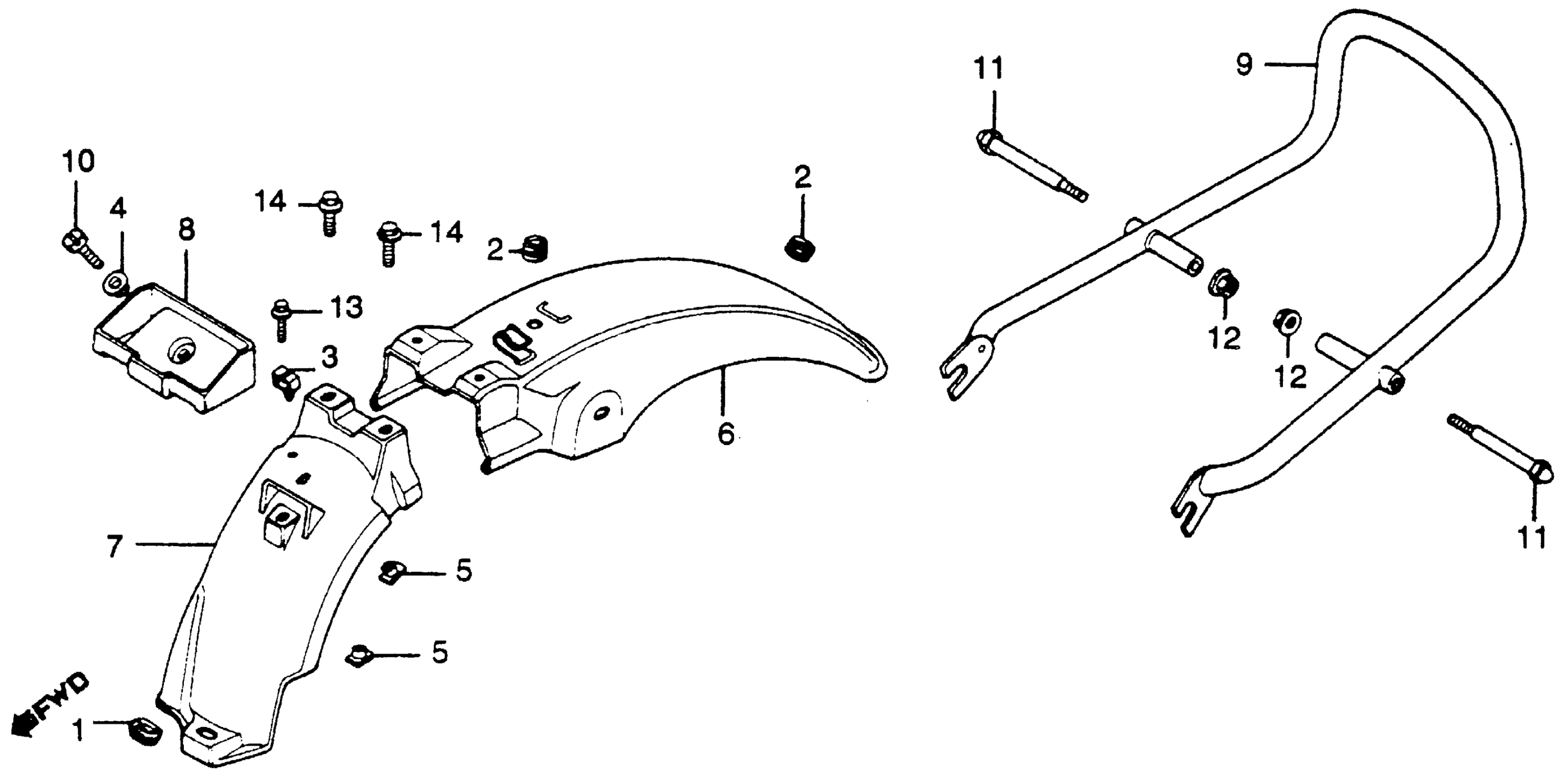

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 REAR FENDER + BUMPER Diagram

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

GROMMET, WIRE HARNESS

32983-447-000

$2.92

GROMMET, CABLE

32985-300-000

$3.35

COLLAR, CHAIN CASE

40514-310-000

$6.26

NUT, HEADLIGHT SETTING

61304-162-013

$3.47

FENDER, RR.

80100-447-670

Unavailable

FENDER B, RR. (NOT AVAILABLE)

80101-447-000

Unavailable

TRAY, TOOL (NOT AVAILABLE)

83501-447-000

Unavailable

BUMPER, RR. (NOT AVAILABLE)

84101-447-000

Unavailable

BOLT, RECESSED (6X16) This part replaces 92300-06016.

92301-06016-0A

$1.64

BOLT, RECESSED (6X16) This part replaces 92300-06016-0A.

92301-06016-0A

$1.64

BOLT, RECESSED (6X16)

92301-06016-0A

$1.64

BOLT, RECESSED (6X16) This part replaces 90156-KB0-000.

92301-06016-0A

$1.64

BOLT, CAP (8X80)

92600-08080-0B

Unavailable

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
