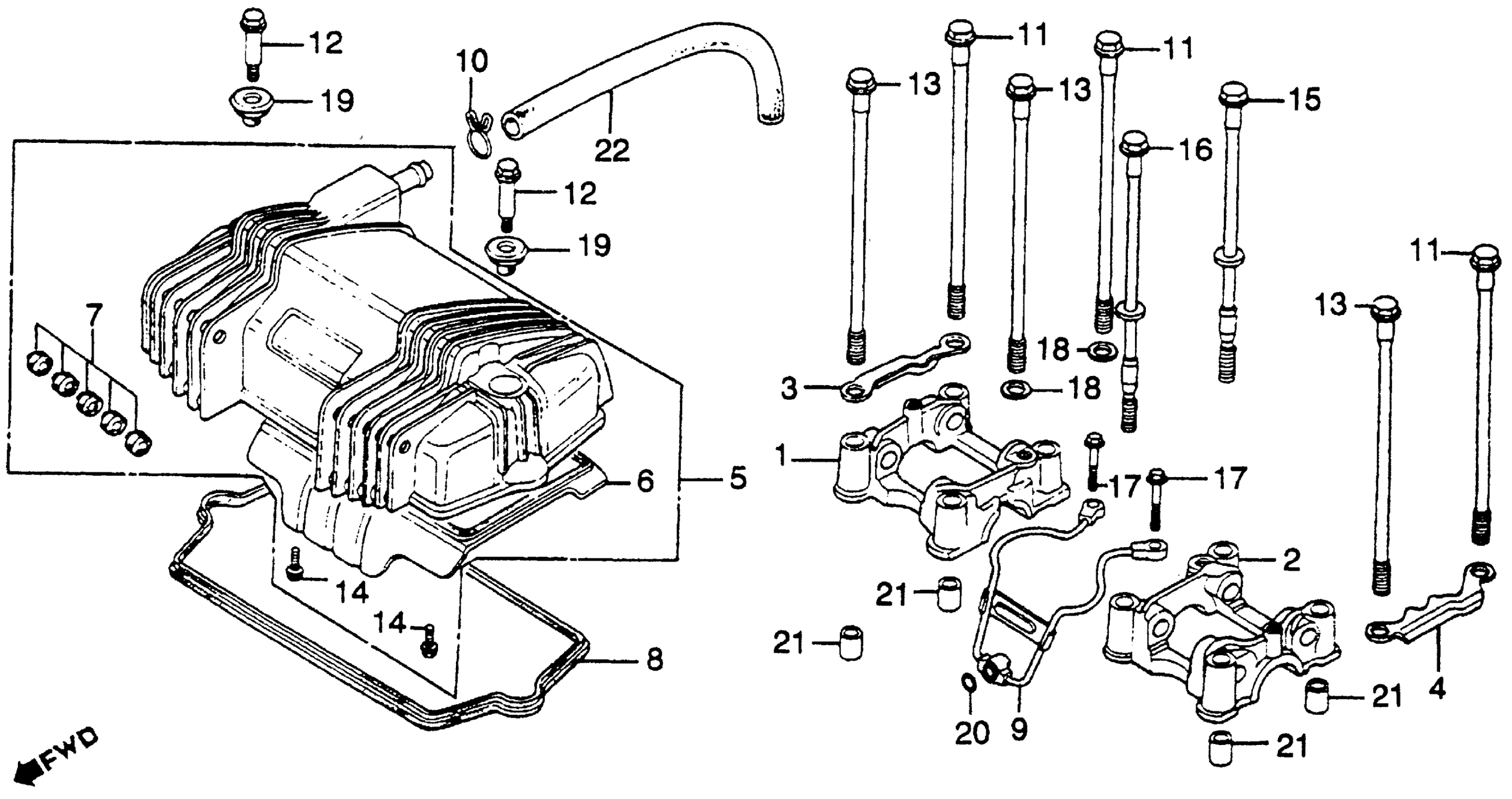

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 CYLINDER HEAD COVER + CAMSHAFT HOLDER Diagram

#

Description
Price

1

HOLDER, R. CAMSHAFT

12210-MC0-000

Unavailable

2

HOLDER, L. CAMSHAFT

12220-MC0-000

Unavailable

3

PLATE, R. VALVE ROCKER ARM SHAFT SETTING

12221-413-000

Unavailable

4

PLATE, L. VALVE ROCKER ARM SHAFT SETTING

12222-413-000

Unavailable

5

COVER ASSY., CYLINDER HEAD (NOT AVAILABLE)

12300-413-000

Unavailable

6

COVER, BREATHER (NOT AVAILABLE)

12321-413-010

Unavailable

7

RUBBER, INSERT

12324-413-000

Unavailable

8

GASKET, HEAD COVER

12328-413-830

$24.27

9

PIPE A, OIL (NOT AVAILABLE)

15510-MC0-000

Unavailable

10

CLIP, AIR HOSE (16)

18534-634-670

$4.48

11

BOLT, CYLINDER (212) (NO GROMMET)

90081-MC0-000

Unavailable

12

BOLT, HEAD COVER

90082-413-000

$4.61

13

BOLT, CYLINDER (222) (NO GROMMET)

90083-MC0-000

Unavailable

14

BOLT, FLANGE (6X10)

90083-657-000

$5.16

15

BOLT, CYLINDER (212B) (W/GROMMET) This part replaces 90087-MC0-000.

90087-MC0-010

$20.97

15

BOLT, CYLINDER (212B) (W/GROMMET)

90087-MC0-010

$20.97

15

BOLT, CYLINDER (212B) (W/GROMMET) This part replaces 90087-ML4-610.

90087-MC0-010

$20.97

16

BOLT, CYLINDER (222B) (W/GROMMET) This part replaces 90088-MC0-000.

90088-MC0-010

$19.49

16

BOLT, CYLINDER (222B) (W/GROMMET)

90088-MC0-010

$19.49

16

BOLT, CYLINDER (222B) (W/GROMMET) This part replaces 90088-ML4-610.

90088-MC0-010

$19.49

17

BOLT, FLANGE (6X35) (NOT AVAILABLE)

90140-MC0-000

Unavailable

18

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

Unavailable

18

WASHER (10MM) This part replaces 90403-413-000.

90403-ML4-611

Unavailable

18

WASHER (10MM) This part replaces 90403-413-010.

90403-ML4-611

Unavailable

19

WASHER, HEAD COVER This part replaces 90441-413-000.

90441-413-830

$8.33

19

WASHER, HEAD COVER

90441-413-830

$8.33

20

O-RING (8.5X1.7)

90751-MC0-000

Unavailable

21

PIN A, DOWEL (14X20)

94301-14200

$2.25

22

BULK HOSE, VACUUM (12X1000) (12X260) (BULK HOSE: 95005-12003-10M)

95005-12001-20M

Unavailable
