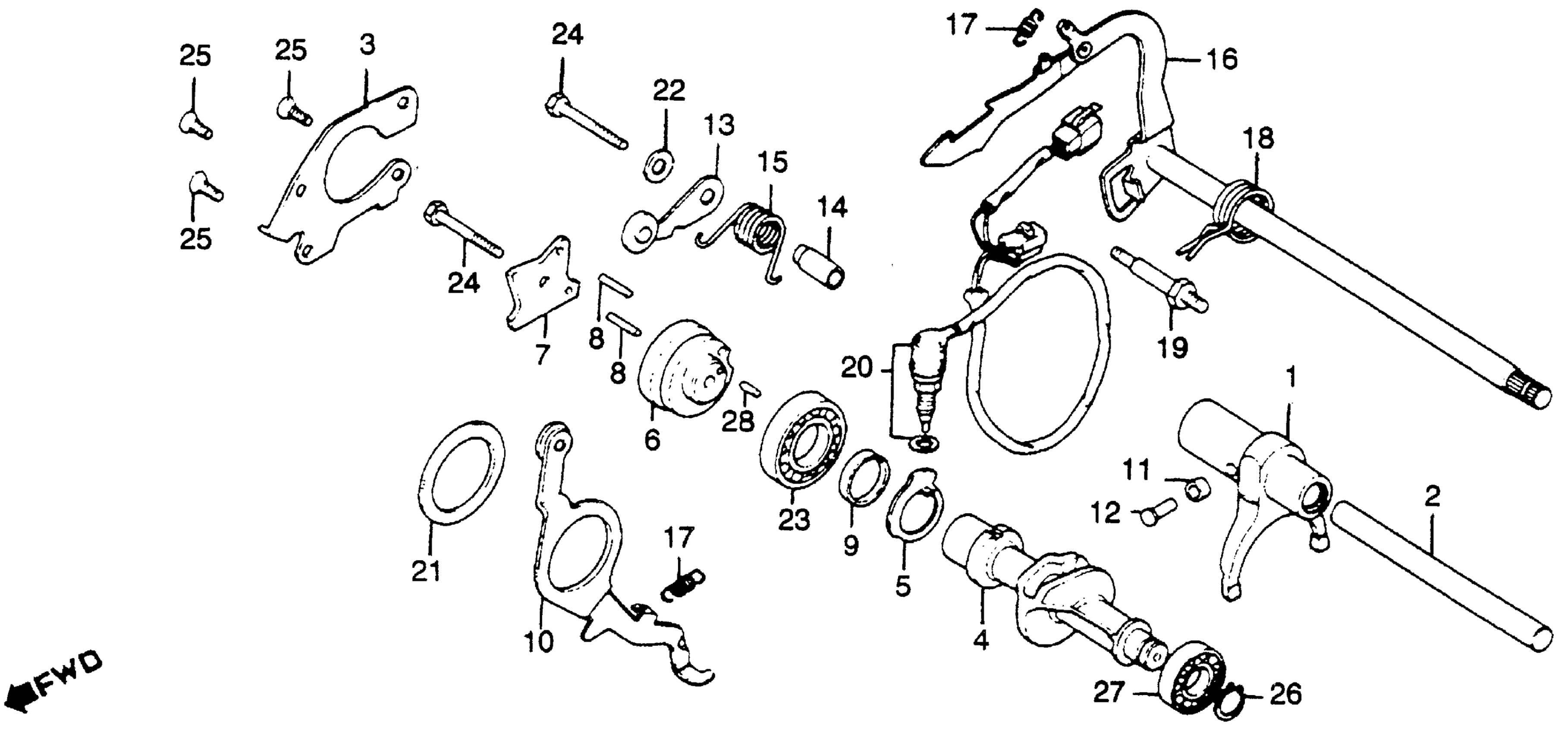

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 CM450A GEARSHIFT DRUM + GEARSHIFT ARM Diagram

#

Description
Price

1

FORK ASSY., GEARSHIFT (NOT AVAILABLE)

24200-417-000

Unavailable

2

SHAFT, GEARSHIFT FORK

24226-417-000

Unavailable

3

PLATE, GEARSHIFT DRUM STOPPER

24231-417-010

Unavailable

4

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-417-010

Unavailable

5

CAM, SWITCHING (NOT AVAILABLE)

24303-417-010

Unavailable

6

CENTER, GEARSHIFT DRUM (NOT AVAILABLE)

24304-417-000

Unavailable

7

PLATE, GEARSHIFT DRUM STOPPER CAM

24305-417-000

Unavailable

8

PIN, GEARSHIFT (NOT AVAILABLE)

24306-417-000

Unavailable

9

COLLAR, DISTANCE

24307-417-010

Unavailable

10

ARM, KICK INHIBITER

24310-417-000

Unavailable

11

ROLLER, GEARSHIFT (NOT AVAILABLE)

24414-417-000

Unavailable

12

PIN, GEARSHIFT ROLLER

24415-417-000

Unavailable

13

STOPPER, DRUM (NOT AVAILABLE)

24430-417-000

Unavailable

14

COLLAR, DRUM STOPPER (NOT AVAILABLE)

24432-417-000

Unavailable

15

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-417-000

Unavailable

16

ARM, GEARSHIFT (NOT AVAILABLE)

24610-417-000

Unavailable

17

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24617-417-000

Unavailable

18

SPRING, GEARSHIFT RETURN

24651-286-000

Unavailable

19

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-417-000

Unavailable

20

SWITCH, CHANGE (NOT AVAILABLE)

35752-448-000

Unavailable

21

WASHER, THRUST (30MM) (NOT AVAILABLE)

90411-417-000

Unavailable

22

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

23

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$15.03

24

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

24

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

24

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

25

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

25

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

26

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

27

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35

28

ROLLER (4X10)

96220-40100

$1.49
