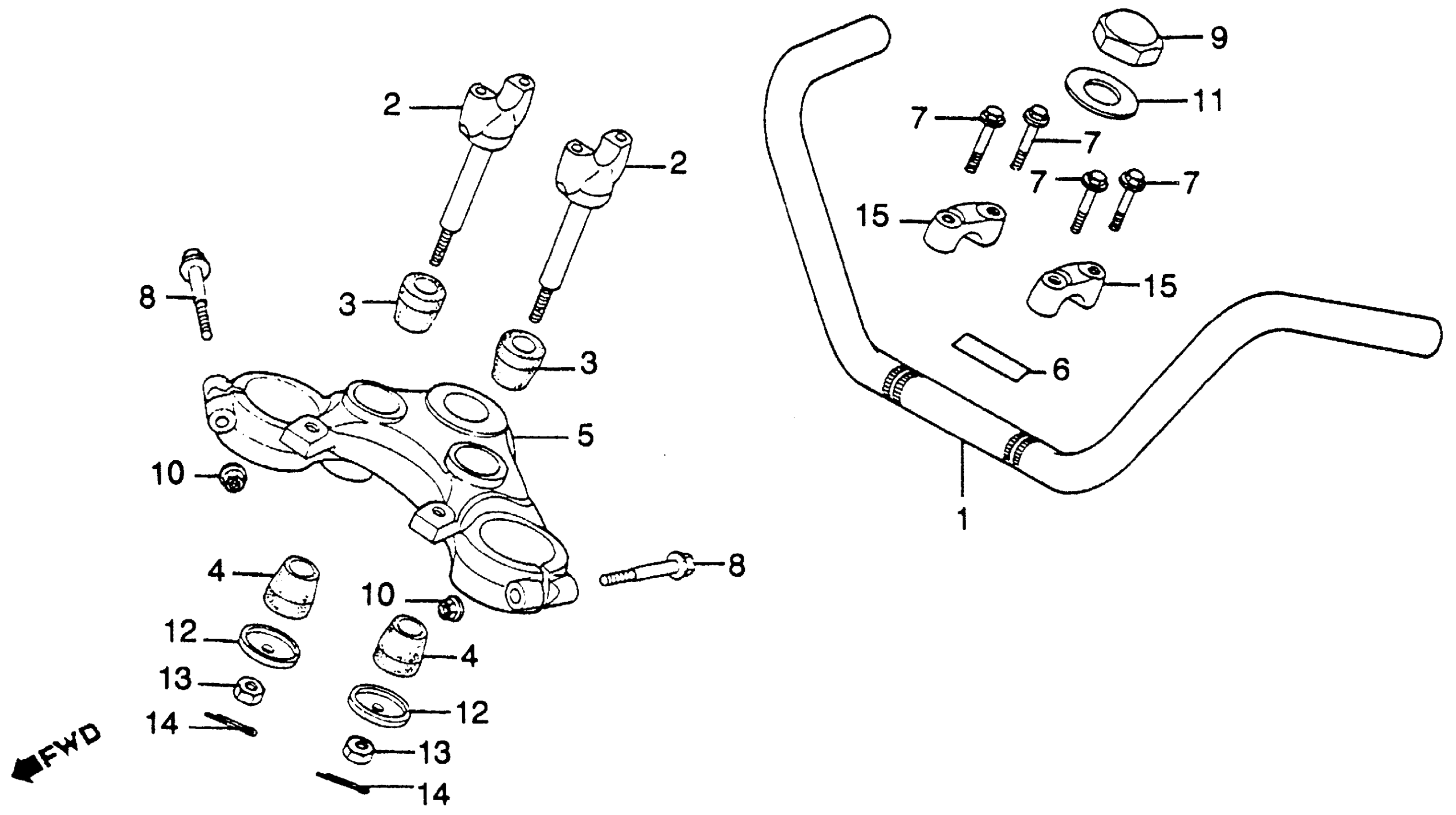

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 CM450A/CHANDLEBAR + TOP BRIDGE Diagram

HANDLEBAR (NOT AVAILABLE)

53100-447-870

Unavailable

HOLDER D2, HANDLEBAR (LOWER)

53132-447-000

Unavailable

RUBBER, HANDLEBAR CUSHION

53133-237-680

$4.76

RUBBER, HANDLEBAR CUSHION

53133-385-000

$5.22

BRIDGE, FORK TOP

53231-KB0-000

Unavailable

BRIDGE, FORK TOP This part replaces 53231-447-000.

53231-KB0-000

Unavailable

LABEL, FR. SHOCK CAUTION (NOT AVAILABLE)

87517-447-730

Unavailable

BOLT, FLANGE (8X36)

90111-362-000

$4.80

BOLT, FLANGE (7X54)

90155-369-000

$6.01

NUT, STEERING STEM

90304-415-000

$19.83

NUT, FLANGE (7MM)

90355-369-000

$4.94

WASHER, STEERING STEM

90503-283-000

$4.37

WASHER, RUBBER

90535-292-000

$2.03

NUT, HEX. (8MM)

94001-08000-0S

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13
