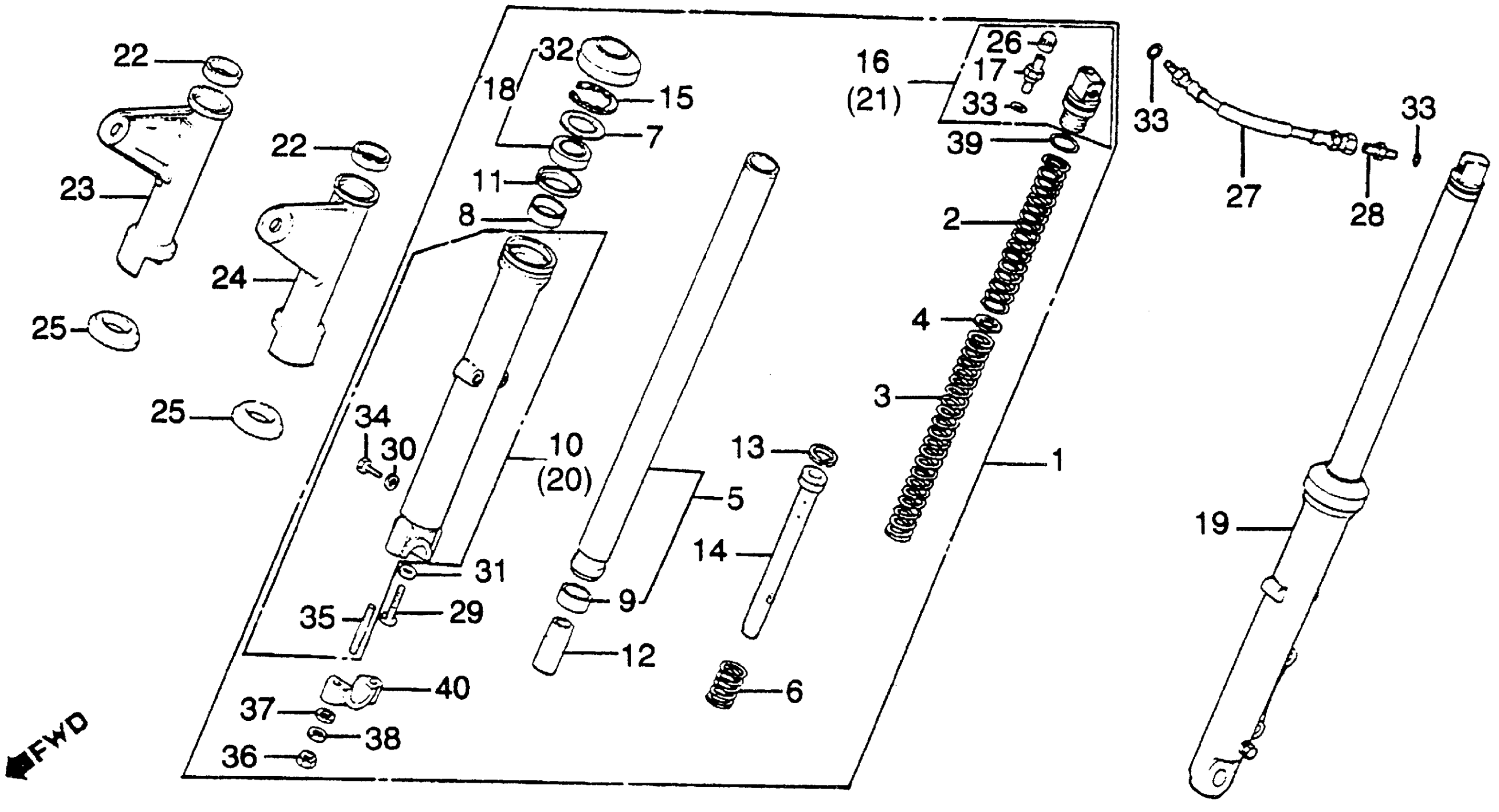

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 CM450A/CFRONT FORK Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. FR.

51400-MC0-671

Unavailable

2

SPRING A, FR. FORK (NOT AVAILABLE)

51401-447-731

Unavailable

3

SPRING B, FR. FORK (NOT AVAILABLE)

51402-MC0-671

Unavailable

4

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-447-731

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-MC0-671

Unavailable

6

SPRING, FR. FORK REBOUND

51412-369-000

$4.94

7

PLATE, BACK-UP

51413-447-731

Unavailable

8

BUSH, GUIDE

51414-447-731

$15.25

9

BUSH, SLIDER

51415-447-731

Unavailable

10

CASE, R. (LOWER) This part replaces 51421-447-731.

51421-447-732

Unavailable

10

CASE, R. (LOWER)

51421-447-732

Unavailable

11

RING, BACK-UP

51422-376-305

Unavailable

12

PIECE, OIL LOCKING

51432-447-731

$27.42

13

RING, PISTON

51437-413-003

$7.96

14

PIPE, SEAT (NOT AVAILABLE)

51440-447-731

Unavailable

15

CIRCLIP (INNER)

51447-447-731

Unavailable

16

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-470-751

Unavailable

17

VALVE, AIR (SHOWA)

51456-469-013

$33.69

18

SEAL SET, FR. FORK

51490-413-305

Unavailable

19

SHOCK ABSORBER ASSY., L. FR.

51500-MC0-671

Unavailable

20

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51521-447-731

Unavailable

21

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-470-751

Unavailable

22

CUSHION, FORK COVER (UPPER) (NOT AVAILABLE)

51601-447-000

Unavailable

23

COVER, R. FR. FORK (NOT AVAILABLE)

51602-447-770

Unavailable

24

COVER, L. FR. FORK (NOT AVAILABLE)

51606-447-770

Unavailable

25

RUBBER B, FR. FORK COVER

51622-317-700

Unavailable

26

CAP, AIR VALVE

52425-381-771

$5.05

27

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-MC0-671

Unavailable

28

CONNECTOR

53139-463-000

Unavailable

29

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

29

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

30

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

31

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

32

DUST SEAL, FR. FORK

91254-413-881

$25.92

33

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

33

O-RING (5.8X1.9)

91305-323-000

$2.92

33

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

34

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

34

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

34

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

35

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

35

BOLT, STUD (8X50)

92900-08028-3B

$1.59

36

NUT, HEX. (8MM)

94030-08000

$1.49

37

WASHER, PLAIN (8MM)

94101-08000

$1.49

38

WASHER, SPRING (8MM)

94111-08000

$1.49

39

O-RING (23X2.8)

94608-50000

$1.49

40

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
