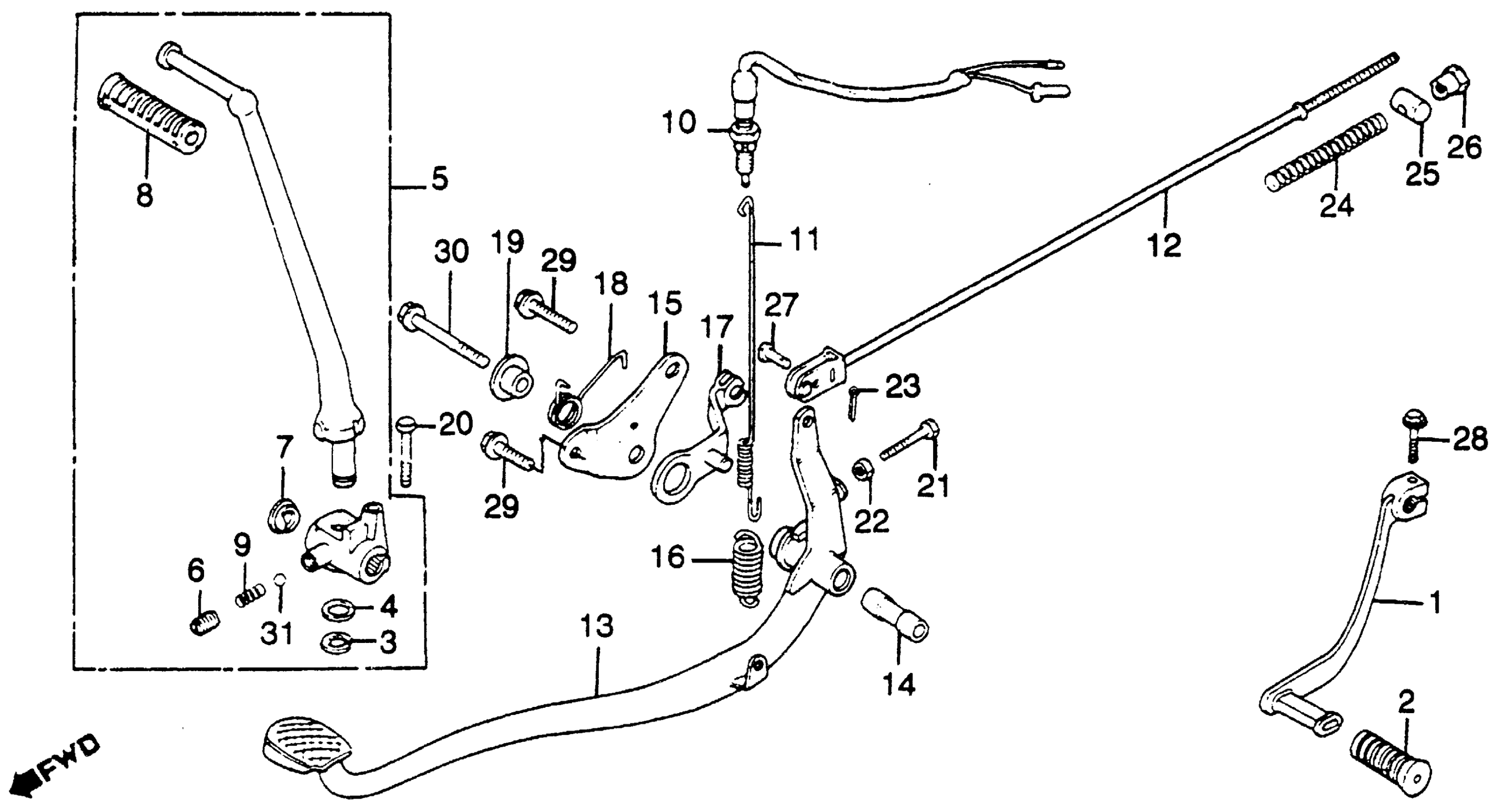

Honda CM450AA (83) HONDAMATIC, JPN, VIN# JH2PC052-DM100001 TO JH2PC052-DM102003 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-447-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

CLIP, KICK STARTER ARM

28293-333-000

$2.67

4

WASHER, KICK STARTER ARM (NOT AVAILABLE)

28294-333-000

Unavailable

5

ARM ASSY., KICK STARTER

28300-417-000

Unavailable

6

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

7

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

8

RUBBER, KICK STARTER

28311-329-000

$5.54

9

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

10

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

10

SWITCH ASSY., RR. STOP This part replaces 35350-MC9-830.

35350-KJ9-405

$16.97

10

SWITCH ASSY., RR. STOP This part replaces 35350-149-003.

35350-KJ9-405

$16.97

11

SPRING, STOP SWITCH

35357-413-000

Unavailable

12

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-MC0-670.

43451-447-000

Unavailable

13

PEDAL, BRAKE (NOT AVAILABLE)

46500-448-000

Unavailable

14

COLLAR, RR. BRAKE PIVOT

46501-447-000

Unavailable

15

PLATE, RR. BRAKE SUPPORT

46512-447-000

Unavailable

16

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-447-000

Unavailable

17

ARM, PARKING BRAKE

47301-417-000

Unavailable

18

SPRING, ARM RETURN

47501-448-000

Unavailable

19

COLLAR, SPRING MOUNT (NOT AVAILABLE)

47503-448-000

Unavailable

20

BOLT, HEX. (8X43)

90125-413-000

Unavailable

21

BOLT, HEX. (8X32) (NOT AVAILABLE)

92032-08032-0H

Unavailable

22

NUT, HEX. (8MM)

94001-08000-0S

$1.49

23

PIN, COTTER (1.6X12)

94201-16120

$1.49

24

SPRING A, BRAKE ROD

95014-73100

$1.49

25

JOINT, BRAKE ARM

95015-32001

$1.49

26

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

27

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

28

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

28

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

29

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

29

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

30

BOLT, FLANGE (8X70)

95800-08070-00

Unavailable

31

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
