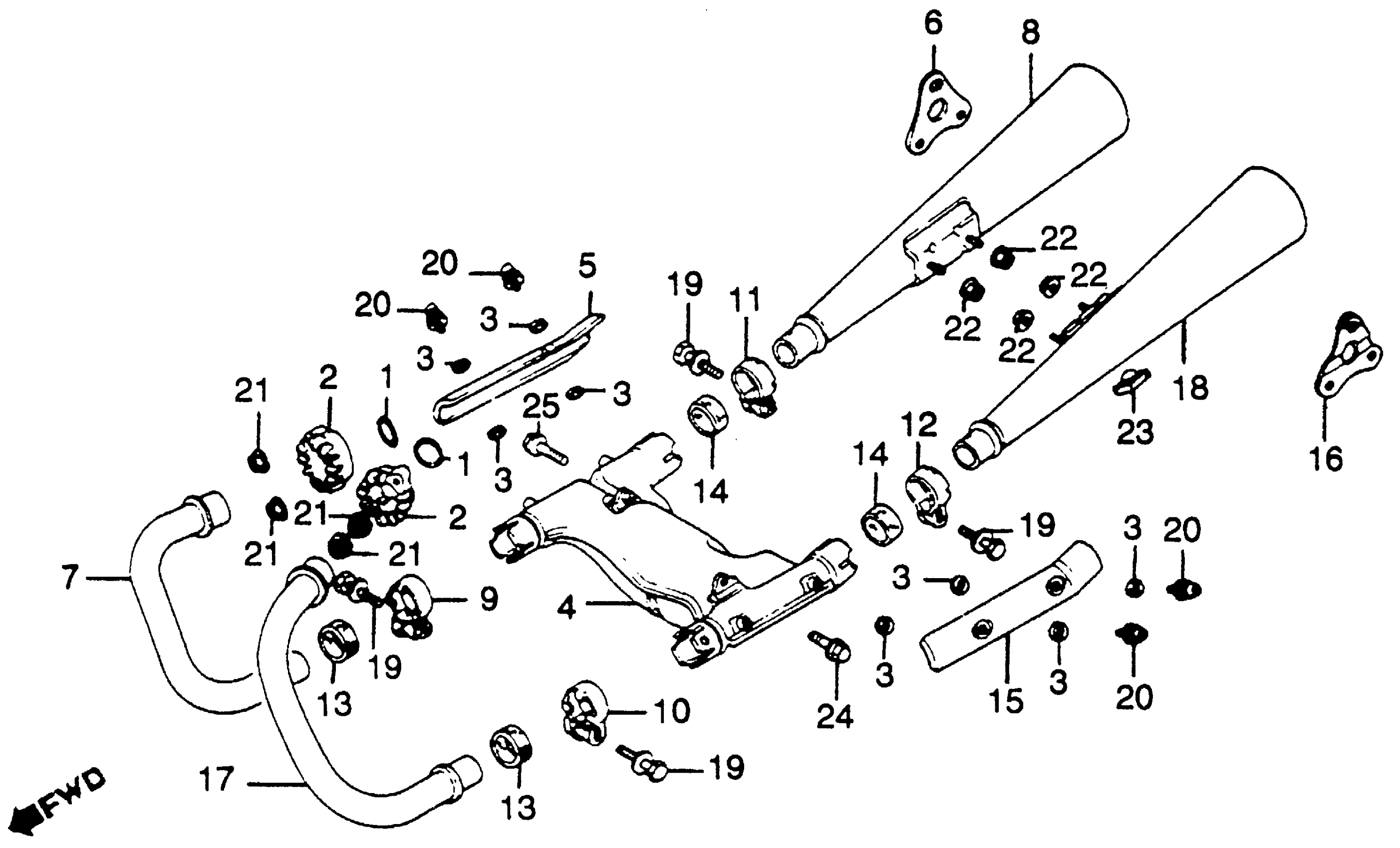

Honda CM450AA (82) HONDAMATIC, JPN, VIN# JH2PC052-CM000001 TO JH2PC052-CM004281 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18212-634-S00.

18212-634-010

Unavailable

1

GASKET, EX. PIPE This part replaces 18212-634-000.

18212-634-010

Unavailable

1

GASKET, EX. PIPE

18212-634-010

Unavailable

2

JOINT, EX. PIPE This part replaces 18231-413-000.

18231-413-010

Unavailable

2

JOINT, EX. PIPE

18231-413-010

Unavailable

3

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.80

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.80

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-147-000.

18292-GY1-860

$2.80

4

MUFFLER

18310-KB0-000

Unavailable

4

MUFFLER This part replaces 18310-MC0-670.

18310-KB0-000

Unavailable

4

MUFFLER This part replaces 18310-443-850.

18310-KB0-000

Unavailable

5

PROTECTOR, R. MUFFLER (NOT AVAILABLE)

18315-447-000

Unavailable

6

STAY, R. MUFFLER

18318-447-000

Unavailable

7

PIPE, R. EX. This part replaces 18320-413-003.

18320-417-003

Unavailable

7

PIPE, R. EX.

18320-417-003

Unavailable

8

MUFFLER, R. This part replaces 18330-447-730.

18330-447-405

Unavailable

8

MUFFLER, R. This part replaces 18330-447-737.

18330-447-405

Unavailable

9

BAND, R. FR. MUFFLER

18373-413-000

$35.45

10

BAND, L. FR. MUFFLER

18374-413-000

$35.45

11

BAND, R. RR. MUFFLER

18375-413-000

$36.49

12

BAND, L. RR. MUFFLER

18376-413-000

$32.96

13

GASKET, FR. MUFFLER This part replaces 18391-413-000.

18391-413-010

$10.05

13

GASKET, FR. MUFFLER

18391-413-010

$10.05

13

GASKET, FR. MUFFLER This part replaces 18391-413-306.

18391-413-010

$10.05

14

GASKET, RR. MUFFLER

18392-MG7-750

$12.26

14

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$12.26

15

PROTECTOR, L. MUFFLER (NOT AVAILABLE)

18415-413-000

Unavailable

16

STAY, L. MUFFLER (NOT AVAILABLE)

18418-447-000

Unavailable

17

PIPE, L. EX. (NOT AVAILABLE) This part replaces 18420-413-003.

18420-417-003

Unavailable

18

MUFFLER, L. This part replaces 18430-447-730.

18430-MC1-780

Unavailable

19

BOLT, FLANGE (8X37)

90118-471-000

$2.96

20

SCREW-WASHER

90136-443-840

Unavailable

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

NUT, FLANGE (8MM)

94050-08080

$0.86

23

RUBBER D, STAND STOPPER

95011-64000

$3.10

24

BOLT, FLANGE (8X20) This part replaces 95700-08020-08.

95701-08020-08

$1.43

24

BOLT, FLANGE (8X20)

95701-08020-08

$1.43

24

BOLT, FLANGE (8X20) This part replaces 95701-08020-18.

95701-08020-08

$1.43

25

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$1.91

25

BOLT, FLANGE (8X28)

95701-08028-08

$1.91
