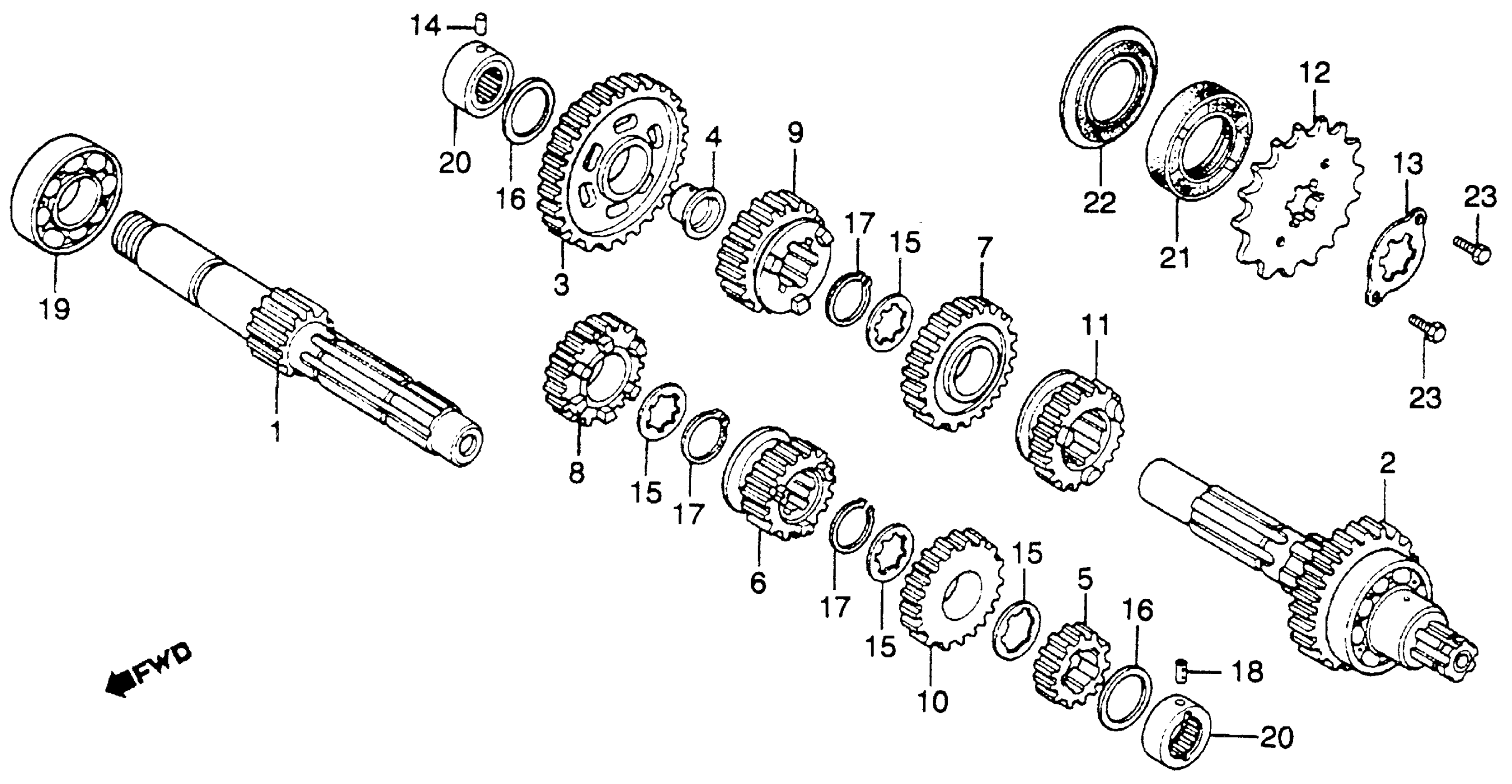

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (15T) (NOT AVAILABLE)

23211-413-010

Unavailable

2

COUNTERSHAFT (37T)

23220-413-010

Unavailable

3

GEAR, COUNTERSHAFT FIRST (41T) (NOT AVAILABLE)

23421-413-000

Unavailable

4

BUSH (20MM) (NOT AVAILABLE)

23422-413-000

Unavailable

5

GEAR, MAINSHAFT SECOND (20T)

23431-413-000

Unavailable

6

GEAR, MAINSHAFT THIRD (24T) (NOT AVAILABLE)

23451-413-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (34T) (NOT AVAILABLE)

23461-413-000

Unavailable

8

GEAR, MAINSHAFT FOURTH (27T) (NOT AVAILABLE)

23471-415-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (31T)

23481-MA1-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (31T) This part replaces 23481-413-000.

23481-MA1-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (29T)

23491-415-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)

23501-413-000

Unavailable

12

SPROCKET, DRIVE (16T)

23801-344-000

Unavailable

13

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

14

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

15

WASHER, THRUST (25MM)

90451-413-000

$3.26

16

WASHER, THRUST (20MM)

90452-413-000

$2.53

17

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

18

PIN, BEARING SETTING (NOT AVAILABLE)

90705-413-000

Unavailable

19

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

20

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

21

OIL SEAL (34X63X12)

91206-413-003

Unavailable

22

OIL SEAL (34X66)

91211-393-003

$14.10

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
