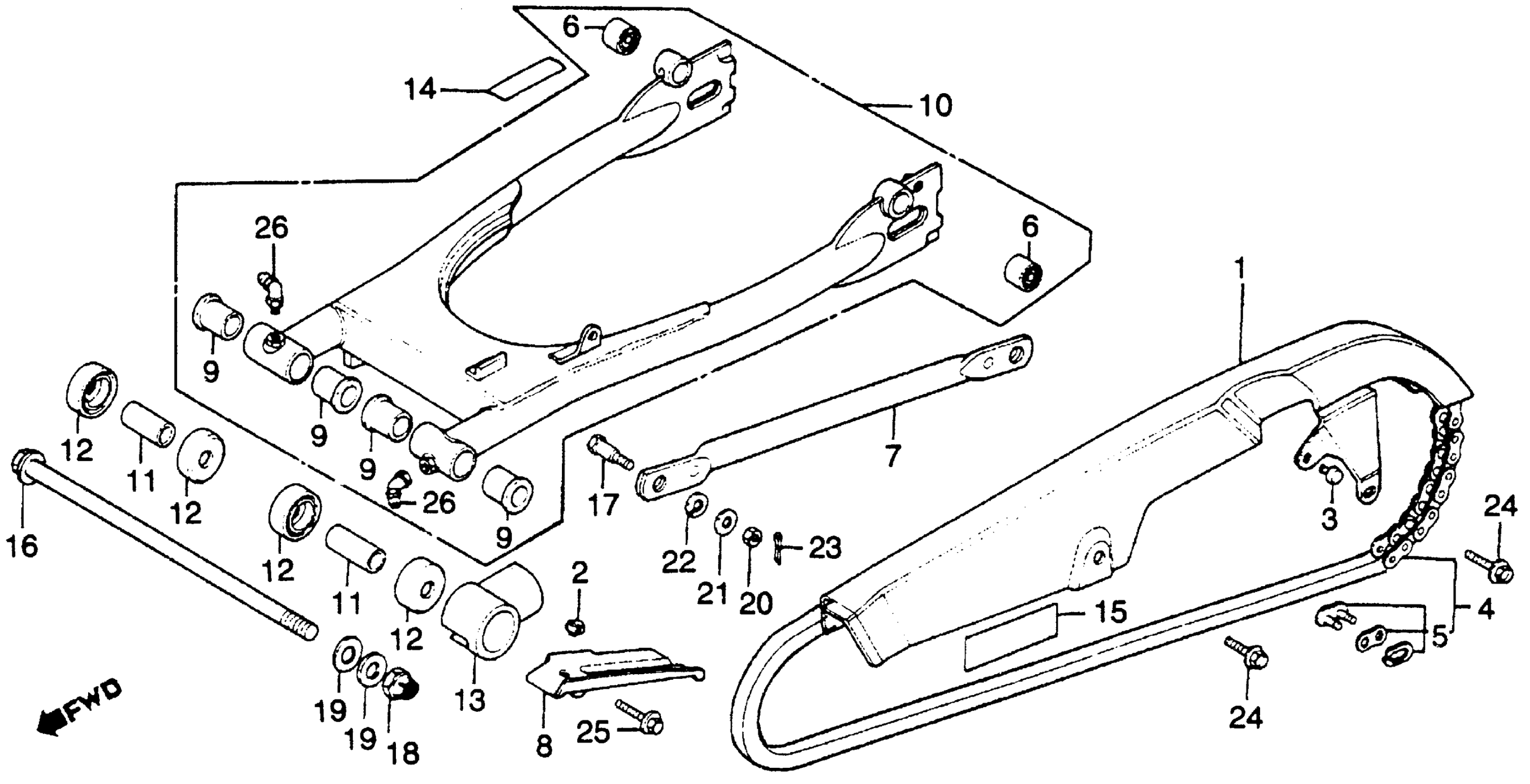

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN This part replaces 40510-447-000.

40510-447-780

Unavailable

2

PLUG, CHAIN GUARD

40514-333-000

$2.57

3

PLUG, CHAIN CASE (NOT AVAILABLE)

40514-447-000

Unavailable

4

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-414-003.

405W3-413-505

Unavailable

4

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-414-004.

405W3-413-505

Unavailable

4

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-414-791.

405W3-413-505

Unavailable

4

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-447-671.

405W3-413-505

Unavailable

4

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-447-672.

405W3-413-505

Unavailable

5

MASTER LINK (RK50KS) (TAKASAGO)

40531-413-004

Unavailable

5

MASTER LINK

40531-413-951

Unavailable

6

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

7

ARM, RR. BRAKE STOPPER This part replaces 43431-413-000.

43431-460-010

Unavailable

7

ARM, RR. BRAKE STOPPER This part replaces 43431-460-000.

43431-460-010

Unavailable

7

ARM, RR. BRAKE STOPPER

43431-460-010

Unavailable

8

PLATE, OIL GUIDE (NOT AVAILABLE)

50750-413-000

Unavailable

9

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$19.38

9

BUSH, SWINGARM

52109-KC1-003

$19.38

10

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52110-447-000ZA

Unavailable

11

COLLAR, R. SWINGARM This part replaces 52141-356-000.

52141-356-010

$86.90

11

COLLAR, R. SWINGARM

52141-356-010

$86.90

12

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

13

SLIDER, DRIVE CHAIN (NOT AVAILABLE)

52155-447-000

Unavailable

14

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

15

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-447-630

Unavailable

16

BOLT, SWINGARM PIVOT

90121-447-000

Unavailable

17

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

18

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$6.14

18

NUT, AXLE (14MM)

90305-197-013

$6.14

19

WASHER, SWINGARM PIVOT

90501-447-000

Unavailable

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, SPRING (8MM)

94111-10000

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

23

PIN, COTTER (2.0X22)

94201-20220

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

23

PIN, COTTER (2.0X35)

94201-20350

$1.49

23

PIN, COTTER (2.0X22)

94201-29220

$1.49

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

26

FITTING, GREASE (B.76S)

96201-80000

$2.56
