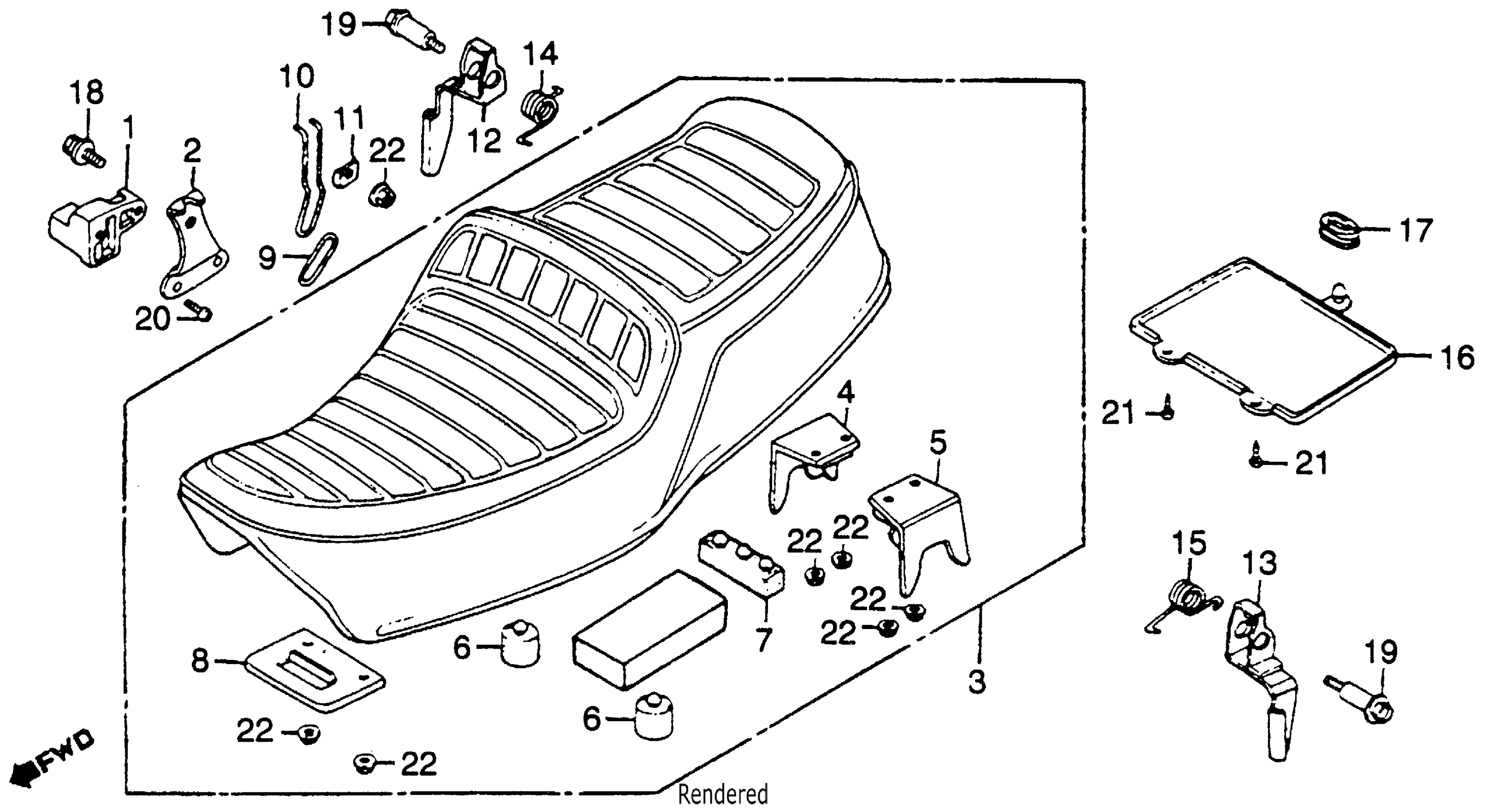

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 SEAT Diagram

#

Description
Price

1

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

1

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

2

BRACKET, HELMET HOLDER (NOT AVAILABLE)

50720-447-000

Unavailable

3

SEAT ASSY. (NOT AVAILABLE)

77200-447-670

Unavailable

4

PLATE, R. SEAT LOCK

77202-413-000

Unavailable

5

PLATE, L. SEAT LOCK

77203-413-000

Unavailable

6

RUBBER A, SEAT SETTING

77204-286-020

$10.02

7

RUBBER B, SEAT SETTING

77205-286-000

$5.28

7

RUBBER B, SEAT SETTING This part replaces 77205-292-010.

77205-286-000

$5.28

8

STAY, FR. SEAT (NOT AVAILABLE)

77206-447-000

Unavailable

9

RING, SEAT LOCK (NOT AVAILABLE)

77211-413-000

Unavailable

10

ARM, SEAT LOCK (NOT AVAILABLE)

77212-447-000

Unavailable

11

WASHER, SEAT LOCK (NOT AVAILABLE)

77213-413-000

Unavailable

12

LEVER, R. SEAT LOCK (NOT AVAILABLE)

77221-447-000

Unavailable

13

LEVER, L. SEAT LOCK

77222-447-000

Unavailable

14

SPRING, R. SEAT LOCK (NOT AVAILABLE)

77225-413-000

Unavailable

15

SPRING, L. SEAT LOCK (NOT AVAILABLE)

77226-413-000

Unavailable

16

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

17

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

18

BOLT, SPECIAL (8X16MM) (NOT AVAILABLE)

90105-413-000

Unavailable

19

BOLT, SEAT LOCK

90130-413-000

Unavailable

20

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

21

SCREW, TAPPING (5X8)

93901-25080

$1.49

22

NUT, FLANGE (6MM)

94050-06080

$1.49
