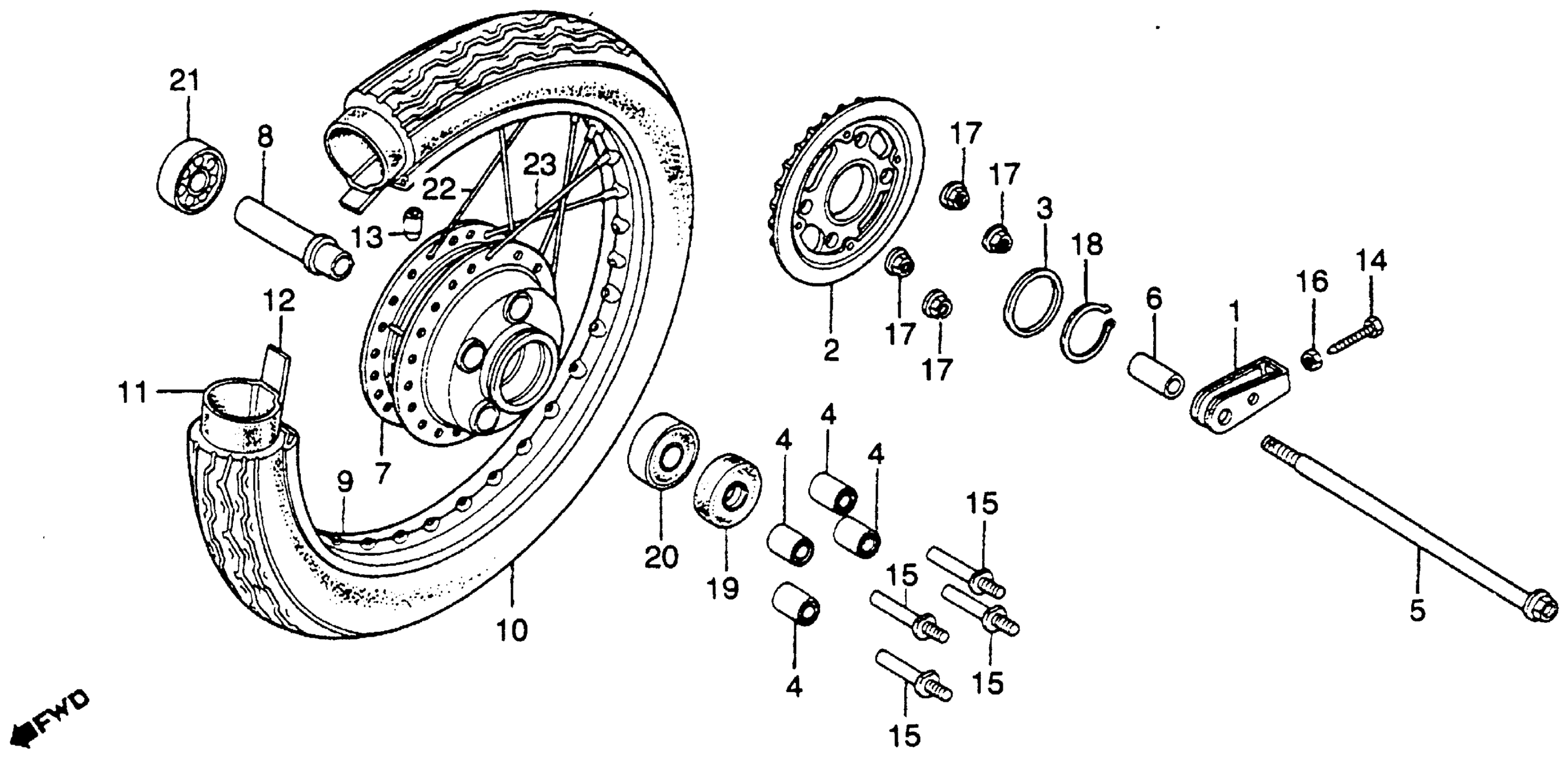

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 REAR WHEEL Diagram

#

Description
Price

1

BOLT, FLANGE (6X35)

40543-471-000

Unavailable

2

SPROCKET, FINAL DRIVEN (35T) (NOT AVAILABLE)

41200-447-630

Unavailable

3

WASHER (70MM)

41202-286-000

Unavailable

4

BUSH, RR. WHEEL DAMPER (NOT AVAILABLE)

41241-283-010

Unavailable

5

AXLE, RR. WHEEL

42301-413-000

Unavailable

6

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-413-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42601-413-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42624-413-000

Unavailable

9

RIM, RR. WHEEL

42701-447-671

Unavailable

10

TIRE, RR. (4.60-16) (OHTSU) This part replaces 42710-447-732.

42711-447-732

Unavailable

10

TIRE, RR. (4.60-16) (OHTSU) This part replaces 42710-447-733.

42711-447-732

Unavailable

10

TIRE, RR. (4.60-16) (OHTSU) This part replaces 42711-447-673.

42711-447-732

Unavailable

10

TIRE, RR. (4.60-16) (OHTSU)

42711-447-732

Unavailable

10

TIRE, RR. (4.60S-16) (BS) (NOT AVAILABLE)

42711-447-771

Unavailable

10

TIRE, RR. (4.60S-16) (DUNLOP) (NOT AVAILABLE)

42711-447-772

Unavailable

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 08400-44700.

42712-KW3-004

$41.08

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 42712-447-673.

42712-KW3-004

$41.08

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 42712-447-771.

42712-KW3-004

$41.08

11

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 42712-447-772.

42712-KW3-004

$41.08

12

FLAP, TIRE (1.60-14) (BS)

42713-GC4-003

$6.69

12

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-118-003.

42713-GC4-003

$6.69

12

FLAP, FR. TIRE (BS) This part replaces 42713-447-672.

44713-118-003

$7.20

12

FLAP, FR. TIRE (BS) This part replaces 42713-447-673.

44713-118-003

$7.20

13

BALANCER, WHEEL (20G)

44606-283-000

$8.89

14

BOLT, CHAIN ADJUSTING

90119-413-000

$3.69

15

BOLT, SPROCKET FIXING

90128-KE5-000

Unavailable

15

BOLT, SPROCKET FIXING This part replaces 90128-369-000.

90128-KE5-000

Unavailable

16

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

17

NUT, HEX. (10MM)

90308-357-000

$4.85

18

CIRCLIP (OUTER) (69MM) (NOT AVAILABLE)

90665-286-000

Unavailable

19

DUST SEAL (30X55X7) (NOT AVAILABLE)

91253-413-003

Unavailable

19

DUST SEAL (30X55X7) (NOT AVAILABLE) This part replaces 91253-413-004.

91253-413-003

Unavailable

20

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

21

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

22

SPOKE SET B (9X135)

97396-52110-P0

$3.26

23

SPOKE SET B (9X134.5)

97824-52109-P0

$3.26
