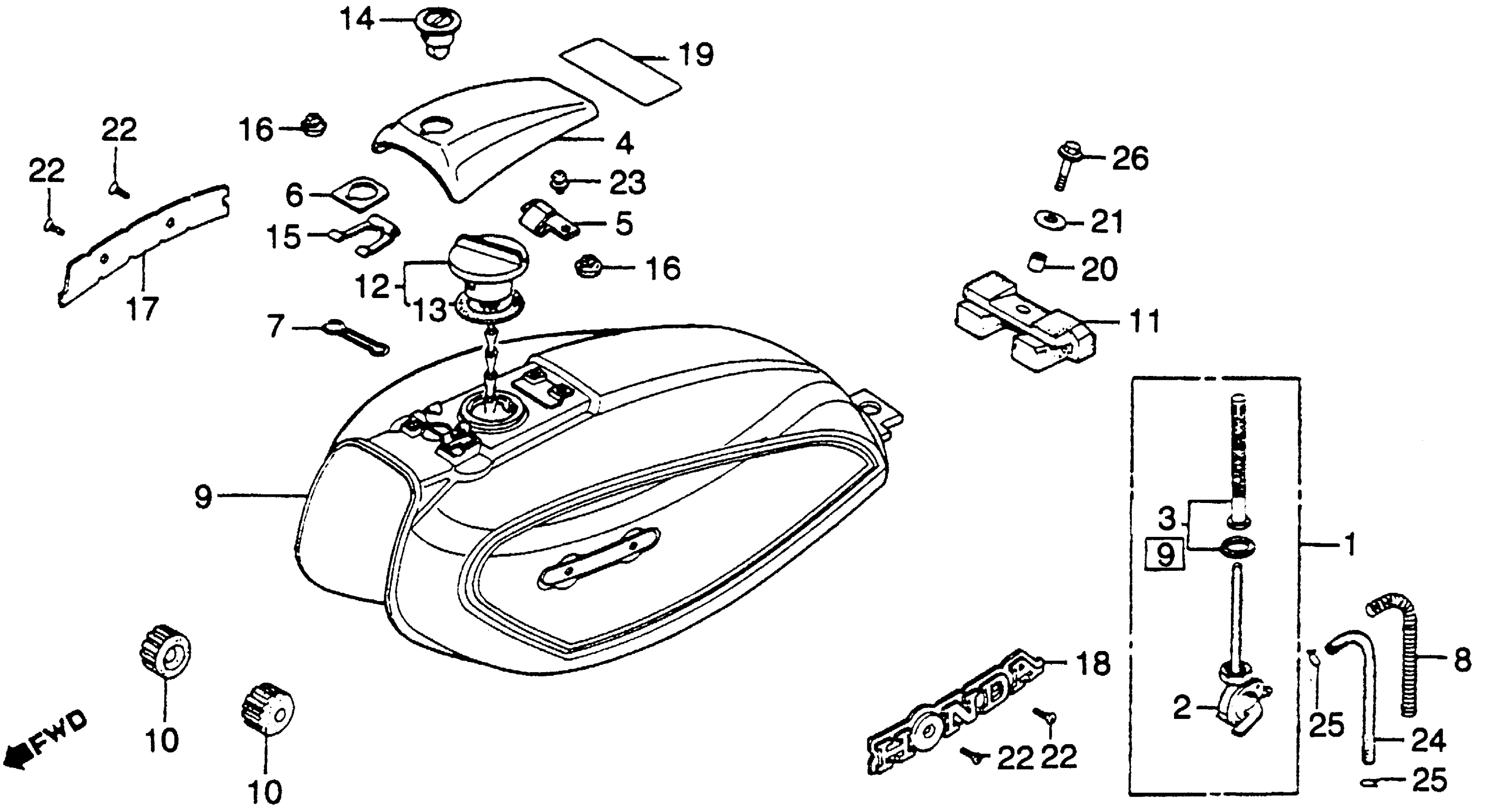

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 FUEL TANK Diagram

PETCOCK ASSY.

16950-447-015

Unavailable

BODY, PETCOCK (NOT AVAILABLE)

16951-434-015

Unavailable

SCREEN SET, FUEL STRAINER (NOT AVAILABLE)

16952-447-015

Unavailable

LID, FUEL TANK *NH1* (BLACK) (NOT AVAILABLE)

17511-413-860ZA

Unavailable

SPRING A, FUEL TANK LID (NOT AVAILABLE)

17512-413-000

Unavailable

SPACER, FUEL TANK LID (NOT AVAILABLE)

17525-413-870

Unavailable

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

SPRING, FUEL TUBE COVER

17532-404-000

Unavailable

TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE)

17540-447-630ZA

Unavailable

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

RUBBER, RR. FUEL TANK

17613-413-000

$14.60

CAP, FUEL FILLER (NOT AVAILABLE)

17620-465-771

Unavailable

GASKET This part replaces 17632-176-771.

17632-176-772

$11.02

GASKET This part replaces 17632-469-000.

17632-176-772

$11.02

LOCK, FILLER LID (TYPE1) (NOT AVAILABLE)

37220-414-781

Unavailable

SPRING, LOCK SET

37221-390-000

Unavailable

PLUG, CHAIN GUARD

40514-333-000

$2.57

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-447-630

Unavailable

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-447-630

Unavailable

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

COLLAR (8MM)

90324-300-000

$4.35

WASHER (8.3MM)

90534-011-000

$1.49

SCREW, OVAL (3X6)

93700-03006-0G

$1.49

SCREW-WASHER (5X6) (NOT AVAILABLE)

93891-05006-08

Unavailable

BULK HOSE, FUEL (5.5X3000) (5.5X110)

95001-55003-60M

$47.32

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
