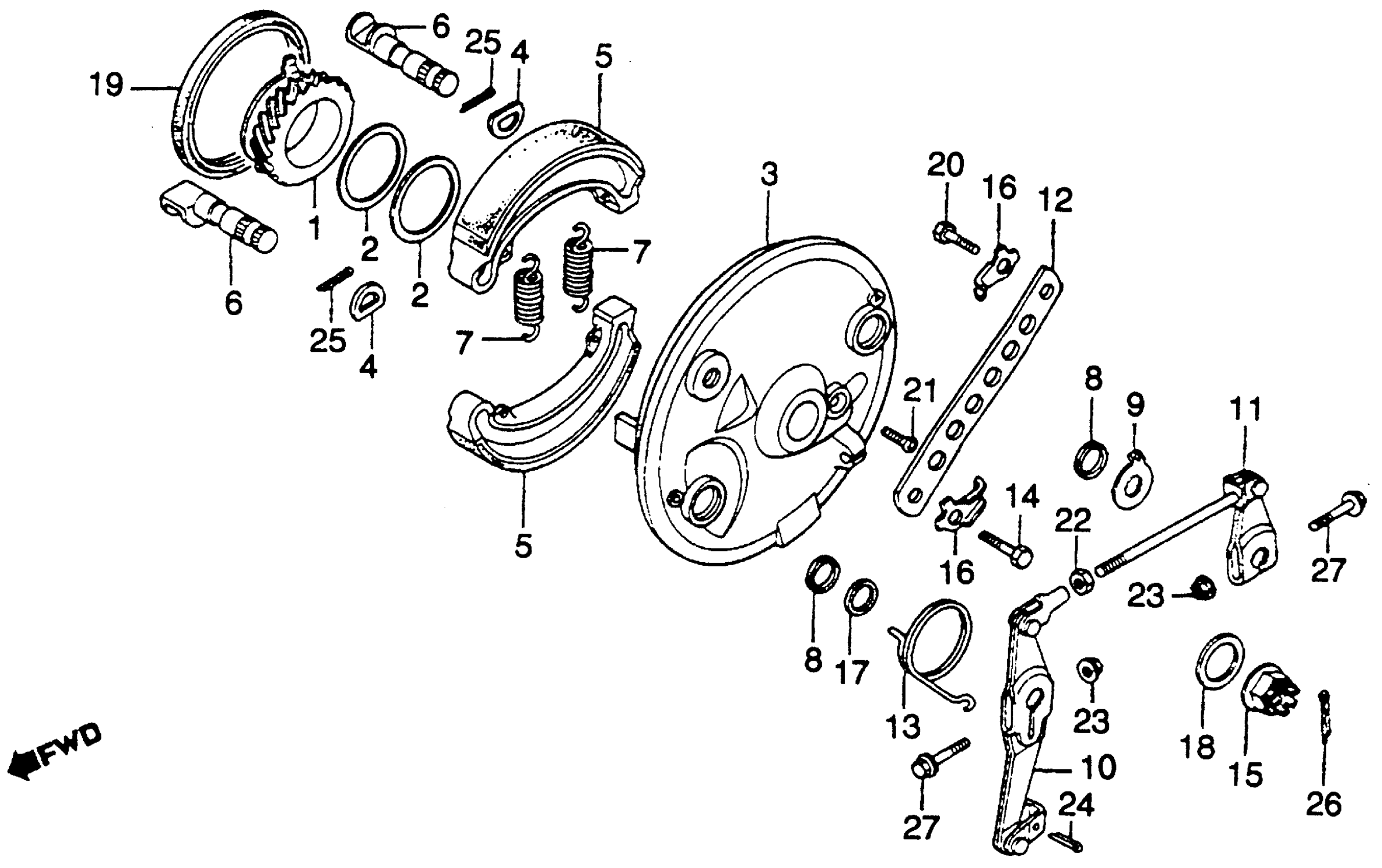

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 FRONT BRAKE + FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06450-369-405

Unavailable

NI

SHOE SET, BRAKE This part replaces 451A2-369-670.

06450-369-405

Unavailable

1

GEAR, SPEEDOMETER (NOT AVAILABLE)

44804-413-671

Unavailable

2

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

3

PANEL, FR. BRAKE (NOT AVAILABLE)

45010-413-671

Unavailable

4

WASHER, FR. ANCHOR PIN (NOT AVAILABLE)

45106-235-000

Unavailable

5

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-369-670

Unavailable

6

CAM, FR. BRAKE (NOT AVAILABLE)

45131-413-671

Unavailable

7

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-345-000

Unavailable

8

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

9

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-413-670

Unavailable

10

ARM, FR. BRAKE (NOT AVAILABLE)

45410-413-670

Unavailable

11

ARM, FR. BRAKE (NOT AVAILABLE)

45420-413-670

Unavailable

12

ARM, FR. BRAKE STOPPER (NOT AVAILABLE)

45431-344-000

Unavailable

13

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45435-222-000

Unavailable

14

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE)

90126-286-000

Unavailable

15

NUT, AXLE (14MM)

90305-401-680

$11.65

16

WASHER B, TONGUED (8.2MM) (NOT AVAILABLE)

90533-286-000

Unavailable

17

WASHER (14MM)

90549-121-000

Unavailable

18

WASHER (15.2X25)

90557-230-000

$2.39

19

OIL SEAL (54X66X7)

91251-230-003

$12.60

20

BOLT, HEX. (8X28) This part replaces 93200-08028-0A.

93201-08028-0A

$1.75

20

BOLT, HEX. (8X28)

93201-08028-0A

$1.75

21

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

24

PIN, COTTER (2.0X22)

94201-20220

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

24

PIN, COTTER (2.0X35)

94201-20350

$1.49

24

PIN, COTTER (2.0X22)

94201-29220

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

25

PIN, COTTER (2.0X22)

94201-20220

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

25

PIN, COTTER (2.0X35)

94201-20350

$1.49

25

PIN, COTTER (2.0X22)

94201-29220

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

26

PIN, COTTER (3.0X45)

94201-30450

$1.49

27

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

27

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
