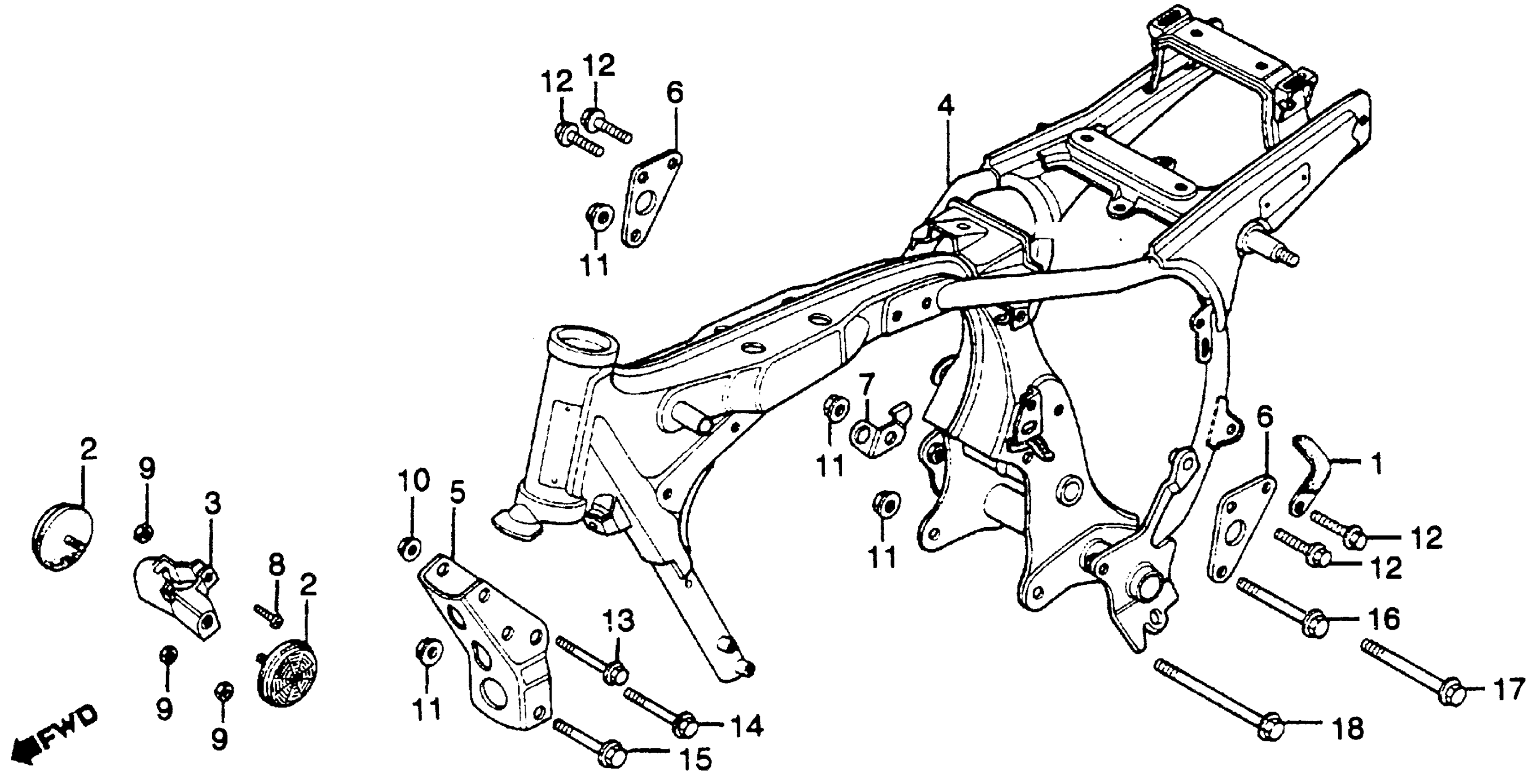

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 FRAME Diagram

#

Description
Price

1

CLIP B, CABLE HARNESS (NOT AVAILABLE)

32811-413-000

Unavailable

2

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

2

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

2

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

3

BRACKET, FR. REFLECTOR (NOT AVAILABLE)

33750-447-000

Unavailable

4

FRAME *NH1* (BLACK)

50100-447-670ZA

Unavailable

5

PLATE, FR. ENGINE HANGER (NOT AVAILABLE)

50351-413-000

Unavailable

6

PLATE, ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-413-000

Unavailable

7

GUIDE, OVERFLOW TUBE (UPPER)

50731-413-000

Unavailable

8

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

8

SCREW, PAN (6X16)

93500-06016-0A

$1.49

9

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, FLANGE (8MM)

94050-08000

$1.49

11

NUT, FLANGE (10MM)

94050-10000

$1.59

12

BOLT, FLANGE (8X20) This part replaces 95700-08020-08.

95701-08020-08

$1.62

12

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

12

BOLT, FLANGE (8X20) This part replaces 95701-08020-18.

95701-08020-08

$1.62

13

BOLT, FLANGE (8X70)

95800-08070-00

Unavailable

14

BOLT, FLANGE (10X70) This part replaces 95800-10070-00.

95801-10070-00

$1.80

14

BOLT, FLANGE (10X70)

95801-10070-00

$1.80

15

BOLT, FLANGE (10X80) This part replaces 95800-10080-00.

95801-10080-00

$2.92

15

BOLT, FLANGE (10X80)

95801-10080-00

$2.92

16

BOLT, FLANGE (10X95) This part replaces 95800-10095-00.

95801-10095-00

$4.41

16

BOLT, FLANGE (10X95)

95801-10095-00

$4.41

17

BOLT, FLANGE (10X125) This part replaces 95800-10125-00.

95801-10125-00

Unavailable

17

BOLT, FLANGE (10X125)

95801-10125-00

Unavailable

18

BOLT, FLANGE (10X150) This part replaces 95800-10150-08.

95801-10150-08

$4.93

18

BOLT, FLANGE (10X150)

95801-10150-08

$4.93
