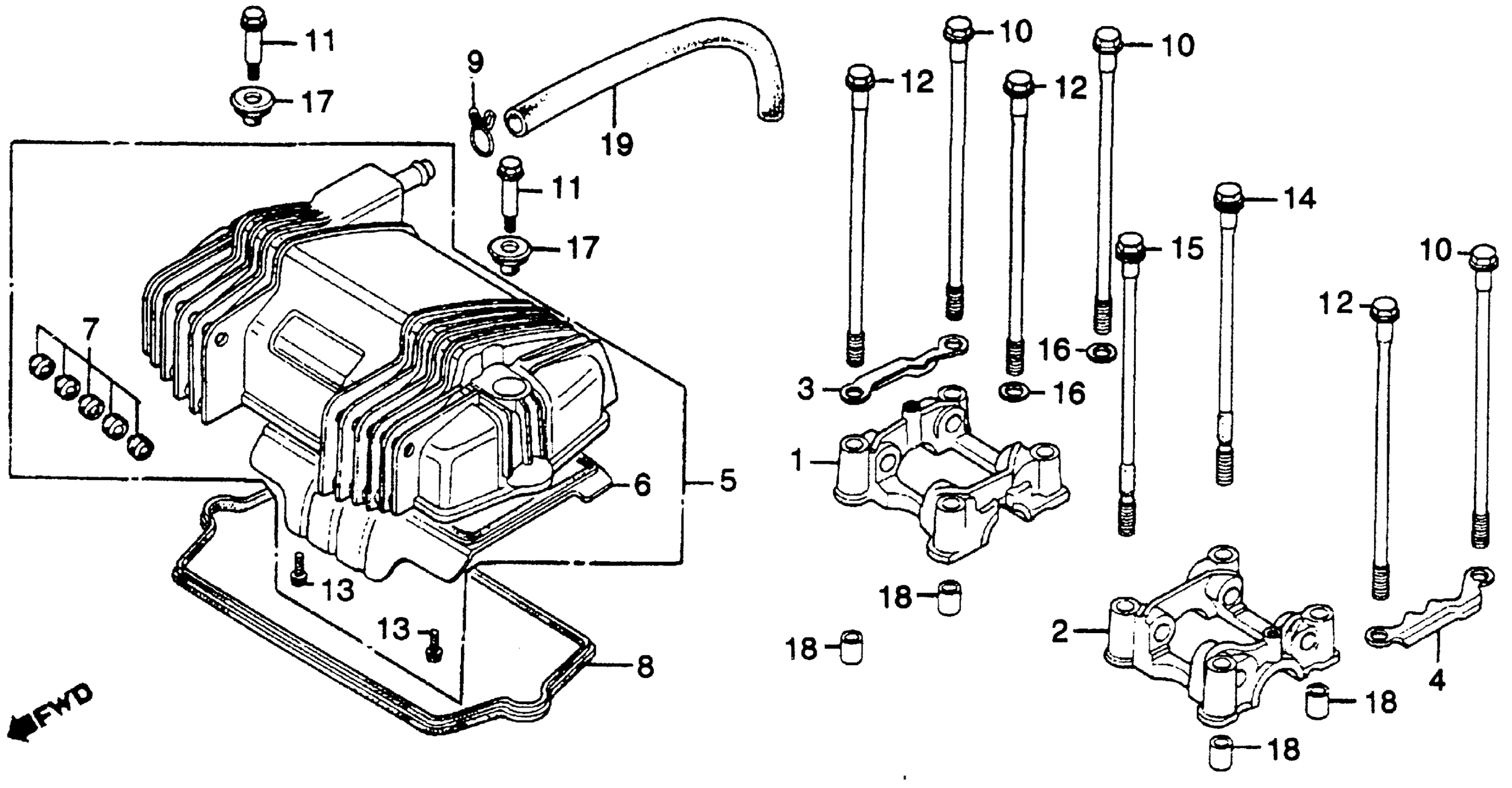

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 CYLINDER HEAD COVER + CAMSHAFT HOLDER Diagram

#

Description
Price

1

HOLDER, R. CAMSHAFT (NOT AVAILABLE)

12210-413-030

Unavailable

2

HOLDER, L. CAMSHAFT (NOT AVAILABLE)

12220-413-030

Unavailable

3

PLATE, R. VALVE ROCKER ARM SHAFT SETTING

12221-413-000

Unavailable

4

PLATE, L. VALVE ROCKER ARM SHAFT SETTING

12222-413-000

Unavailable

5

COVER ASSY., CYLINDER HEAD (NOT AVAILABLE)

12300-413-000

Unavailable

6

COVER, BREATHER (NOT AVAILABLE)

12321-413-010

Unavailable

7

RUBBER, INSERT

12324-413-000

Unavailable

8

GASKET, HEAD COVER This part replaces 12328-413-000.

12328-413-830

$27.05

8

GASKET, HEAD COVER

12328-413-830

$27.05

9

CLIP, AIR HOSE (16)

18534-634-670

$5.76

10

BOLT, CYLINDER (212) (NO GROMMET)

90081-MC0-000

Unavailable

10

BOLT, CYLINDER (212) (NO GROMMET) This part replaces 90081-413-000.

90081-MC0-000

Unavailable

11

BOLT, HEAD COVER

90082-413-000

$4.94

12

BOLT, CYLINDER (222) (NO GROMMET)

90083-MC0-000

Unavailable

12

BOLT, CYLINDER (222) (NO GROMMET) This part replaces 90083-413-000.

90083-MC0-000

Unavailable

13

BOLT, FLANGE (6X10)

90083-657-000

$5.67

14

BOLT, CYLINDER (212B) (W/GROMMET)

90087-MC0-010

$23.03

14

BOLT, CYLINDER (212B) (W/GROMMET) This part replaces 90087-413-000.

90087-MC0-010

$23.03

14

BOLT, CYLINDER (212B) (W/GROMMET) This part replaces 90087-413-010.

90087-MC0-010

$23.03

15

BOLT, CYLINDER (222B) (W/GROMMET)

90088-MC0-010

$21.71

15

BOLT, CYLINDER (222B) (W/GROMMET) This part replaces 90088-413-000.

90088-MC0-010

$21.71

15

BOLT, CYLINDER (222B) (W/GROMMET) This part replaces 90088-413-010.

90088-MC0-010

$21.71

16

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

16

WASHER (10MM) This part replaces 90403-413-010.

90403-ML4-611

$6.21

17

WASHER, HEAD COVER This part replaces 90441-413-000.

90441-413-830

$9.27

17

WASHER, HEAD COVER

90441-413-830

$9.27

18

PIN A, DOWEL (14X20)

94301-14200

$2.28

19

BULK HOSE, VACUUM (12X1000) (12X260) (BULK HOSE: 95005-12003-10M)

95005-12001-20M

$34.11
