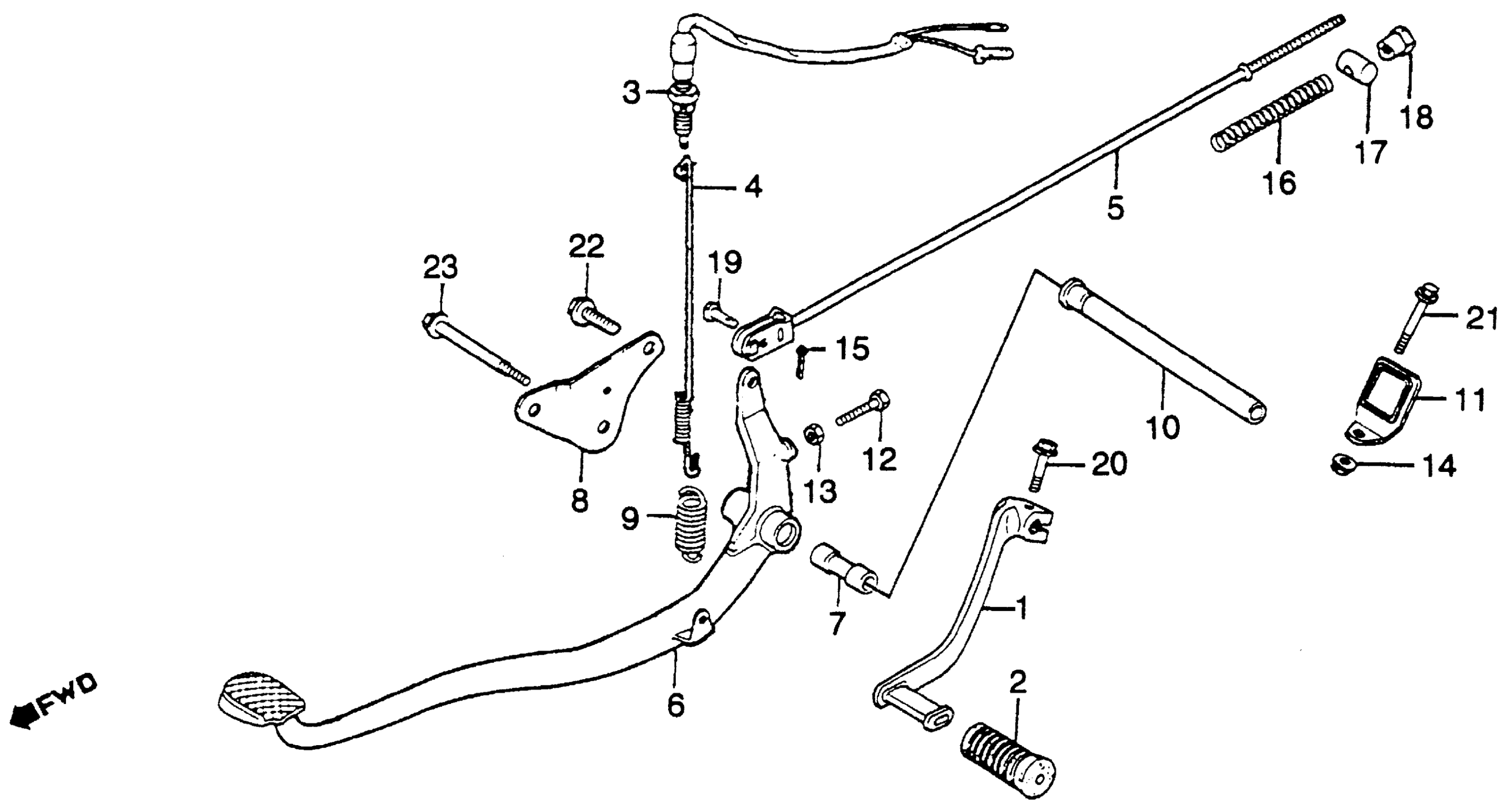

Honda CM400EA (81) MOTORCYCLE, JPN, VIN# JH2NC011-BM100001 TO JH2NC011-BM113694 BRAKE PEDAL + CHANGE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-447-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

3

SWITCH ASSY., RR. STOP This part replaces 35350-MC9-830.

35350-KJ9-405

$16.97

3

SWITCH ASSY., RR. STOP This part replaces 35350-149-003.

35350-KJ9-405

$16.97

4

SPRING, STOP SWITCH

35357-413-000

Unavailable

5

ROD, RR. BRAKE (NOT AVAILABLE)

43451-447-000

Unavailable

6

PEDAL, BRAKE (NOT AVAILABLE)

46500-447-000

Unavailable

7

COLLAR, RR. BRAKE PIVOT

46501-447-000

Unavailable

8

PLATE, RR. BRAKE SUPPORT

46512-447-000

Unavailable

9

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-447-000

Unavailable

10

SHAFT, MAIN STAND PIVOT (NOT AVAILABLE)

50526-413-000

Unavailable

11

GUIDE, OVERFLOW TUBE (LOWER) (NOT AVAILABLE)

50730-414-000

Unavailable

12

BOLT, HEX. (8X32) (NOT AVAILABLE)

92032-08032-0H

Unavailable

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

NUT, FLANGE (6MM)

94050-06080

$1.49

15

PIN, COTTER (1.6X12)

94201-16120

$1.49

16

SPRING A, BRAKE ROD

95014-73100

$1.49

16

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

17

JOINT, BRAKE ARM

95015-32001

$1.49

18

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

19

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

20

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

20

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

21

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

21

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

22

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

22

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

23

BOLT, FLANGE (8X70)

95800-08070-00

Unavailable
