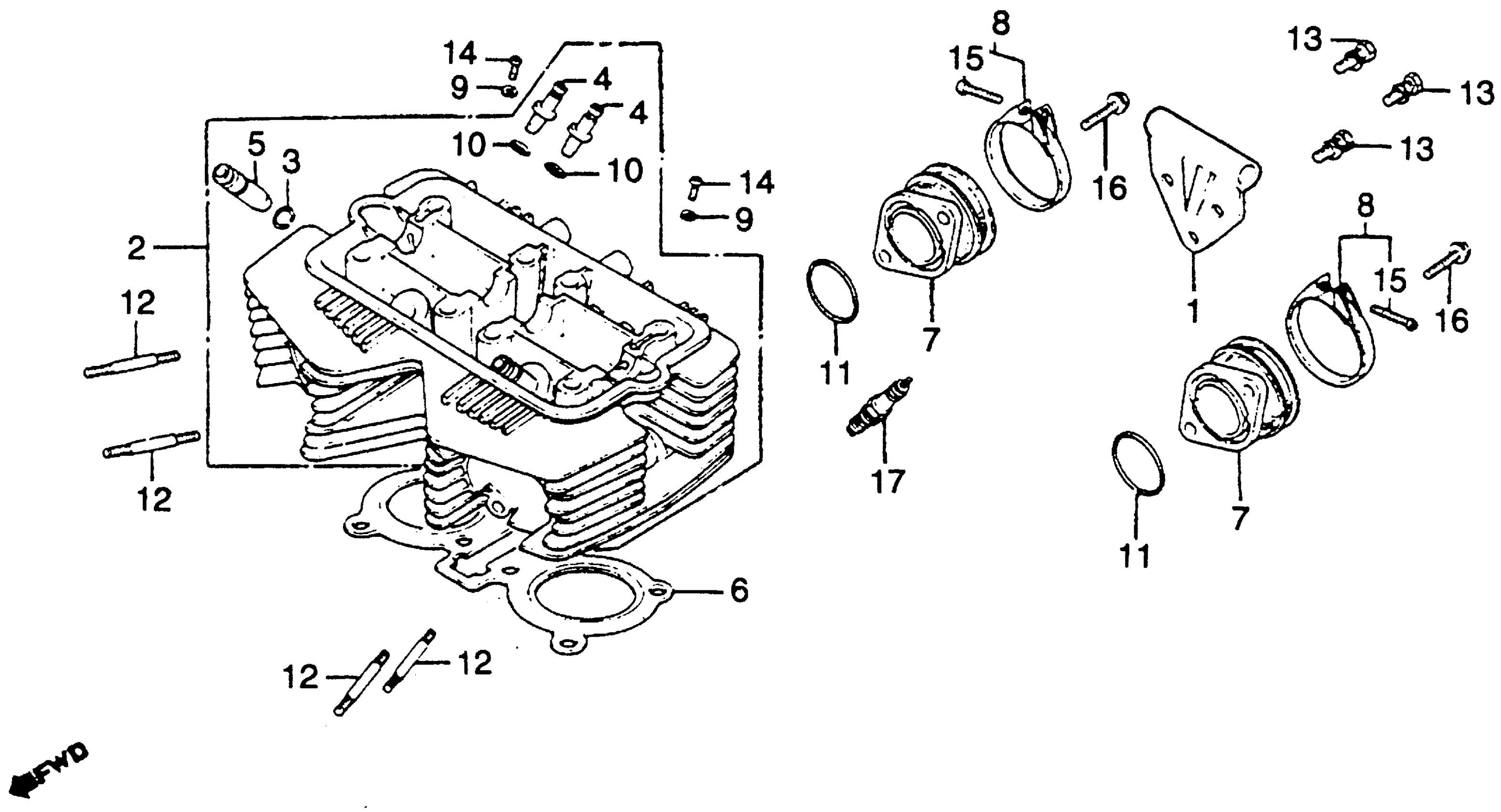

Honda CM400EA (80) MOTORCYCLE, JPN, VIN# NC01-4000009 TO NC01-4009398 CYLINDER HEAD Diagram

#

Description
Price

1

PLATE, ENGINE HANGER (NOT AVAILABLE)

11851-413-000

Unavailable

3

CLIP, VALVE GUIDE

12211-250-310

$4.00

4

GUIDE, VALVE This part replaces 12021-426-405.

12204-KW1-405

$10.49

4

GUIDE, VALVE This part replaces 12231-413-305.

12204-KW1-405

$10.49

5

GUIDE, EX. VALVE

12241-413-305

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-003.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-004.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-013.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-413-014.

12251-413-306

Unavailable

6

GASKET, CYLINDER HEAD

12251-413-306

Unavailable

7

INSULATOR, CARBURETOR

16211-447-670

Unavailable

8

BAND, INSULATOR

16219-ME9-000

$9.24

8

BAND, INSULATOR This part replaces 16223-413-000.

16219-ME9-000

$9.24

9

WASHER, SEALING (5MM)

90452-323-000

$1.52

10

O-RING (10X1.6)

91301-200-000

$2.80

11

O-RING (40X2.4)

91325-413-830

$7.83

12

BOLT, STUD (6X65) This part replaces 92700-06065.

92700-06065-0B

$1.30

12

BOLT, STUD (6X65)

92700-06065-0B

$1.30

13

BOLT-WASHER (8X20)

93482-08020-08

$1.88

14

SCREW, PAN (5X8)

93500-05008-0H

$0.83

15

SCREW, PAN (5X20)

93500-05020-0G

$0.75

16

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.64

16

BOLT, FLANGE (6X18)

96001-06018-00

$1.64

17

SPARK PLUG (D7EA) (NGK)

98069-57717

$2.16

17

SPARK PLUG (X22ES-U) (DENSO)

98069-57727

Unavailable

17

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.16

17

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$1.94

17

SPARK PLUG (D9EA) (NGK)

98069-59717

$2.16

17

SPARK PLUG (X27ES-U) (DENSO)

98069-59727

Unavailable
