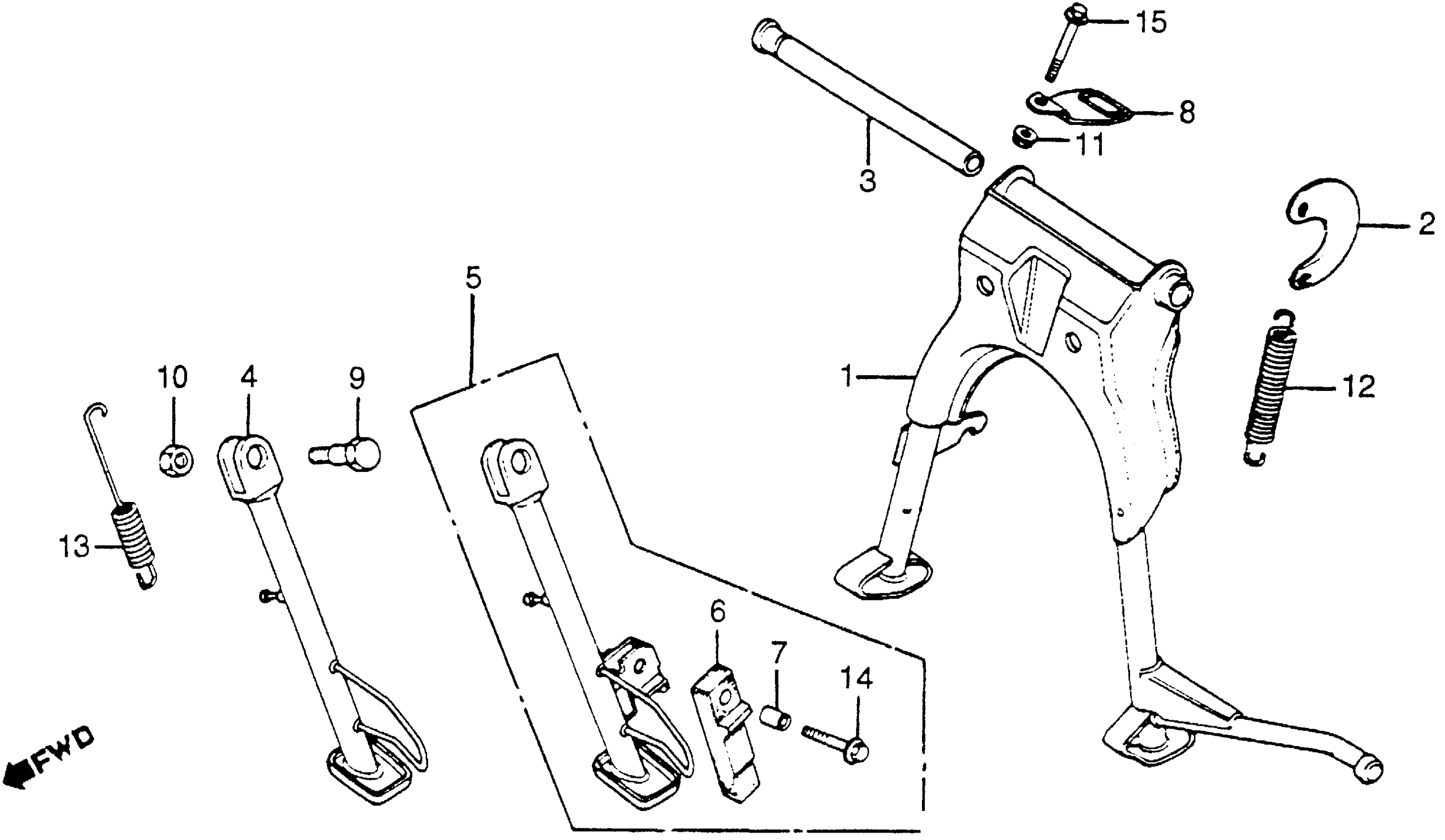

Honda CM400CA (81) CUSTOM, JPN, VIN# JH2NC012-BM000001 STAND Diagram

#

Description
Price

1

STAND, MAIN

50500-447-000

Unavailable

2

PLATE, MAIN STAND SPRING

50523-413-000

Unavailable

3

SHAFT, MAIN STAND PIVOT (NOT AVAILABLE)

50526-413-000

Unavailable

5

STAND ASSY., SIDE (NOT AVAILABLE)

50540-447-770

Unavailable

6

RUBBER, STAND

50548-356-700

$10.50

7

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

8

GUIDE, OVERFLOW TUBE (LOWER) (NOT AVAILABLE)

50730-414-000

Unavailable

9

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

10

NUT, HEX. (10MM)

94030-10000

$1.49

11

NUT, FLANGE (6MM)

94050-06080

$1.49

12

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$4.08

12

SPRING G, MAIN STAND

95014-71702

$4.08

13

SPRING D, SIDE STAND

95014-72402

$2.92

14

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

14

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

15

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

15

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
