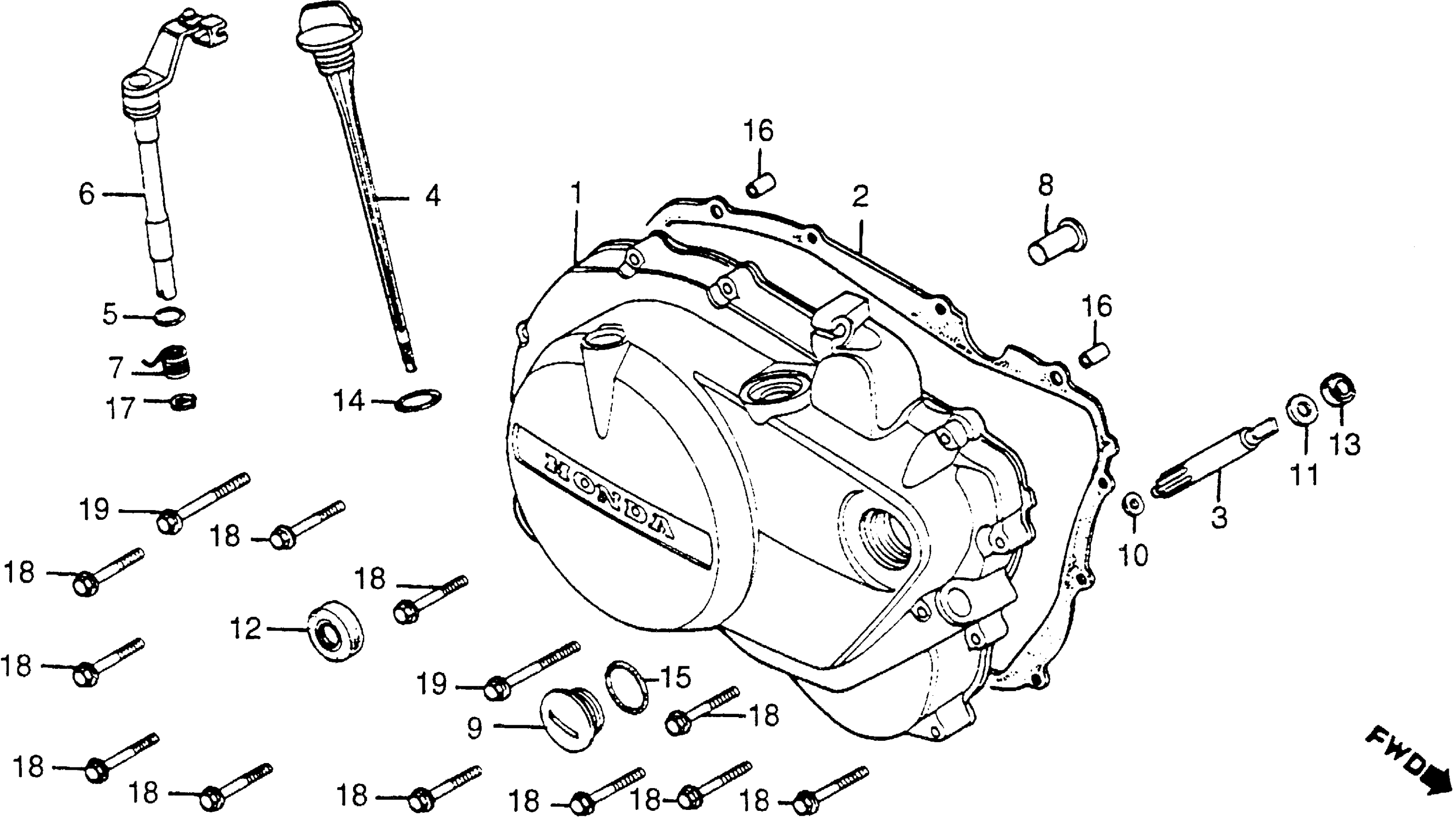

Honda CM400CA (81) CUSTOM, JPN, VIN# JH2NC012-BM000001 CM400C/TRIGHT CRANKCASE COVER 79-81 Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-443-840

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11393-MC0-000.

11393-MC0-010

$18.61

GASKET, R. CRANKCASE COVER

11393-MC0-010

$18.61

GASKET, R. CRANKCASE COVER This part replaces 11393-413-000.

11393-MC0-010

$18.61

GEAR, TACHOMETER (NOT AVAILABLE)

12431-413-781

Unavailable

DIPSTICK, OIL This part replaces 15650-413-000.

15650-443-790

Unavailable

DIPSTICK, OIL

15650-443-790

Unavailable

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.57

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.57

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.57

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.57

O-RING (11.8X2.4)

91320-MJ6-003

$2.79

LEVER, CLUTCH (NOT AVAILABLE)

22810-413-790

Unavailable

SPRING, CLUTCH LEVER

22815-413-000

$3.08

ROD, CLUTCH LIFTER

22847-ME0-000

Unavailable

ROD, CLUTCH LIFTER This part replaces 22847-413-000.

22847-ME0-000

Unavailable

BOLT, SPECIAL (25MM)

90008-443-000

Unavailable

WASHER B, TACHOMETER (NOT AVAILABLE)

90446-611-920

Unavailable

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (22X3.0)

91307-425-003

$2.59

O-RING (25.4X2.4)

91307-703-000

Unavailable

PIN A, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
