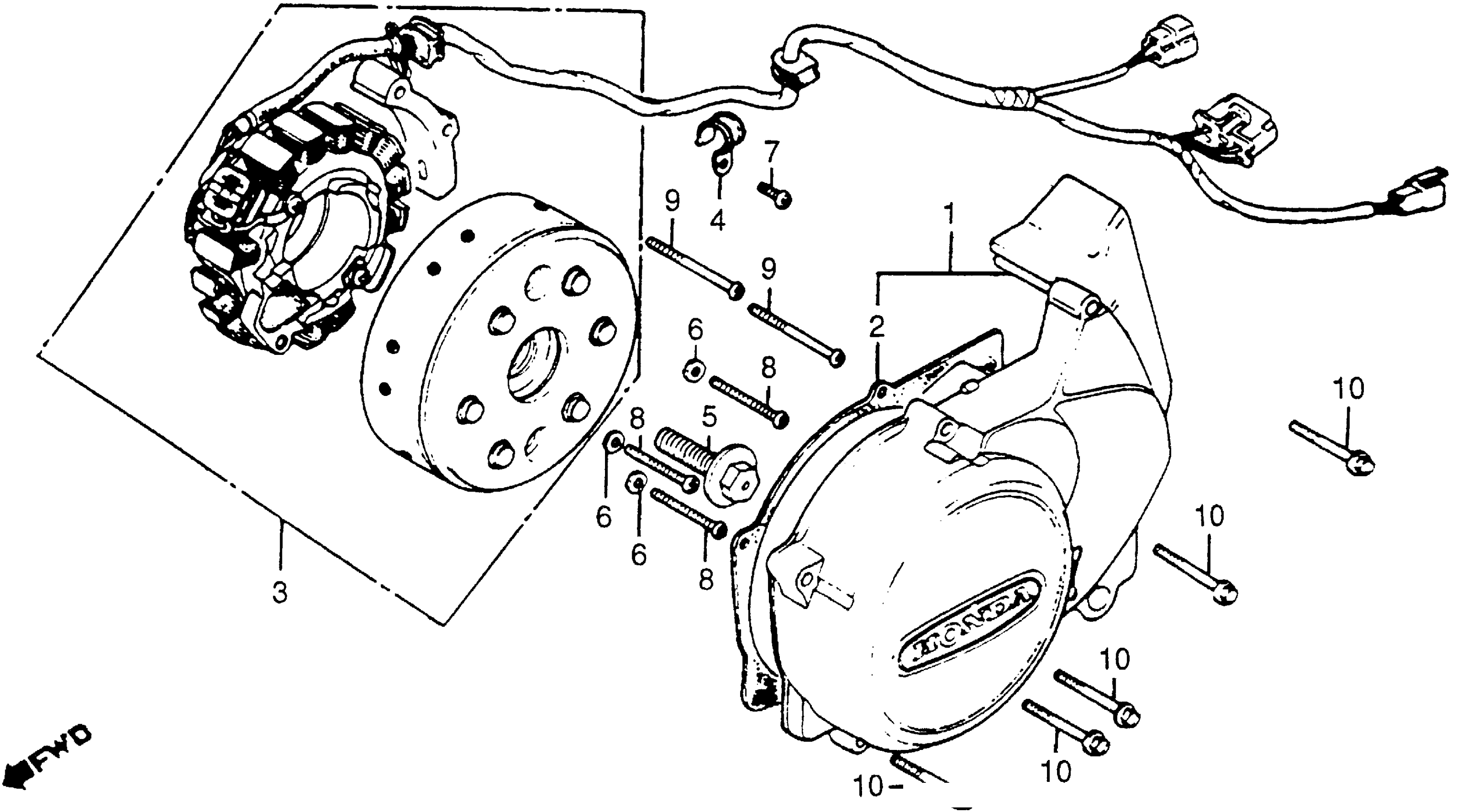

Honda CM400CA (81) CUSTOM, JPN, VIN# JH2NC012-BM000001 CM400C/TLEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11360-413-900

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11492-413-300.

11492-413-306

Unavailable

GASKET, L. CRANKCASE COVER

11492-413-306

Unavailable

ALTERNATOR ASSY. This part replaces 31100-413-035.

31100-443-720

Unavailable

CLIP, ALTERNATOR CABLE

32921-039-000

$4.75

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

WASHER, THRUST (12MM) (NOT AVAILABLE)

90457-333-000

Unavailable

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
