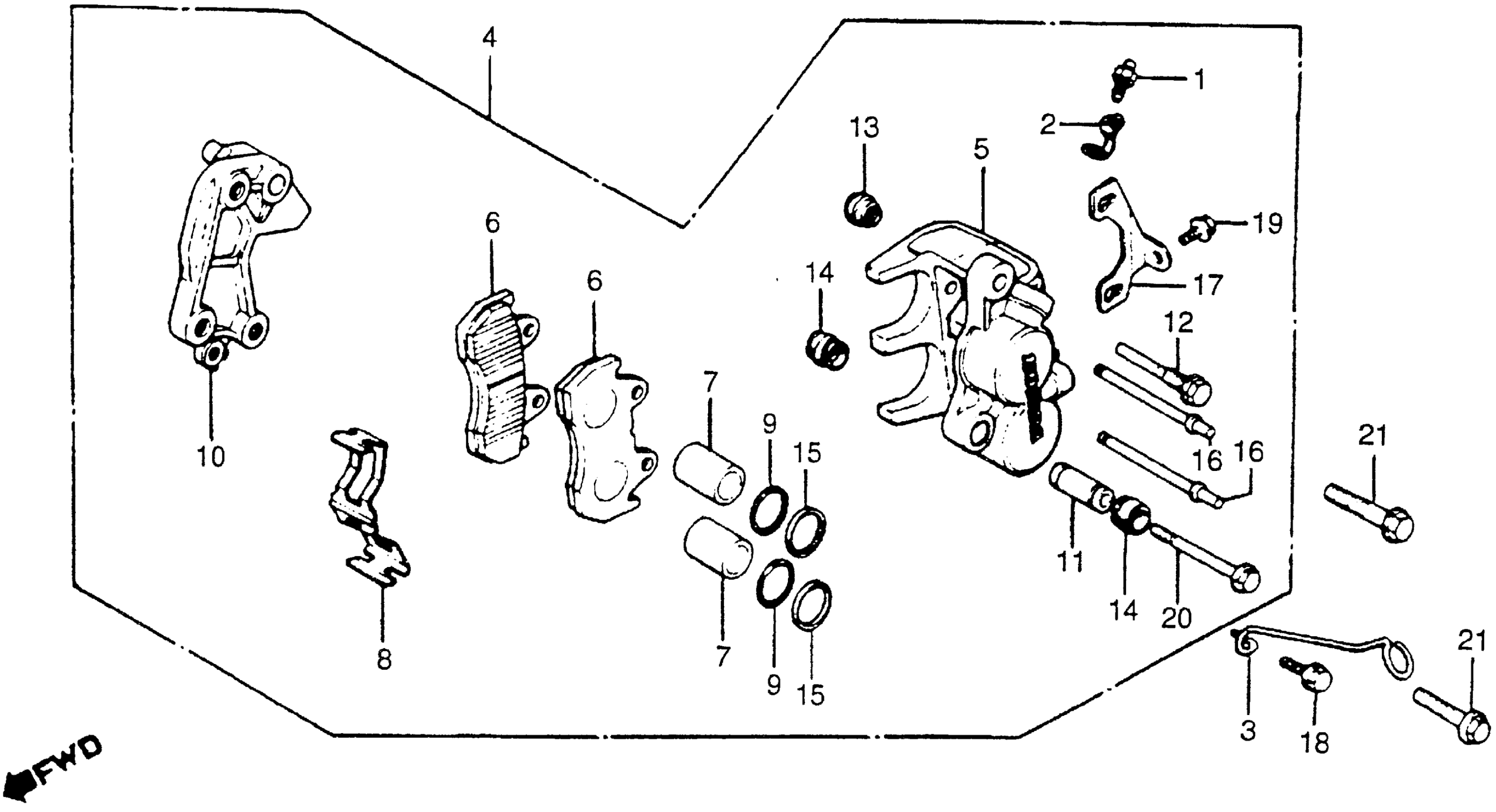

Honda CM400CA (81) CUSTOM, JPN, VIN# JH2NC012-BM000001 CM400C FRONT BRAKE CALIPER 81 Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-KN8-405.

06455-MM9-405

Unavailable

NI

PAD SET This part replaces 451A0-443-670.

06455-MM9-405

Unavailable

1

SCREW, BLEEDER

43352-568-003

$9.83

2

CAP, BLEEDER

43353-461-771

$4.83

3

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA3-000

Unavailable

4

CALIPER, L. FR. This part replaces 45100-445-631.

45100-445-407

Unavailable

4

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-445-632

Unavailable

4

CALIPER, L. FR. This part replaces 45100-445-633.

45100-445-407

Unavailable

4

CALIPER, L. FR. This part replaces 45100-445-634.

45100-445-407

Unavailable

5

CALIPER, L.

45101-MA3-006

Unavailable

6

PAD, FR. This part replaces 45105-KN8-026.

45105-MM9-782

$23.22

6

PAD, FR. This part replaces 45105-443-761.

45105-MM9-782

$23.22

6

PAD, FR. This part replaces 45105-443-762.

45105-MM9-782

$23.22

7

PISTON

45107-MA3-006

$46.13

8

SPRING, PAD

45108-MA3-006

$5.99

9

DUST SEAL

45109-166-006

$6.12

10

BRACKET, L. FR. This part replaces 45110-445-631.

45110-445-632

Unavailable

10

BRACKET, L. FR.

45110-445-632

Unavailable

11

SLEEVE

45111-MA3-006

$12.28

12

PIN, BOLT

45131-MA3-006

$16.14

13

BOOT B

45133-MA3-006

$5.21

14

BOOT, PIN

45133-166-016

$3.43

15

SEAL, PISTON

45209-166-006

$7.96

16

PIN, HANGER

45215-MA3-006

$11.79

17

PLATE

45217-MA3-006

$4.24

18

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.29

18

BOLT, HEX. (6X10)

92101-06010-0A

$1.29

19

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.16

19

BOLT, FLANGE (6X10)

95701-06010-00

$1.16

20

BOLT, FLANGE (8X50) This part replaces 95800-08050-07.

95801-08050-07

$1.71

20

BOLT, FLANGE (8X50)

95801-08050-07

$1.71

21

BOLT, FLANGE (10X32) This part replaces 95800-10032-00.

95801-10032-00

$2.80

21

BOLT, FLANGE (10X32)

95801-10032-00

$2.80
