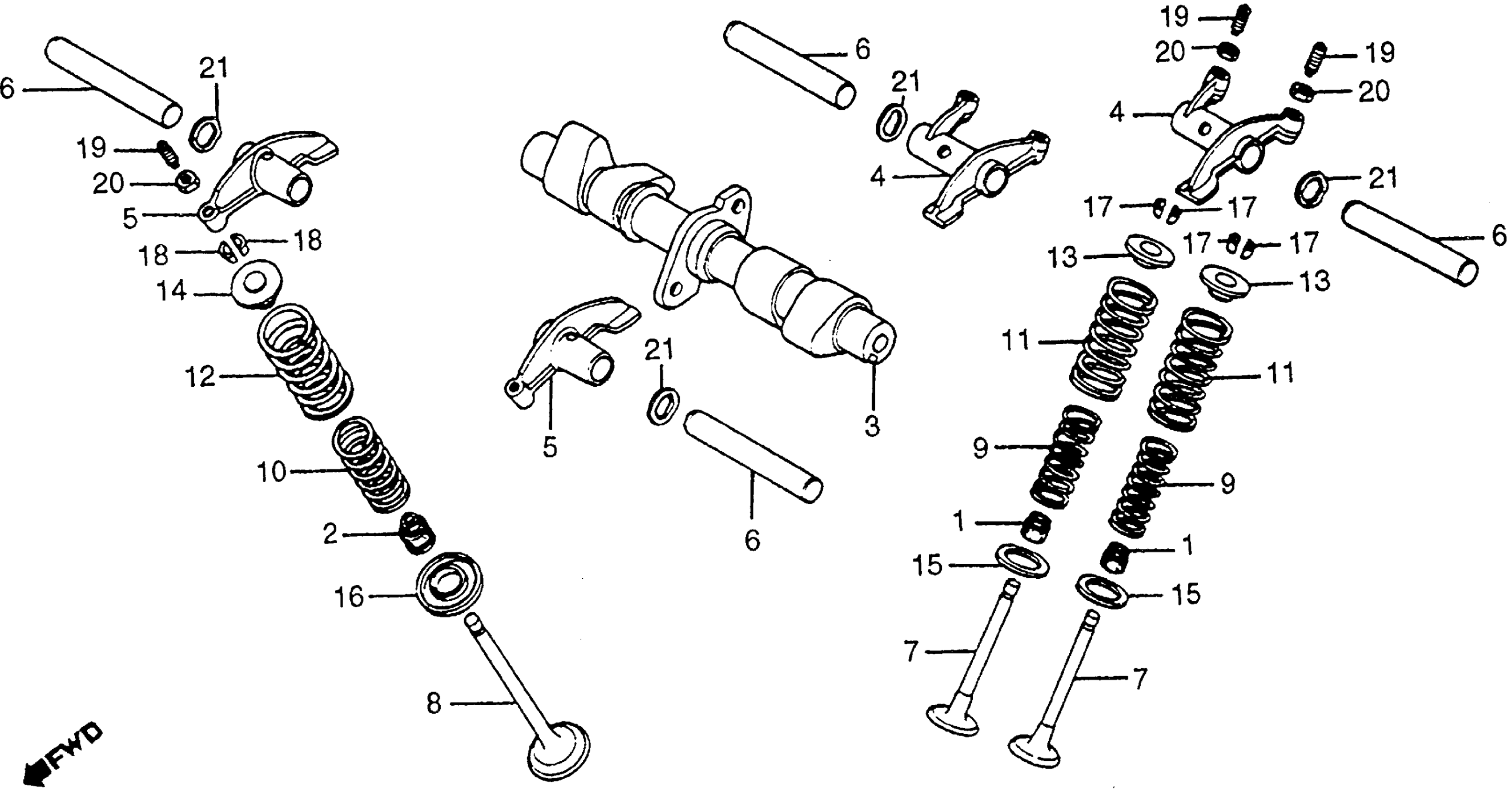

Honda CM400CA (81) CUSTOM, JPN, VIN# JH2NC012-BM000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

2

SEAL, VALVE STEM (ARAI)

12209-413-003

$14.98

3

CAMSHAFT This part replaces 14101-413-000.

14101-413-010

Unavailable

3

CAMSHAFT

14101-413-010

Unavailable

4

ARM, IN. VALVE ROCKER (NOT AVAILABLE)

14420-413-315

Unavailable

4

ARM, IN. VALVE ROCKER (NOT AVAILABLE) This part replaces 14420-413-830.

14420-413-315

Unavailable

4

ARM, IN. VALVE ROCKER (NOT AVAILABLE) This part replaces 14421-413-000.

14420-413-315

Unavailable

4

ARM, IN. VALVE ROCKER (NOT AVAILABLE) This part replaces 14421-413-010.

14420-413-315

Unavailable

5

ARM, EX. VALVE ROCKER (NOT AVAILABLE) This part replaces 14430-413-305.

14430-413-315

Unavailable

5

ARM, EX. VALVE ROCKER (NOT AVAILABLE)

14430-413-315

Unavailable

5

ARM, EX. VALVE ROCKER (NOT AVAILABLE) This part replaces 14430-413-830.

14430-413-315

Unavailable

5

ARM, EX. VALVE ROCKER (NOT AVAILABLE) This part replaces 14431-413-000.

14430-413-315

Unavailable

5

ARM, EX. VALVE ROCKER (NOT AVAILABLE) This part replaces 14431-413-010.

14430-413-315

Unavailable

5

ARM, EX. VALVE ROCKER (NOT AVAILABLE) This part replaces 14431-413-020.

14430-413-315

Unavailable

6

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-413-000

Unavailable

7

VALVE, IN.

14711-413-000

$36.89

8

VALVE, EX.

14721-413-000

Unavailable

9

SPRING, IN. VALVE (INNER) (NOT AVAILABLE)

14751-413-000

Unavailable

10

SPRING, EX. VALVE (INNER) (NOT AVAILABLE)

14752-413-000

Unavailable

11

SPRING, IN. VALVE (OUTER) (NOT AVAILABLE)

14761-413-000

Unavailable

12

SPRING, EX. VALVE (OUTER) (NOT AVAILABLE)

14762-413-000

Unavailable

13

RETAINER, VALVE SPRING

14771-107-020

$7.99

14

RETAINER, VALVE SPRING

14771-413-000

Unavailable

15

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

16

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-413-000

Unavailable

17

COTTER, VALVE (SANKO)

14781-107-003

$2.55

17

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

18

COTTER, VALVE

14781-410-000

Unavailable

19

SCREW, TAPPET ADJ.

90012-426-000

$5.94

20

NUT, TAPPET ADJ. This part replaces 90205-300-000.

90206-250-000

$2.94

20

NUT, TAPPET ADJ.

90206-250-000

$2.94

21

WASHER, WAVE (12MM)

90402-428-000

$2.20
