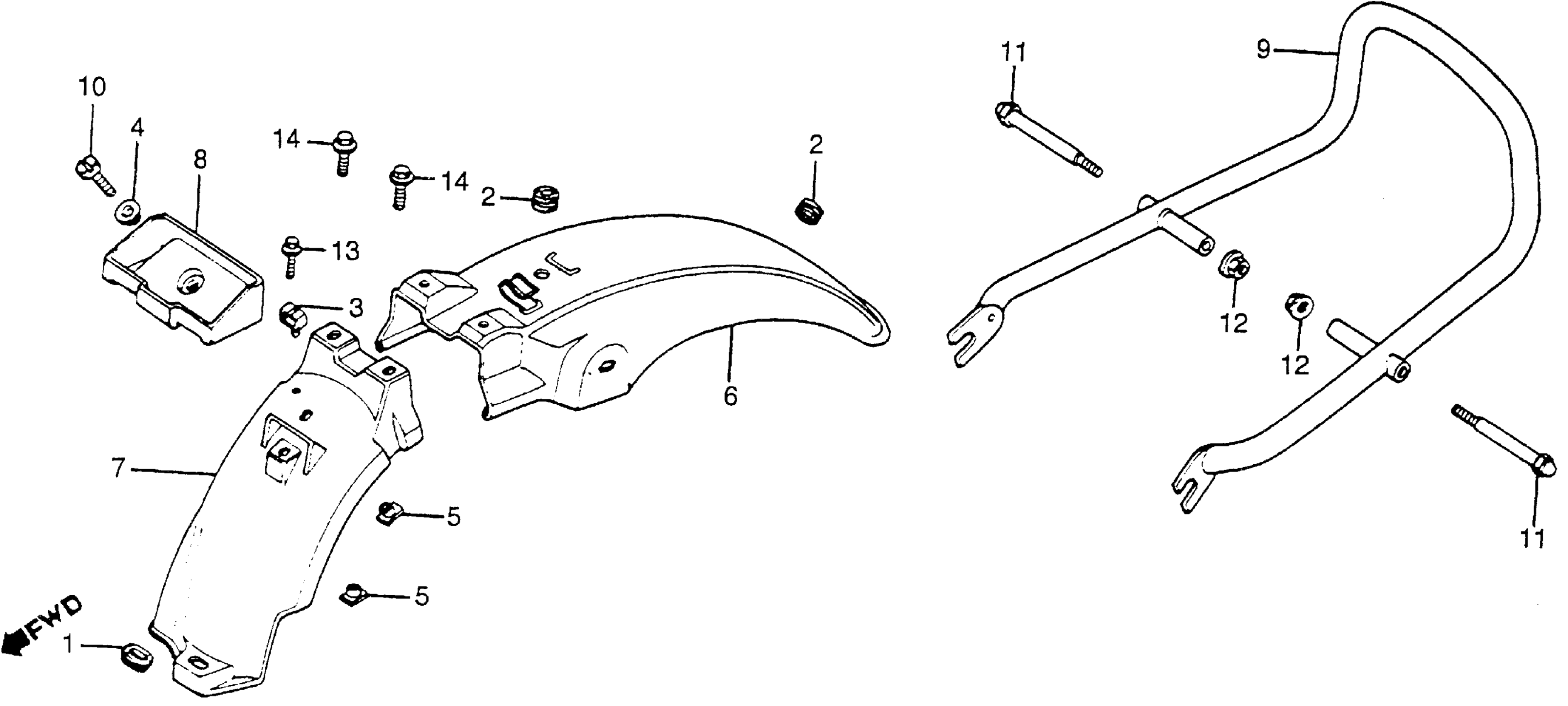

Honda CM400AA (81) HONDAMATIC, JPN, VIN# JH2NC020-BM200001 REAR FENDER + BUMPER Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

GROMMET, WIRE HARNESS

32983-447-000

$2.92

3

GROMMET, CABLE

32985-300-000

$3.35

4

COLLAR, CHAIN CASE

40514-310-000

$6.26

5

NUT, HEADLIGHT SETTING This part replaces 61304-162-003.

61304-162-013

$3.47

5

NUT, HEADLIGHT SETTING

61304-162-013

$3.47

6

FENDER, RR. This part replaces 80100-447-000.

80100-447-670

Unavailable

6

FENDER, RR.

80100-447-670

Unavailable

7

FENDER B, RR. (NOT AVAILABLE)

80101-447-000

Unavailable

8

TRAY, TOOL (NOT AVAILABLE)

83501-447-000

Unavailable

9

BUMPER, RR. (NOT AVAILABLE)

84101-447-000

Unavailable

10

BOLT, RECESSED (6X16) This part replaces 92300-06016.

92301-06016-0A

$1.64

10

BOLT, RECESSED (6X16) This part replaces 92300-06016-0A.

92301-06016-0A

$1.64

10

BOLT, RECESSED (6X16)

92301-06016-0A

$1.64

11

BOLT, CAP (8X80)

92600-08080-0B

Unavailable

12

NUT, FLANGE (8MM)

94050-08080

$1.49

13

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

13

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

14

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

14

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

14

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49
