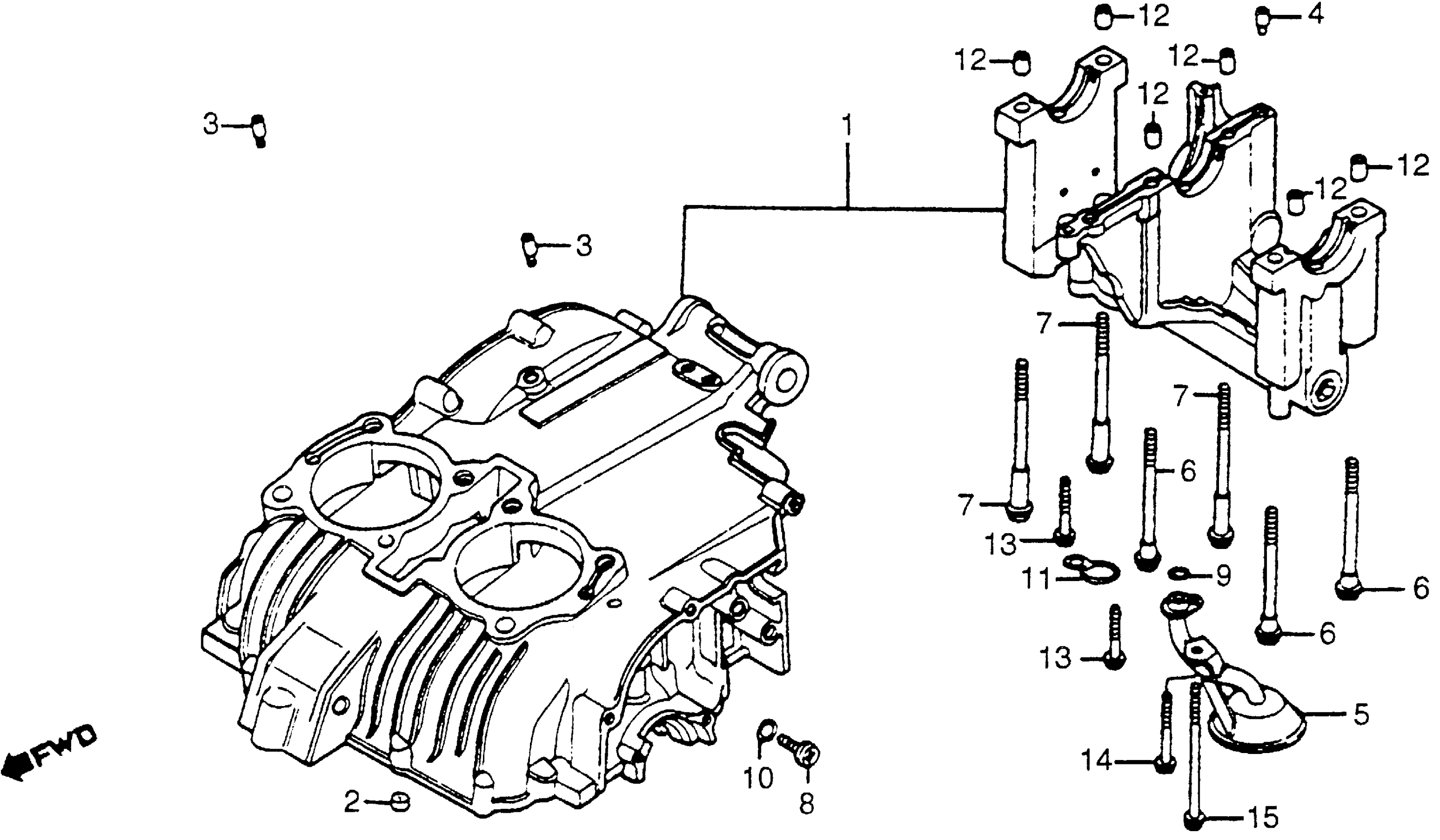

Honda CM400AA (81) HONDAMATIC, JPN, VIN# JH2NC020-BM200001 CRANKCASE SET Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11000-443-030.

11000-443-040

Unavailable

1

CRANKCASE SET

11000-443-040

Unavailable

2

ORIFICE (2MM) (NOT AVAILABLE)

11901-413-000

Unavailable

3

VALVE, OIL CONTROL ORIFICE

12901-413-000

Unavailable

4

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12902-413-000

Unavailable

5

STRAINER, OIL

15141-413-010

Unavailable

6

BOLT, BEARING CAP

90002-611-000

Unavailable

7

BOLT, FLANGE (10X120) This part replaces 90009-371-005.

90009-371-015

$10.71

7

BOLT, FLANGE (10X120)

90009-371-015

$10.71

8

BOLT, SEALING (8MM) (NOT AVAILABLE)

90081-044-000

Unavailable

9

O-RING (15X2.5)

91302-377-000

$5.31

10

O-RING (8X1.5) (NOT AVAILABLE)

91307-283-000

Unavailable

11

O-RING (24X1.5)

91307-413-005

Unavailable

12

PIN A, DOWEL (12X20)

94301-12200

$2.29

13

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

13

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

14

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

14

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

14

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

15

BOLT, FLANGE (6X115) This part replaces 95700-06115-00.

95701-06115-00

$3.09

15

BOLT, FLANGE (6X115)

95701-06115-00

$3.09
