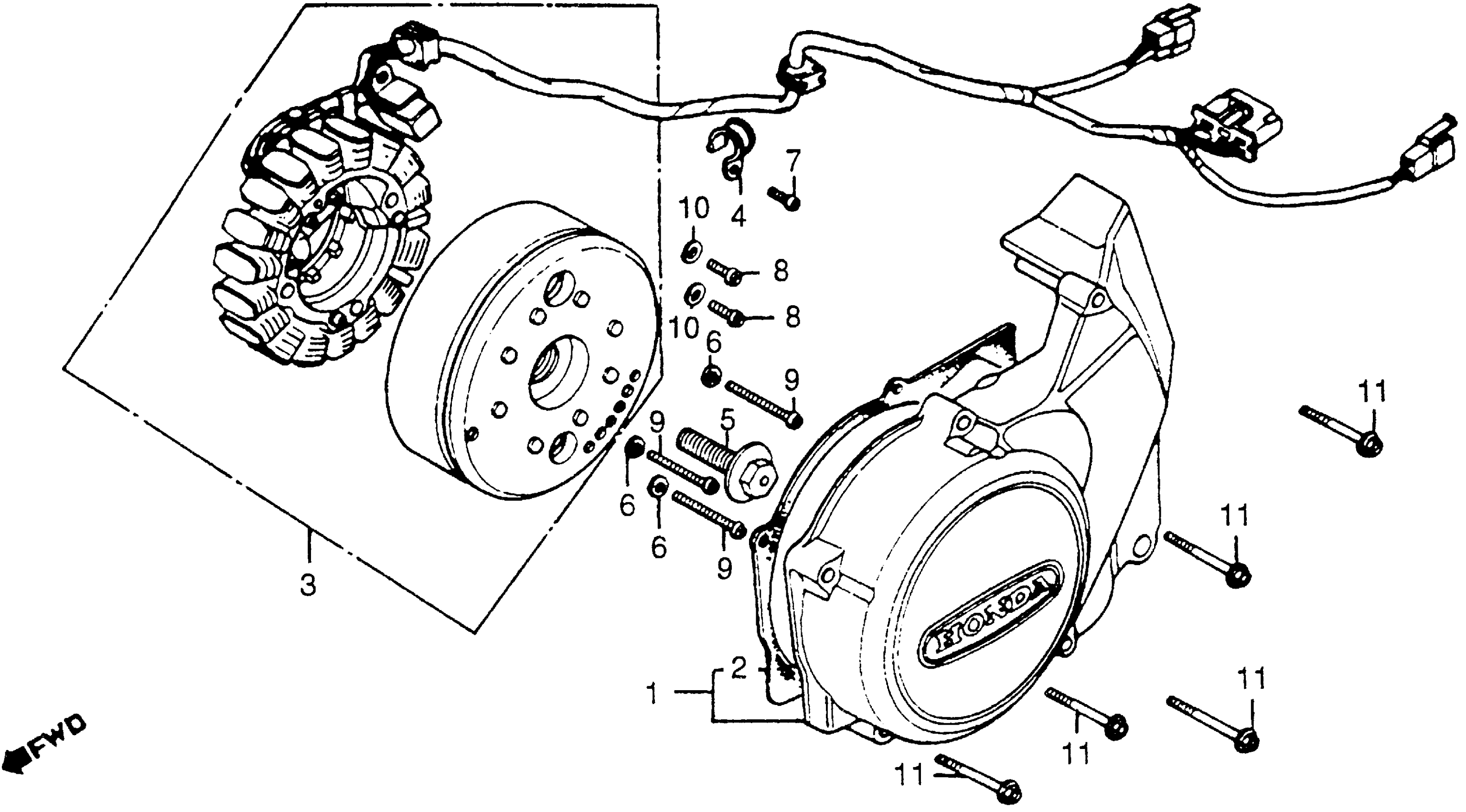

Honda CM400AA (81) HONDAMATIC, JPN, VIN# JH2NC020-BM200001 CM400A LEFT CRANKCASE COVER + ALTERNATOR 79-81 Diagram

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11360-448-000.

11360-448-010

Unavailable

COVER, L. CRANKCASE (NOT AVAILABLE)

11360-448-010

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11492-413-300.

11492-413-306

Unavailable

GASKET, L. CRANKCASE COVER

11492-413-306

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE) This part replaces 31100-417-024.

31100-417-014

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE) This part replaces 31100-417-034.

31100-417-014

Unavailable

CLIP, ALTERNATOR CABLE

32921-039-000

$4.75

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

WASHER, THRUST (12MM) (NOT AVAILABLE)

90457-333-000

Unavailable

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

SCREW, PAN (6X20)

93500-06020-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
