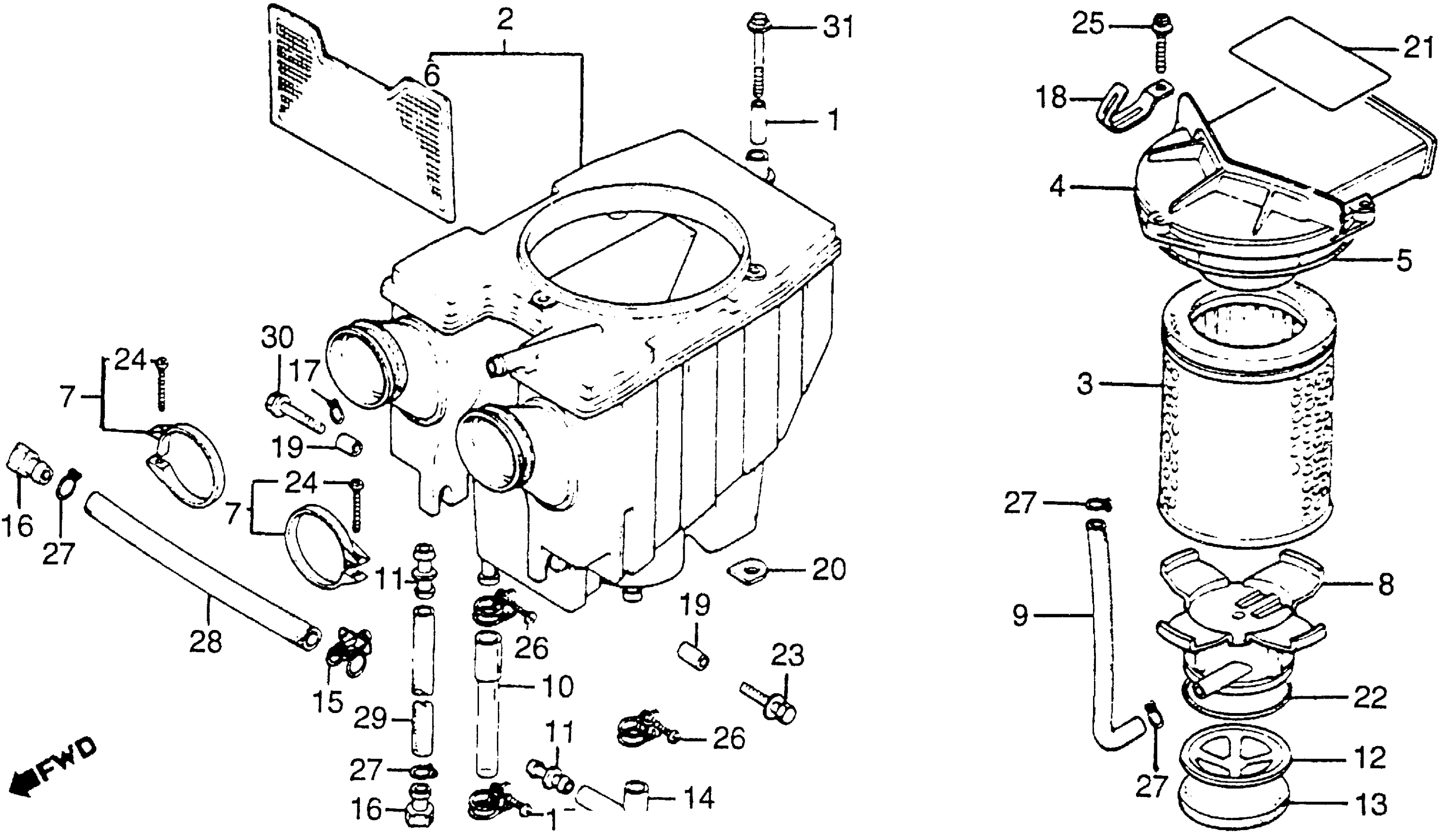

Honda CM400AA (81) HONDAMATIC, JPN, VIN# JH2NC020-BM200001 AIR CLEANER Diagram

#

Description
Price

1

COLLAR, AIR CLEANER BRACKET (NOT AVAILABLE)

17202-415-000

Unavailable

2

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-447-000

Unavailable

3

ELEMENT, AIR CLEANER This part replaces 17211-447-000.

17211-447-620

Unavailable

3

ELEMENT, AIR CLEANER

17211-447-620

Unavailable

4

DUCT, AIR CLEANER (NOT AVAILABLE)

17217-447-000

Unavailable

5

GASKET, AIR CLEANER DUCT (NOT AVAILABLE)

17219-447-000

Unavailable

6

FLAME TRAP, AIR CLEANER

17221-447-300

Unavailable

7

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-358-000.

95018-60250

$6.25

7

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

8

SEPARATOR, BREATHER

17261-447-000

Unavailable

9

TUBE, BREATHER (NOT AVAILABLE)

17269-447-000

Unavailable

10

TUBE, BREATHER (NOT AVAILABLE)

17335-415-670

Unavailable

11

JOINT, BREATHER TUBE

17359-419-670

$1.95

12

SEPARATOR A (NOT AVAILABLE)

17363-415-000

Unavailable

13

ELEMENT, SEPARATOR (NOT AVAILABLE)

17364-415-000

Unavailable

14

TUBE, DRAIN

17365-419-000

Unavailable

15

CLIP, TUBE (A13.5)

17369-419-670

Unavailable

16

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

CLIP, AIR HOSE (16)

18534-634-670

$5.76

18

CLIP C, WIRE HARNESS

32813-447-000

Unavailable

19

COLLAR, METER SETTING (NOT AVAILABLE)

37243-371-008

Unavailable

20

PATCH, RR. COWL

80504-415-610

Unavailable

21

MARK, ACCESSORY & LOADING CAUTION (NOT AVAILABLE)

87512-447-630

Unavailable

22

O-RING (63.5X2)

91355-415-000

$5.59

23

BOLT-WASHER (6X20)

93404-06020-00

$1.55

23

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

24

SCREW, PAN (4X25)

93500-04025-0A

$1.93

25

SCREW-WASHER (5X25)

93891-05025-08

$1.49

25

SCREW-WASHER (5X25) This part replaces 93891-05025-18.

93891-05025-08

$1.49

26

CLIP, TUBE (A16)

95002-01160

$4.05

27

CLIP, TUBE (B12.5)

95002-02130

$1.49

28

BULK HOSE, VACUUM (8X1000) (8X150)

95005-80001-20M

$23.91

29

BULK HOSE, VACUUM (8X1000) (8X260)

95005-80001-20M

$23.91

30

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

30

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

31

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

31

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
