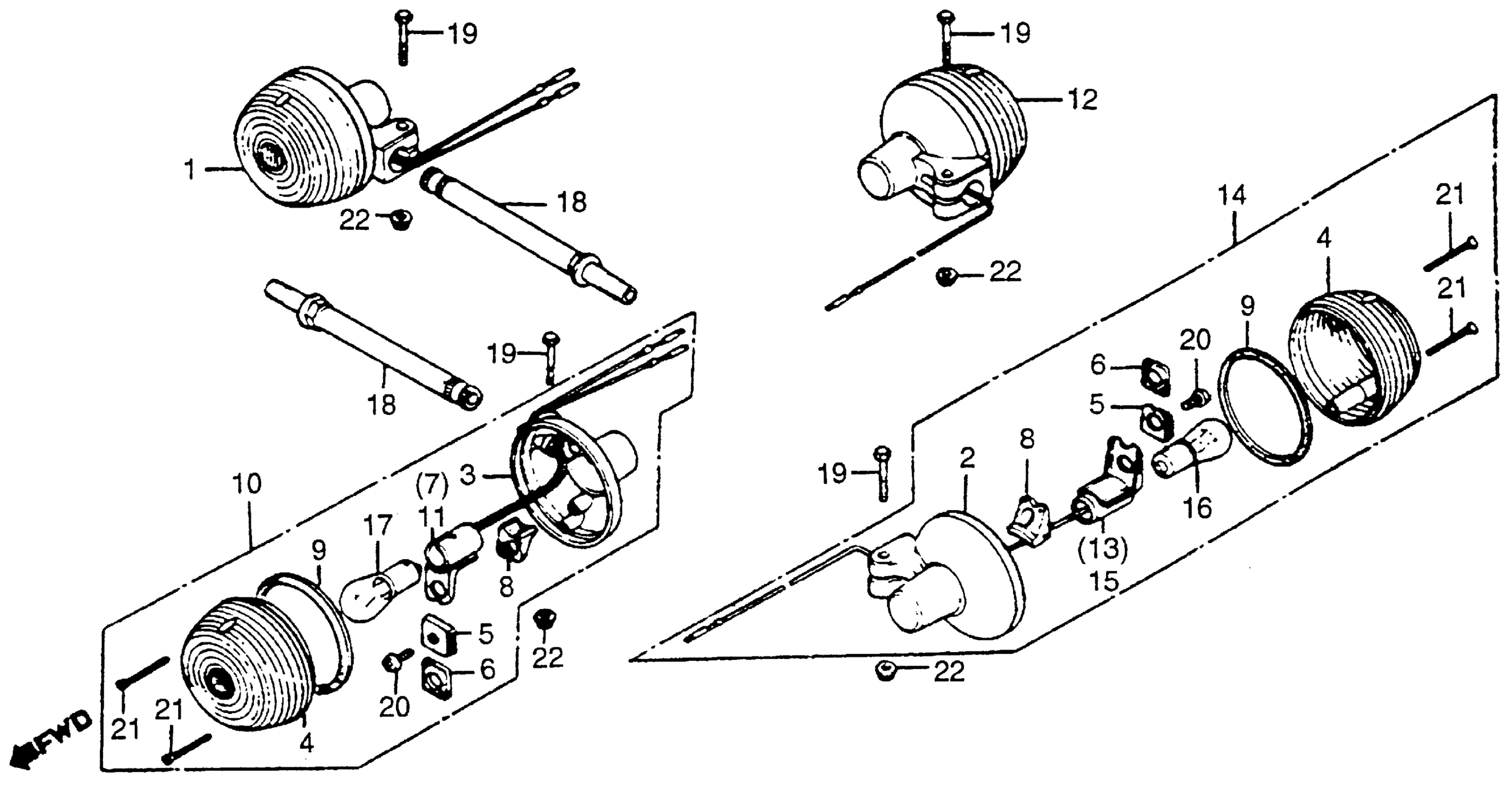

Honda CM400AA (80) HONDAMATIC, JPN, VIN# NC02-2100001 TO NC02-2106459 TURN SIGNAL Diagram

TURN SIGNAL ASSY., R. FR.

33400-447-870

Unavailable

BASE, TURN SIGNAL

33601-447-870

Unavailable

BASE, TURN SIGNAL

33401-447-870

Unavailable

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

PLATE, GROUND (NOT AVAILABLE)

33403-413-003

Unavailable

RUBBER, CUSHION (NOT AVAILABLE)

33404-413-003

Unavailable

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33405-413-671

Unavailable

RUBBER, TURN SIGNAL BASE CUSHION (NOT AVAILABLE)

33408-413-003

Unavailable

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

TURN SIGNAL ASSY., L. FR.

33450-447-870

Unavailable

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33455-413-671

Unavailable

TURN SIGNAL, R. RR.

33600-447-870

Unavailable

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33605-447-000

Unavailable

TURN SIGNAL ASSY., L. RR.

33650-447-870

Unavailable

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33655-447-000

Unavailable

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

BOLT, FR. TURN SIGNAL This part replaces 90154-413-003.

90154-413-013

Unavailable

BOLT, FR. TURN SIGNAL

90154-413-013

Unavailable

BOLT, HEX. (6X25) This part replaces 93000-06025-0G.

93101-06025-0G

$1.67

BOLT, HEX. (6X25)

93101-06025-0G

$1.67

SCREW, PAN (5X8)

93500-05008-0H

$1.49

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

NUT, FLANGE (6MM) This part replaces 18362-329-690.

94050-06070

$1.49

NUT, FLANGE (6MM) This part replaces 90203-PD1-000.

94050-06070

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49
