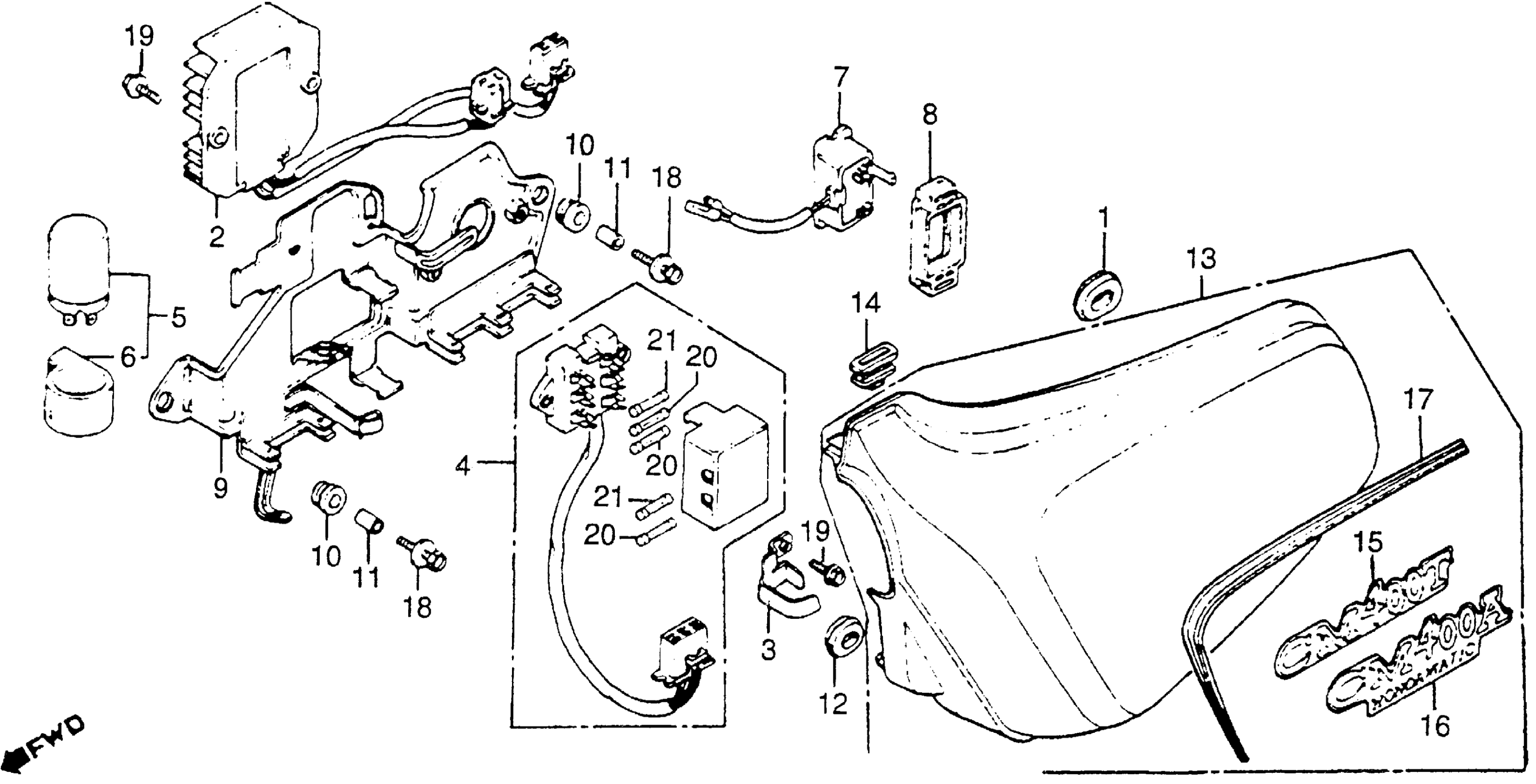

Honda CM400AA (80) HONDAMATIC, JPN, VIN# NC02-2100001 TO NC02-2106459 LEFT SIDE COVER + RECTIFIER Diagram

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

RECTIFIER ASSY., REGULATOR

31600-KV8-681

Unavailable

RECTIFIER ASSY., REGULATOR This part replaces 31600-413-008.

31600-KV8-681

Unavailable

CLIP, WIRE (NOT AVAILABLE)

32901-447-000

Unavailable

BOX ASSY., FUSE

38200-447-000

Unavailable

RELAY, TURN SIGNAL This part replaces 38300-405-701.

38300-415-405

Unavailable

RELAY, TURN SIGNAL This part replaces 38310-415-671.

38300-415-405

Unavailable

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

RELAY, CHANGE (NOT AVAILABLE)

38320-417-008

Unavailable

SUSPENSION, CHANGE RELAY

38321-448-000

Unavailable

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50330-447-000

Unavailable

RUBBER A, RR. FENDER

80105-061-000

$4.01

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

COLLAR A, RR. FENDER

80108-061-010

$4.12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER ASSY., L. SIDE *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE)

83700-448-770ZA

Unavailable

COVER ASSY., L. SIDE *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

83700-448-770ZB

Unavailable

GROMMET, SIDE COVER SETTING

83705-447-000

Unavailable

EMBLEM, SIDE COVER (A.M.) (NOT AVAILABLE)

87125-448-300

Unavailable

STRIPE, L. SIDE COVER *G102CU* (A.M.) (CANDY HOLLY GREEN) (NOT AVAILABLE)

87129-447-780ZA

Unavailable

STRIPE, L. SIDE COVER *R8CS* (A.M.) (CANDY PRESTO RED)

87129-447-780ZB

Unavailable

BOLT-WASHER (6X20)

93404-06020-00

$1.55

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

FUSE B (7A)

98200-20700

$1.49

FUSE B (15A)

98200-21500

$1.49
