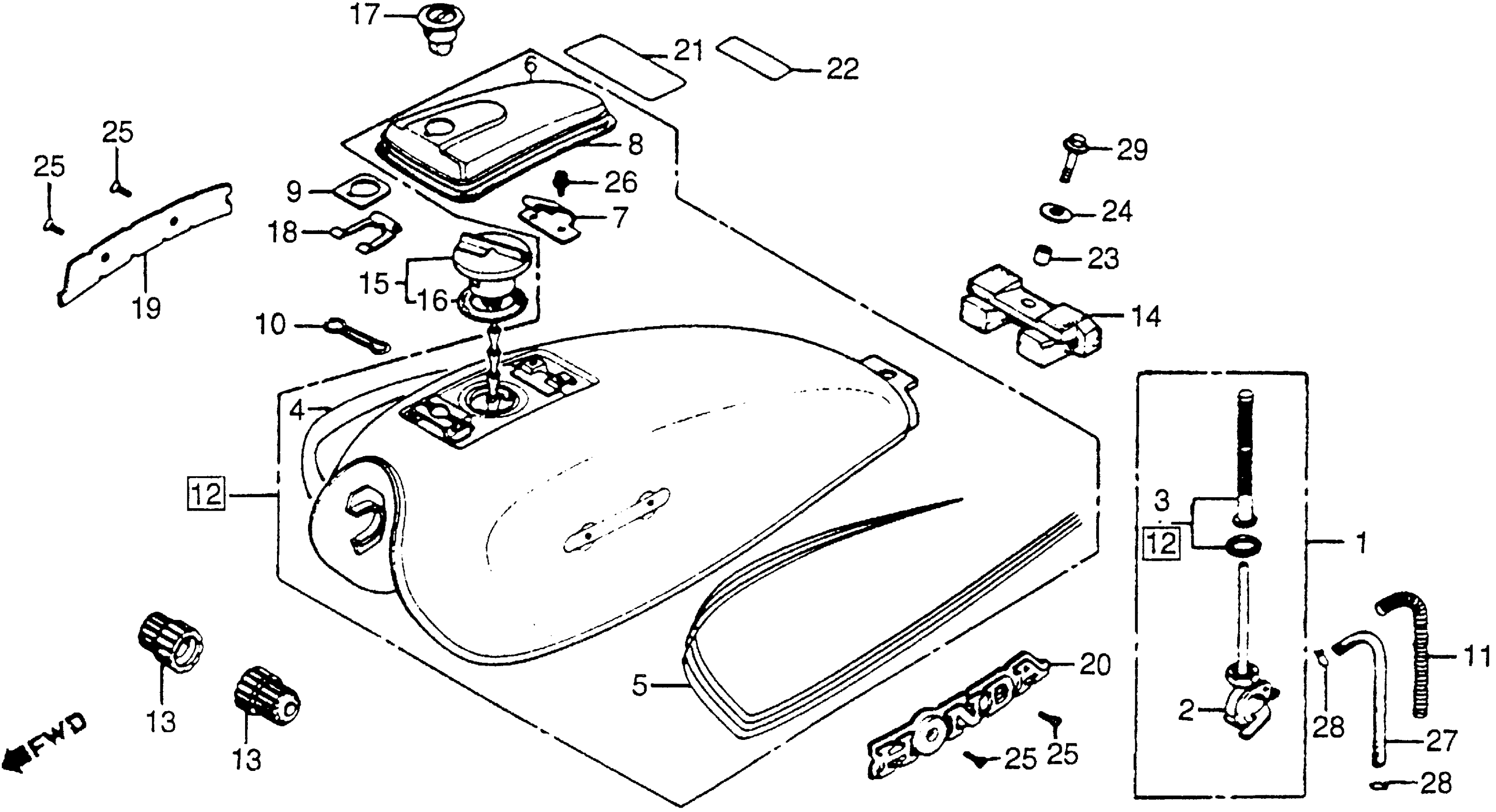

Honda CM400AA (80) HONDAMATIC, JPN, VIN# NC02-2100001 TO NC02-2106459 CM400A/TFUEL TANK 79-80 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-447-005.

16950-447-015

Unavailable

1

PETCOCK ASSY.

16950-447-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-434-005.

16951-434-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE)

16951-434-015

Unavailable

3

SCREEN SET, FUEL STRAINER (NOT AVAILABLE) This part replaces 16952-447-005.

16952-447-015

Unavailable

3

SCREEN SET, FUEL STRAINER (NOT AVAILABLE)

16952-447-015

Unavailable

4

STRIPE, R. FUEL TANK (TYPEA) (A.M.) (NOT AVAILABLE)

17508-447-780ZA

Unavailable

4

STRIPE, R. FUEL TANK (TYPEB) (A.M.) (NOT AVAILABLE)

17508-447-780ZB

Unavailable

5

STRIPE, L. FUEL TANK (TYPEA) (A.M.) (NOT AVAILABLE)

17509-447-780ZA

Unavailable

5

STRIPE, L. FUEL TANK (TYPEB) (A.M.)

17509-447-780ZB

Unavailable

6

LID, FUEL TANK *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

17511-447-000ZA

Unavailable

6

LID, FUEL TANK *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE)

17511-447-000ZB

Unavailable

7

SPRING A, FUEL TANK LID (NOT AVAILABLE)

17512-447-000

Unavailable

8

GASKET, FUEL TANK LID

17518-447-000

Unavailable

9

SPACER, FUEL TANK LID (NOT AVAILABLE)

17525-413-870

Unavailable

10

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

11

SPRING, FUEL TUBE COVER

17532-404-000

Unavailable

12

TANK SET, FUEL *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE) This part replaces 17540-447-780ZA.

17540-447-781ZA

Unavailable

12

TANK SET, FUEL *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE) This part replaces 17540-447-780ZB.

17540-447-781ZB

Unavailable

12

TANK SET, FUEL *G102CU* (CANDY HOLLY GREEN) (NOT AVAILABLE)

17540-447-781ZA

Unavailable

12

TANK SET, FUEL *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

17540-447-781ZB

Unavailable

13

RUBBER, FR. TANK (NOT AVAILABLE)

17611-447-000

Unavailable

14

RUBBER, RR. FUEL TANK

17613-413-000

$14.60

15

CAP, FUEL FILLER (NOT AVAILABLE)

17620-388-671

Unavailable

16

GASKET, FUEL FILLER CAP (NOT AVAILABLE) This part replaces 17682-383-670.

17682-383-671

Unavailable

16

GASKET, FUEL FILLER CAP (NOT AVAILABLE)

17682-383-671

Unavailable

17

LOCK, FILLER LID (TYPE1) (NOT AVAILABLE)

37220-414-781

Unavailable

18

SPRING, LOCK SET

37221-390-000

Unavailable

19

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-447-000

Unavailable

20

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-447-000

Unavailable

21

MARK, SAFETY RIDING CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87509-393-670A

Unavailable

22

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

22

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

22

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

23

COLLAR (8MM)

90324-300-000

$4.35

24

WASHER (8.3MM)

90534-011-000

$1.49

25

SCREW, OVAL (3X6)

93700-03006-0G

$1.49

26

SCREW-WASHER (4X6)

93892-04006-00

$1.49

27

BULK HOSE, FUEL (5.5X3000) (5.5X130)

95001-55003-60M

$47.32

28

CLIP, TUBE (B10)

95002-02100

$1.90

29

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

29

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
