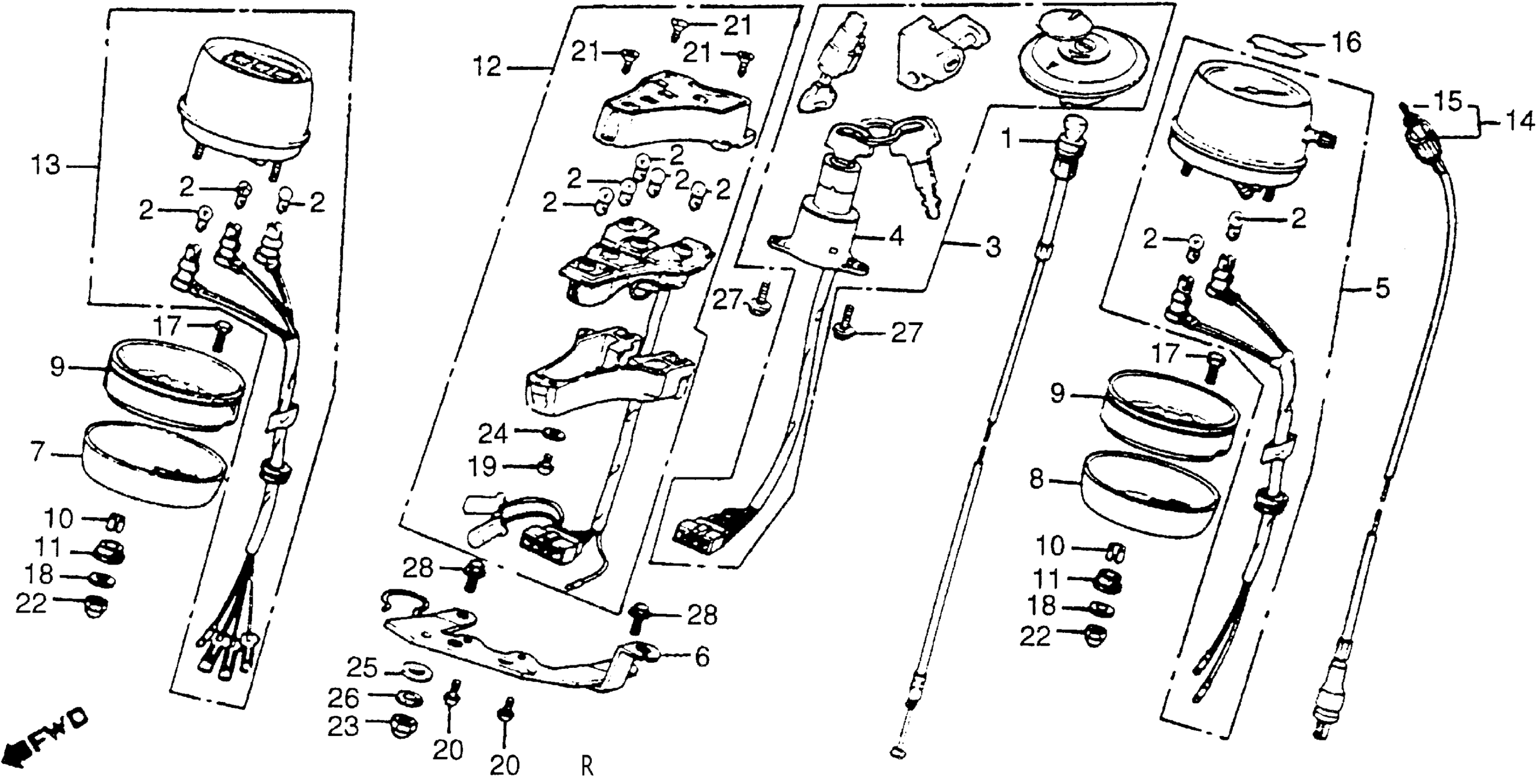

Honda CM400AA (80) HONDAMATIC, JPN, VIN# NC02-2100001 TO NC02-2106459 CM400A KEY SET + SPEEDOMETER + TACHOMETER 79-81 Diagram

#

Description
Price

1

CABLE, CHOKE

17950-448-000

Unavailable

2

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

3

LOCK SET This part replaces 35010-413-000.

35010-413-010

Unavailable

3

LOCK SET

35010-413-010

Unavailable

4

SWITCH ASSY., COMBINATION

35100-413-007

Unavailable

5

SPEEDOMETER ASSY. (MPH/KPH) (NIPPON SEIKI) (NOT AVAILABLE) This part replaces 37200-448-770.

37200-448-632

Unavailable

6

BRACKET, INSTRUMENT (NOT AVAILABLE)

37211-447-000

Unavailable

7

RING, R. INSTRUMENT SETTING (NOT AVAILABLE)

37212-448-000

Unavailable

8

RING, L. METER SETTING

37213-447-000

$38.89

9

RUBBER, METER

37242-323-701

$17.26

10

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

11

RUBBER, METER SETTING

37244-307-670

$2.67

12

PILOT ASSY., COMBINATION (NOT AVAILABLE) This part replaces 37600-448-000.

37600-MC1-670

Unavailable

13

INDICATOR ASSY. (NOT AVAILABLE)

37650-448-671

Unavailable

14

CABLE ASSY., SPEEDOMETER

44830-KB4-700

Unavailable

14

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-010.

44830-KB4-700

Unavailable

14

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-610.

44830-KB4-700

Unavailable

14

CABLE ASSY., SPEEDOMETER This part replaces 44830-426-000.

44830-KB4-700

Unavailable

14

CABLE ASSY., SPEEDOMETER This part replaces 44830-447-000.

44830-KB4-700

Unavailable

14

CABLE ASSY., SPEEDOMETER This part replaces 44830-447-010.

44830-KB4-700

Unavailable

15

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE)

44831-415-610

Unavailable

16

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

17

BOLT, METER SETTING

90159-356-000

$4.58

18

WASHER (6.5X18)

90545-323-700

$1.89

19

SCREW, PAN (5X6)

93500-05006-0G

$1.49

20

SCREW, PAN (5X10)

93500-05010-0G

$1.49

21

SCREW, TAPPING (4X10)

93902-24280

Unavailable

22

NUT, CAP (6MM)

94021-06020

$1.73

23

NUT, CAP (8MM)

94021-08020-0S

$1.82

24

WASHER, FLAT (5MM)

94101-05700

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

28

BOLT, FLANGE (8X14) This part replaces 95700-08014-07.

95701-08014-07

$1.49

28

BOLT, FLANGE (8X14)

95701-08014-07

$1.49
