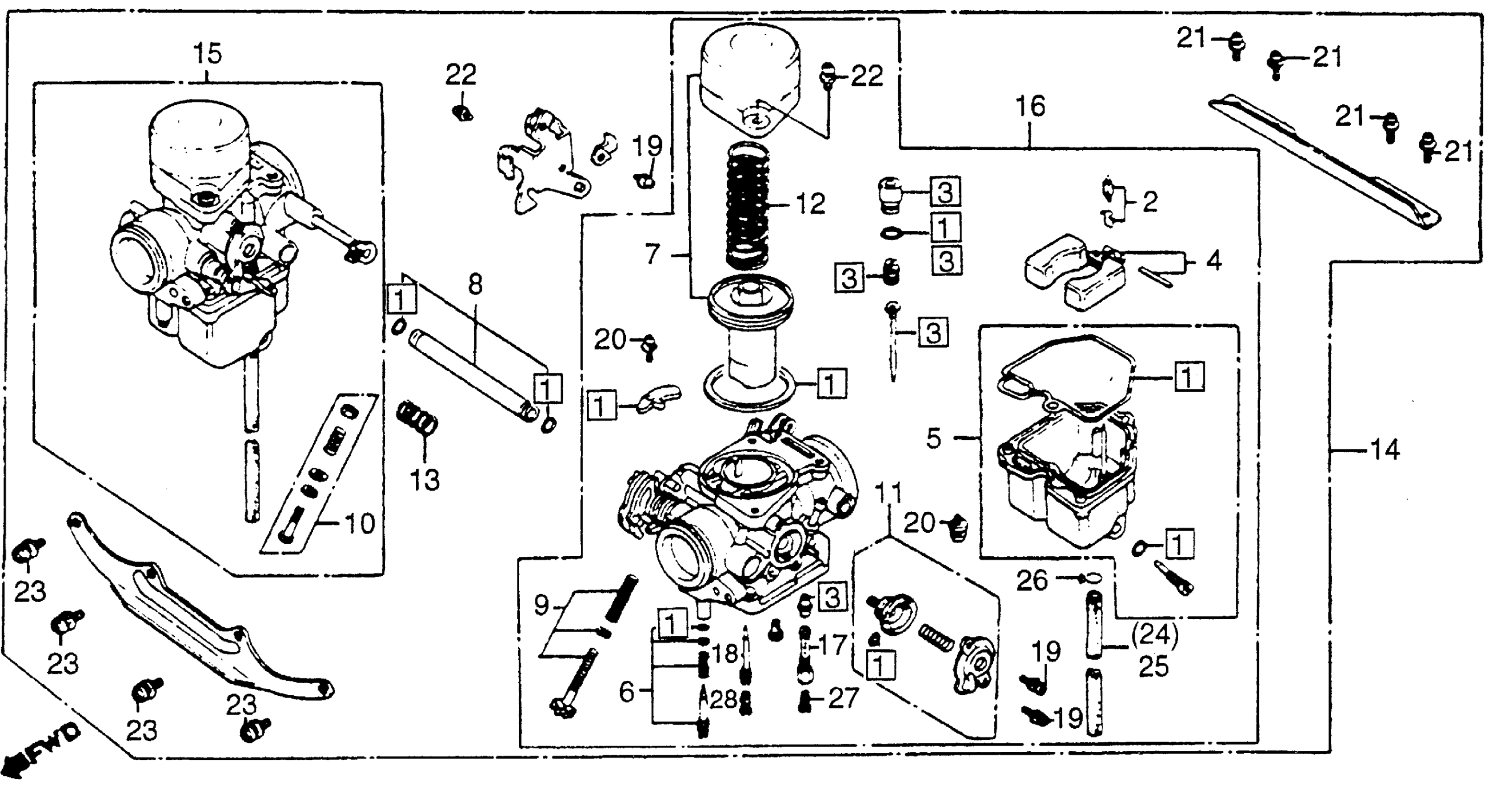

Honda CM400AA (79) HONDAMATIC, JPN, VIN# NC02-2000001 TO NC02-2005965 CM400A/TCARBURETOR 79 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-414-004.

16010-414-305

Unavailable

1

GASKET SET

16010-414-305

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-448-004

Unavailable

4

FLOAT SET

16013-679-005

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

5

CHAMBER SET, FLOAT

16015-425-871

Unavailable

6

SCREW SET A

16016-410-601

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-413-014.

16022-425-871

Unavailable

8

JOINT SET, FUEL (NOT AVAILABLE)

16026-413-004

Unavailable

9

SCREW SET B (NOT AVAILABLE)

16028-413-004

Unavailable

10

SCREW SET C

16029-PC6-005

Unavailable

10

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

11

VALVE SET, AIR CUT

16048-413-004

Unavailable

12

SPRING, VACUUM PISTON

16050-448-004

Unavailable

13

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

14

CARBURETOR ASSY. (NOT AVAILABLE)

16100-448-004

Unavailable

15

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-448-004

Unavailable

16

CARBURETOR ASSY., L.

16102-448-004

Unavailable

17

HOLDER, NEEDLE JET

16165-417-004

$24.74

17

HOLDER, NEEDLE JET This part replaces 16165-417-670.

16165-417-004

$24.74

18

NOZZLE, MAIN (NOT AVAILABLE)

16166-417-670

Unavailable

19

SCREW-WASHER (4X12)

93892-04012-08

$1.49

20

SCREW-WASHER (4X16)

93892-04016-08

$1.49

21

SCREW-WASHER (5X12)

93892-05012-08

$1.49

22

SCREW-WASHER (5X16)

93892-05016-08

$1.49

23

SCREW-WASHER (6X14)

93892-06014-08

$1.49

24

BULK HOSE, FUEL (3.5X3000) (3.5X360)

95001-35003-60M

$20.85

25

BULK HOSE, FUEL (3.5X3000) (3.5X480)

95001-35003-60M

$20.85

26

CLIP, TUBE (C6.5)

95002-35000

$1.49

27

JET, PRIMARY MAIN (#65)

99101-393-0650

Unavailable

28

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

28

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

28

JET (#110) This part replaces 99102-393-1100.

99101-MBA-1100

$9.11
